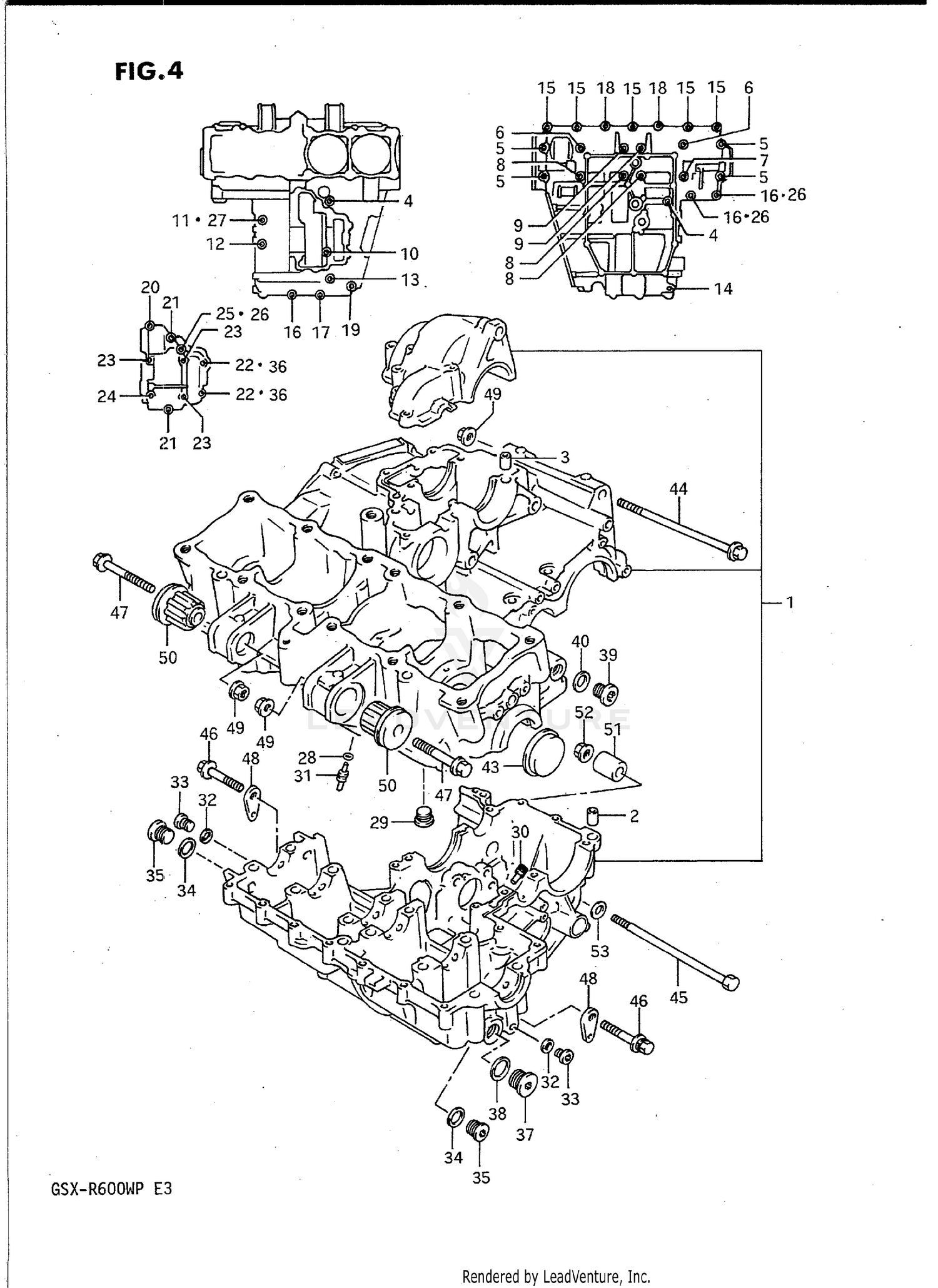

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11300-17843
Superseded by 11302-46876
|
$1,711.22 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11300-17846
Superseded by 11302-46876
|
$1,711.22 | ||
|
Unavailable |
|||
|
#2
PIN
09206-13004
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
04211-09129
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X105)
09103-06163
|
$2.09 | ||
|
Unavailable |
|||
|
#5
NO DESCRIPTION AVAILABLE
09103-09007
Superseded by 09103-09007-XC0
|
$5.53 | ||
|
Unavailable |
|||
|
#6
BOLT (9X95)
09103-09008
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (9X105)
09103-09009
|
$6.44 | ||
|
Unavailable |
|||
|
#8
BOLT (9X115)
09103-09010
|
$10.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (9X60)
09106-09001
|
$4.98 | ||
|
Unavailable |
|||
|
#10
BOLT
07110-06758
Superseded by 07130-0675B
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07110-08508
Superseded by 07130-0850A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07110-08608
Superseded by 07130-0860B
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07130-08808
Superseded by 07130-0880B
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01517-08605
Superseded by 01550-0860A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01517-06354
Superseded by 01550-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01517-06404
Superseded by 01550-0640A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01517-06408
Superseded by 01550-06407
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01517-06505
Superseded by 01550-0650A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01517-06655
|
$0.85 | ||
|
Unavailable |
|||
|
#20
BOLT
07110-06257
Superseded by 07130-06257
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
NO DESCRIPTION AVAILABLE
07110-06357
Superseded by 07130-06357
|
$2.80 | ||
|
Unavailable |
|||
|
#22
BOLT
07110-06408
Superseded by 07130-06407
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
07110-06508
Superseded by 07130-0650B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
07110-06608
Superseded by 07130-0660B
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (6X145)
09103-06062
|
$3.41 | ||
|
Unavailable |
|||
|
#26
.GASKET (6.2X13X1.2)
09168-06018
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG (18X8)
09248-18002
Superseded by 09248-18011
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET, OIL GALLERY MISSION
09493-24010
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, OIL GALLERY PISTON
09493-80008
|
$14.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET
09168-10002
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PLUG, OIL GALLERY
09248-10007
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET
09168-16002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLUG, OIL DRAIN
09248-16010
Superseded by 09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#36
GASKET
09168-06024
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLUG, LH
09248-22002
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#38
GASKET
09168-22002
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLUG, OIL GALLERY
09248-14010
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#40
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#42
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#42
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLUG, CRANKCASE LH
09241-37002
|
$19.97 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT (10X150)
09103-10139
Superseded by 09103-10078
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT (12X185)
09100-12028
|
$5.65 | ||
|
Unavailable |
|||
|
#45
BOLT (12X165)
09100-12043
|
$7.96 | ||
|
Unavailable |
|||
|
#46
BOLT
01987-10558
Superseded by 01580-1055B
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT
01517-10558
Superseded by 01550-10557
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT
11613-33C00
Superseded by 09159-10020
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#50
BUSH
11681-27A00
|
$31.75 | ||
|
Available to order. Add to View Price |
|||
|
#51
SPACER (L:27)
11611-40C01
|
$8.55 | ||
|
Unavailable |
|||
|
#51
SPACER
11611-19B11
Superseded by 11611-19B13
|
$13.54 | ||
|
Available to order. Add to View Price |
|||
|
#52
NUT
08319-31128
Superseded by 08319-3112A
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER
08322-11128
Superseded by 08322-01127
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
