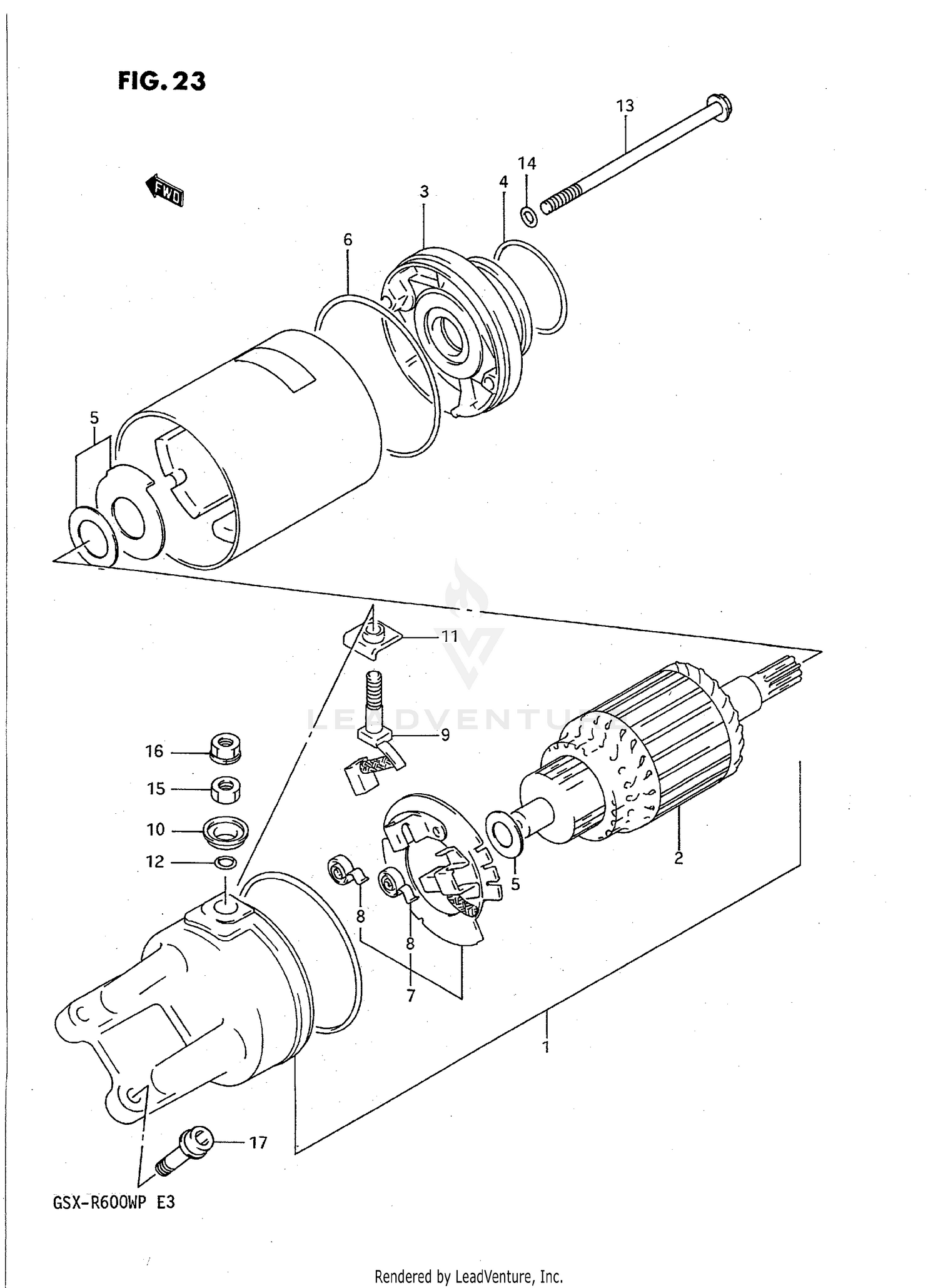

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR, STARTING
31100-17E00
Superseded by 31100-46E00
|
$442.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARMATURE
31310-17E00
|
$110.26 | ||
|
Unavailable |
|||
|
#3
HOUSING
31150-17E00
|
$55.36 | ||
|
Unavailable |
|||
|
#4
O RING
31156-48B00
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM SET
31170-43400
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O-RING
31264-44110
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRUSH HOLDER ASSY
31132-17E00
|
$48.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
31135-65010
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRUSH
31130-38300
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING (A)
31172-38300
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING (B)
31171-38300
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
.O-RING
31143-38300
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
31281-88C00
|
$7.85 | ||
|
Unavailable |
|||
|
#14
O RING
31156-38300
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
.NUT
08310-22067
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT
08361-35066
Superseded by 08361-3506A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
07120-06258
Superseded by 07120-06257
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
