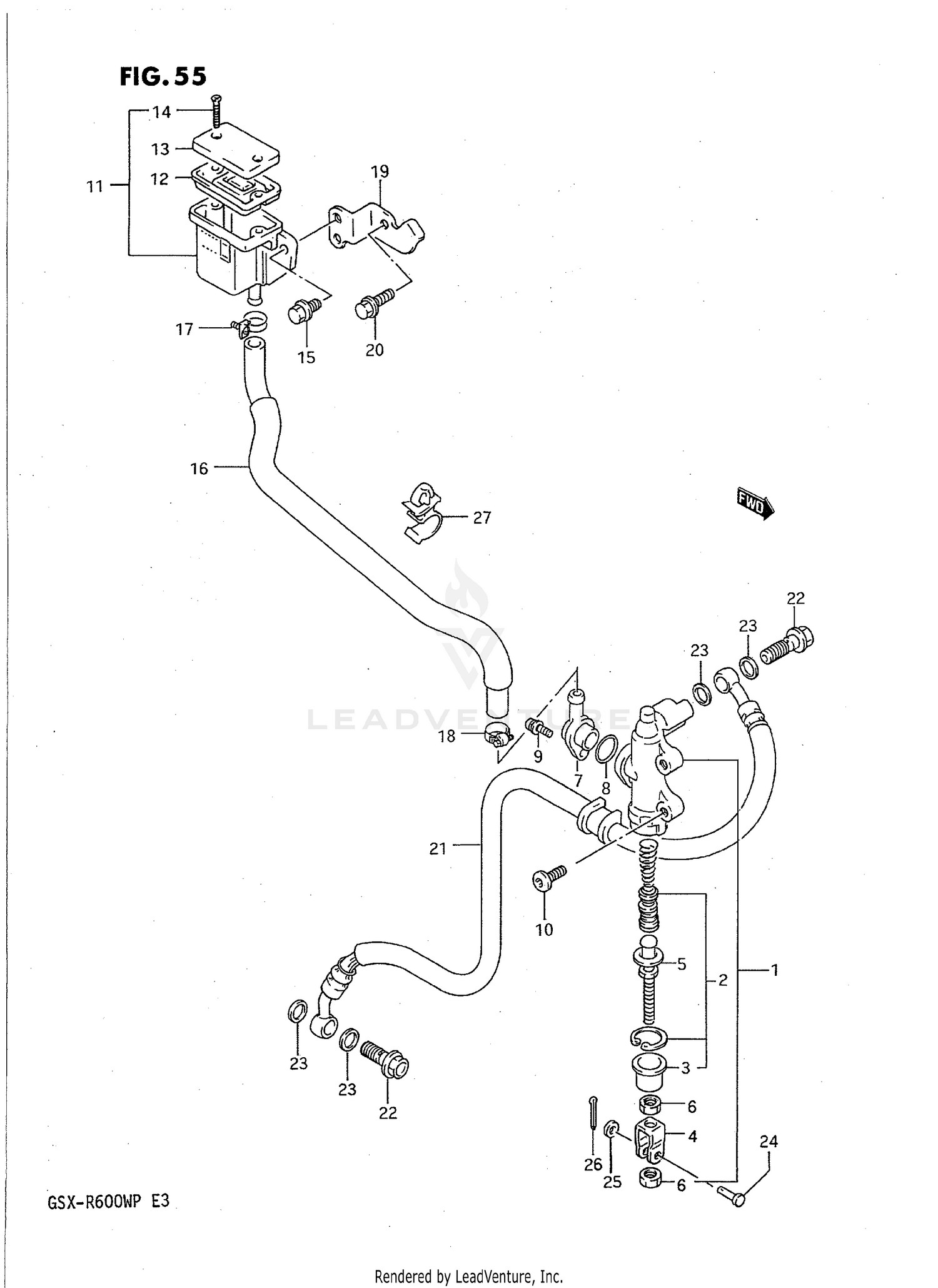

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-17E00
|
$206.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
69600-04820
Superseded by 69600-04821
|
$41.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
69691-00A00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
YOKE
69692-27A30
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, PUSH
69670-17E00
|
$25.34 | ||
|
Unavailable |
|||
|
#6
NUT
69693-05A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR
69672-05A00
|
$7.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O RING
69686-34200
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.SCREW
02112-74125
Superseded by 02112-7412A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (8X22)
09139-08009
|
$4.97 | ||
|
Unavailable |
|||
|
#11
TANK ASSY, REAR RESERVOIR
69740-24A01
|
$92.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
59667-04700
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
59669-05D00
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
69689-04A00
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01517-06128
Superseded by 01550-06127
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, RESERVOIR TANK
69731-17E00
|
$31.82 | ||
|
Unavailable |
|||
|
#17
CLAMP
09400-16302
Superseded by 09400-16304
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, LOWER
09402-15502
Superseded by 09402-17511
|
$5.39 | ||
|
Unavailable |
|||
|
#19
PLATE, RESERVOIR TANK
69750-17E00
|
$6.78 | ||
|
Unavailable |
|||
|
#20
BOLT
01517-06207
Superseded by 01550-06207
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, REAR BRAKE
69480-17E00
|
$45.30 | ||
|
Unavailable |
|||
|
#21
HOSE, REAR BRAKE
69480-17E10
|
$50.73 | ||
|
Unavailable |
|||
|
#22
BOLT
09360-10017
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN (6X18.2)
09200-06037
Superseded by 09200-06068
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
08322-21067
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
GUIDE, RESERVOIR TANK HOSE
09403-16307
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
