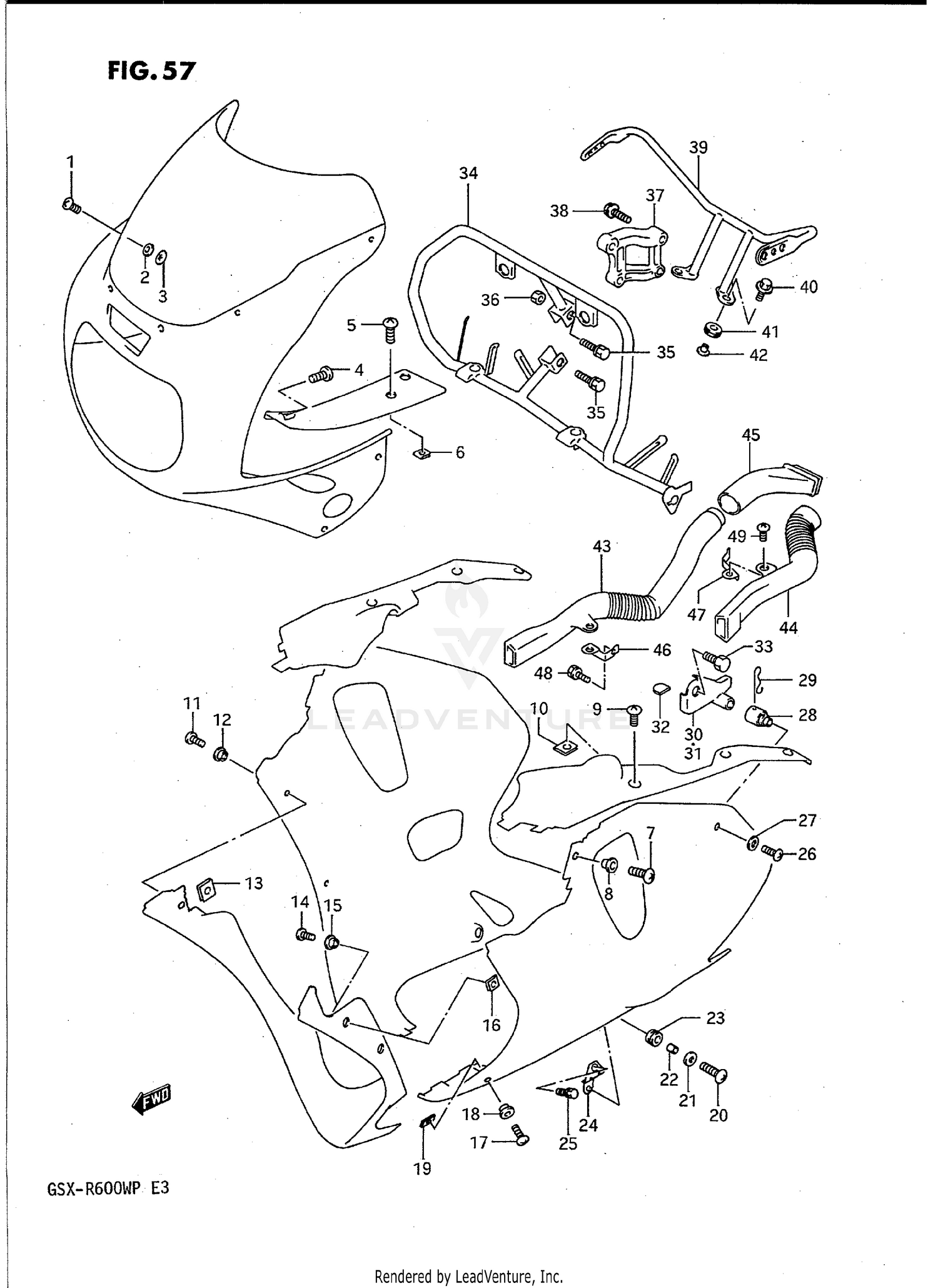

Cowling Fitting Set Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, SCREEN (4X11)
94616-22D00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION
09320-04007
Superseded by 09320-04501
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
09148-04032
|
$2.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
.SCREW
02142-05124
Superseded by 02142-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
03242-05124
Superseded by 03241-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
09148-05004
Superseded by 09148-05013
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SCREW (5X18)
09139-05032
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09161-05018
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03242-05124
Superseded by 03241-0512A
|
$1.70 | ||
|
Unavailable |
|||
|
#10
NUT
09148-05004
Superseded by 09148-05013
|
$2.27 | ||
|
Unavailable |
|||
|
#11
SCREW (5X18)
09139-05032
|
$2.41 | ||
|
Unavailable |
|||
|
#12
WASHER
09161-05017
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT
94484-12C11
|
$12.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BRACKET
03242-05165
Superseded by 03241-0516A
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09161-05017
|
$3.47 | ||
|
Unavailable |
|||
|
#16
NUT
09148-05004
Superseded by 09148-05013
|
$2.27 | ||
|
Unavailable |
|||
|
#17
SCREW (5X18)
09139-05032
|
$2.41 | ||
|
Unavailable |
|||
|
#18
WASHER
09161-05017
|
$3.47 | ||
|
Unavailable |
|||
|
#19
NUT
94484-12C11
|
$12.21 | ||
|
Unavailable |
|||
|
#20
SCREW, UNDER LOWER (6X25)
09139-06029
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (6.5X18X1)
09160-06056
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SPACER (6.5X9X10)
09180-06114
Superseded by 09180-06307
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, UNDER LOWER RH
94740-17E00
|
$18.01 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, UNDER LOWER LH
94840-17E00
Superseded by 94840-17E01
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (6X16)
09116-06027
Superseded by 09116-06024
|
$1.67 | ||
|
Unavailable |
|||
|
#26
SCREW, UNDER REAR (6X20)
09139-06028
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
09160-06053
Superseded by 09160-06125
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, UNDER COWLING
94520-12C00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN,UNDER COWL
94523-12C00
Superseded by 94523-12C0V
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACE, UNDER RH
94530-17E00
Superseded by 94530-17E01
|
$18.39 | ||
|
Unavailable |
|||
|
#31
BRACE, UNDER LH
94540-17E00
Superseded by 94540-17E01
|
$28.61 | ||
|
Available to order. Add to View Price |
|||
|
#32
CUSHION, BRACE
94551-17E00
|
$4.82 | ||
|
Unavailable |
|||
|
#33
BOLT
01137-06125
Superseded by 01570-0612A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#34
BRACE, COWLING
94510-17E00
|
$276.87 | ||
|
Available to order. Add to View Price |
|||
|
#35
NO DESCRIPTION AVAILABLE
01137-08308
Superseded by 01570-08307
|
$2.67 | ||
|
Unavailable |
|||
|
#36
NUT
08313-21087
Superseded by 08313-20087
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACE, COWLING CENTER
94531-41C00
|
$70.21 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
01187-08408
Superseded by 01580-08407
|
$3.14 | ||
|
Unavailable |
|||
|
#39
BRACE, MIRROR
94520-17E00
|
$192.32 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT (6X20)
09116-06143
Superseded by 09116-06115
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#41
CUSHION
09320-09009
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER
09169-06062
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE, AIR INTAKE RH
94451-17E00
|
$67.69 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIPE, AIR INTAKE LH
94452-17E00
|
$49.58 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIPE, AIR INTAKE REAR RH
94453-17C00
|
$32.13 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRACKET, AIR INTAKE RH
94454-17E00
Superseded by 94454-17E01
|
$12.35 | ||
|
Unavailable |
|||
|
#47
BRACKET, AIR INTAKE LH
94455-17E00
Superseded by 94455-17E01
|
$10.76 | ||
|
Unavailable |
|||
|
#48
BOLT
01137-06125
Superseded by 01570-0612A
|
$2.87 | ||
|
Unavailable |
|||
|
#49
SCREW
02142-06125
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
