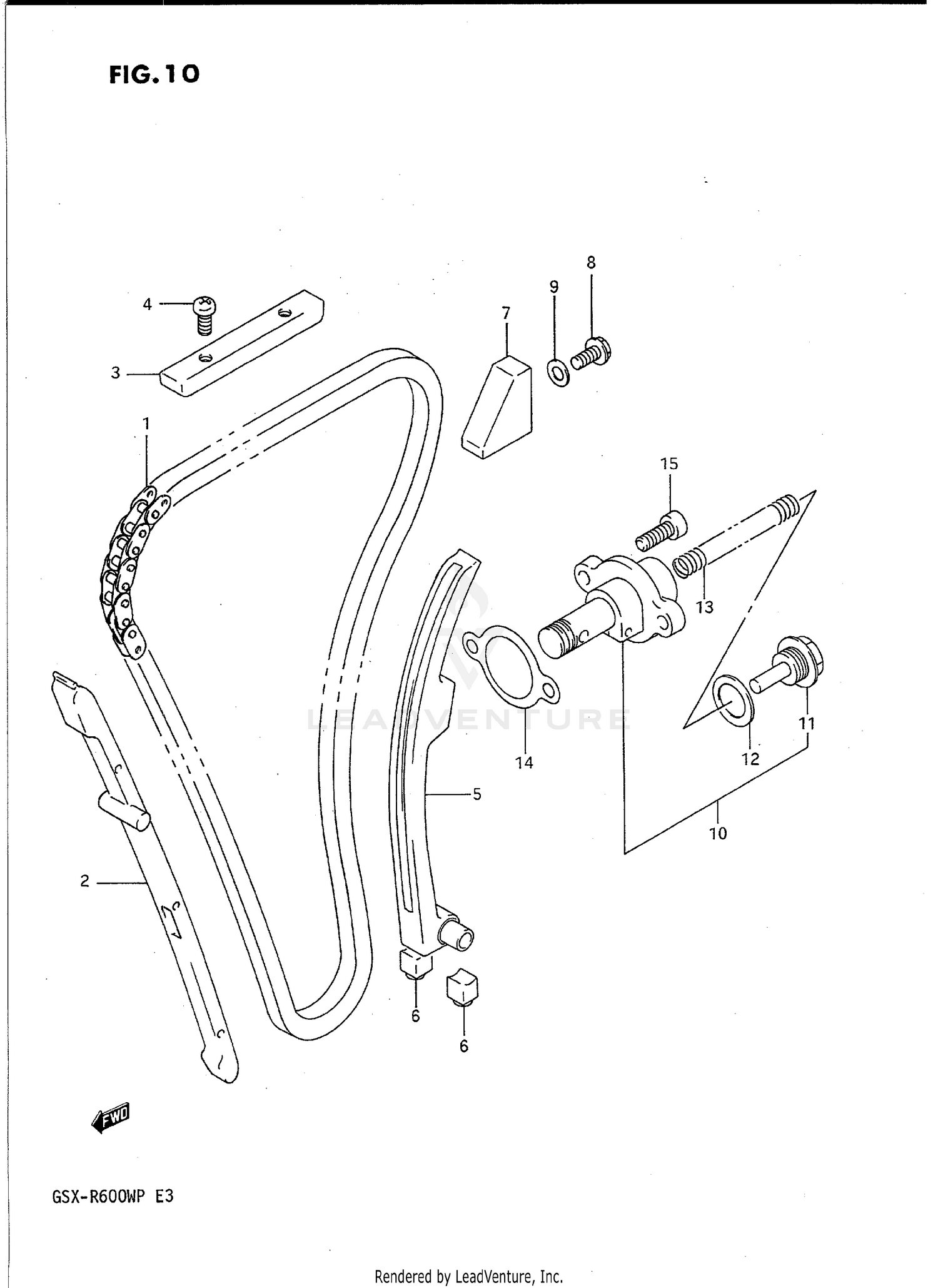

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CM SHAFT DRIVE
12760-17E00
Superseded by 12760-17E01
|
$149.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN NO.1
12771-17E00
|
$64.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, CAM CHAIN NO.2
12782-18E00
|
$72.00 | ||
|
Unavailable |
|||
|
#4
SCREW
02112-05108
Superseded by 02112-05107
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
TENSIONER, CM CHAIN
12810-17E00
Superseded by 12810-17E01
|
$99.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
12814-34200
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, CAM CHAIN NO.3
12791-17E00
Superseded by 12791-17E01
|
$79.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CLAMP
01517-06125
Superseded by 01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
ADJUSTER ASSY, TENSIONER
12830-26D10
Superseded by 12830-46E00
|
$177.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG
12834-27A00
|
$22.62 | ||
|
Unavailable |
|||
|
#12
GASKET
12832-27A00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
12833-26D10
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, ADJUSTER (NA)
12837-27A10
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,6X23
09106-06059
Superseded by 09106-06059-XC0
|
$2.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
