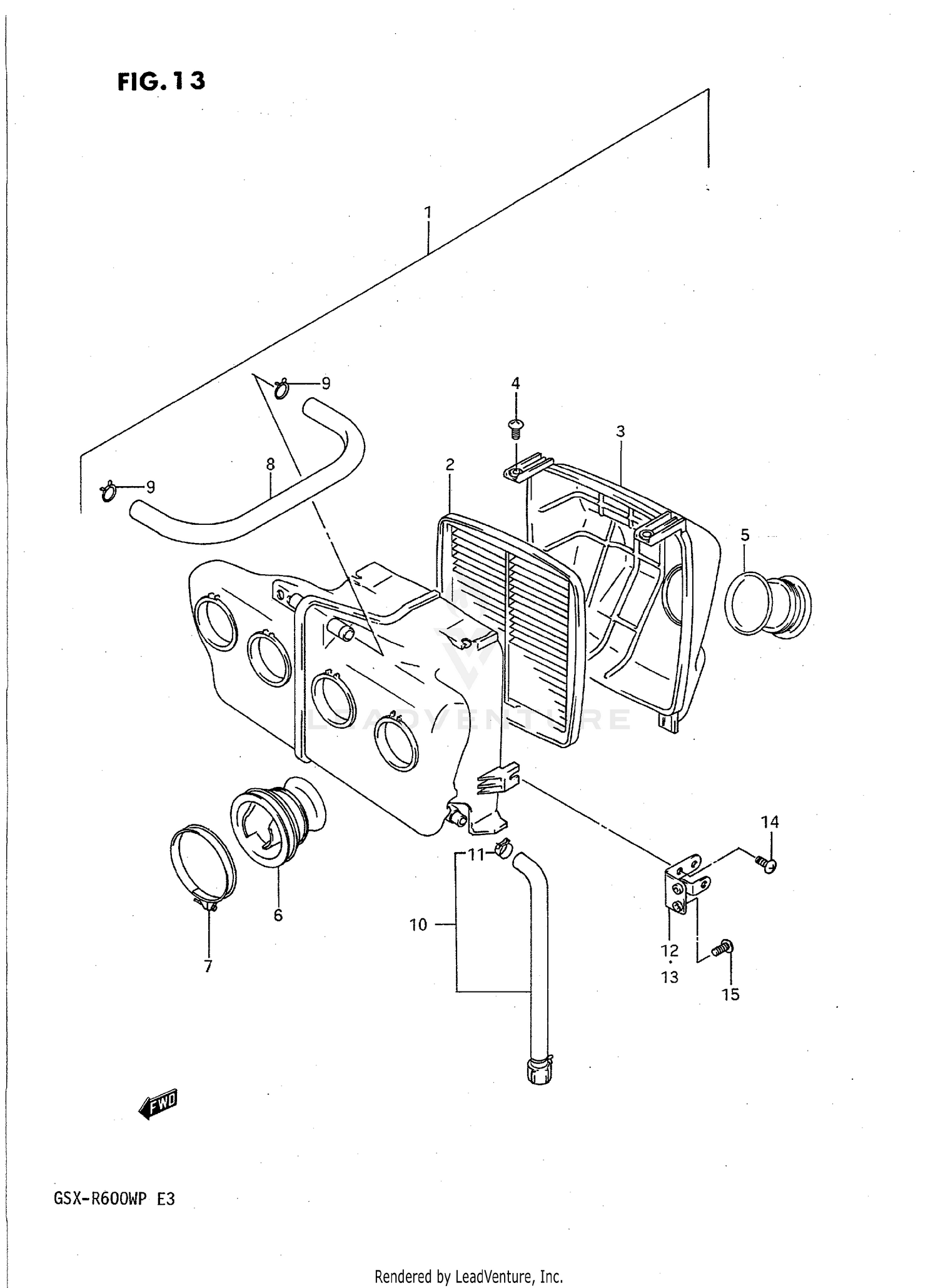

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
13700-17E10
Superseded by 13700-17E12
|
$271.30 | ||
|
Unavailable |
|||
|
#2
FILTER, AIR
13780-17E00
|
$54.92 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, AIR CLEANER
13740-17E00
Superseded by 13740-17E02
|
$67.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SCREW
02142-05124
Superseded by 02142-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE,INLET
13891-17E00
Superseded by 13891-17E01
|
$30.49 | ||
|
Unavailable |
|||
|
#6
TUBE, OUTLET
13881-17E10
|
$26.00 | ||
|
Unavailable |
|||
|
#7
CLAMP
09402-68208
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, BREATHER
13853-17E00
Superseded by 13853-46E00
|
$26.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
13824-48B10
Superseded by 09401-16401
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE,DRAIN
13870-17E00
Superseded by 13870-21459
|
$26.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP (ID:12.9)
13825-43400
Superseded by 09401-13417
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, AIR CLEANER RH
13760-17E00
|
$8.21 | ||
|
Unavailable |
|||
|
#13
BRACKET, AIR CLEANER LH
13770-17E00
|
$11.55 | ||
|
Unavailable |
|||
|
#14
SCREW
02142-06126
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SCREW
02142-06166
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
