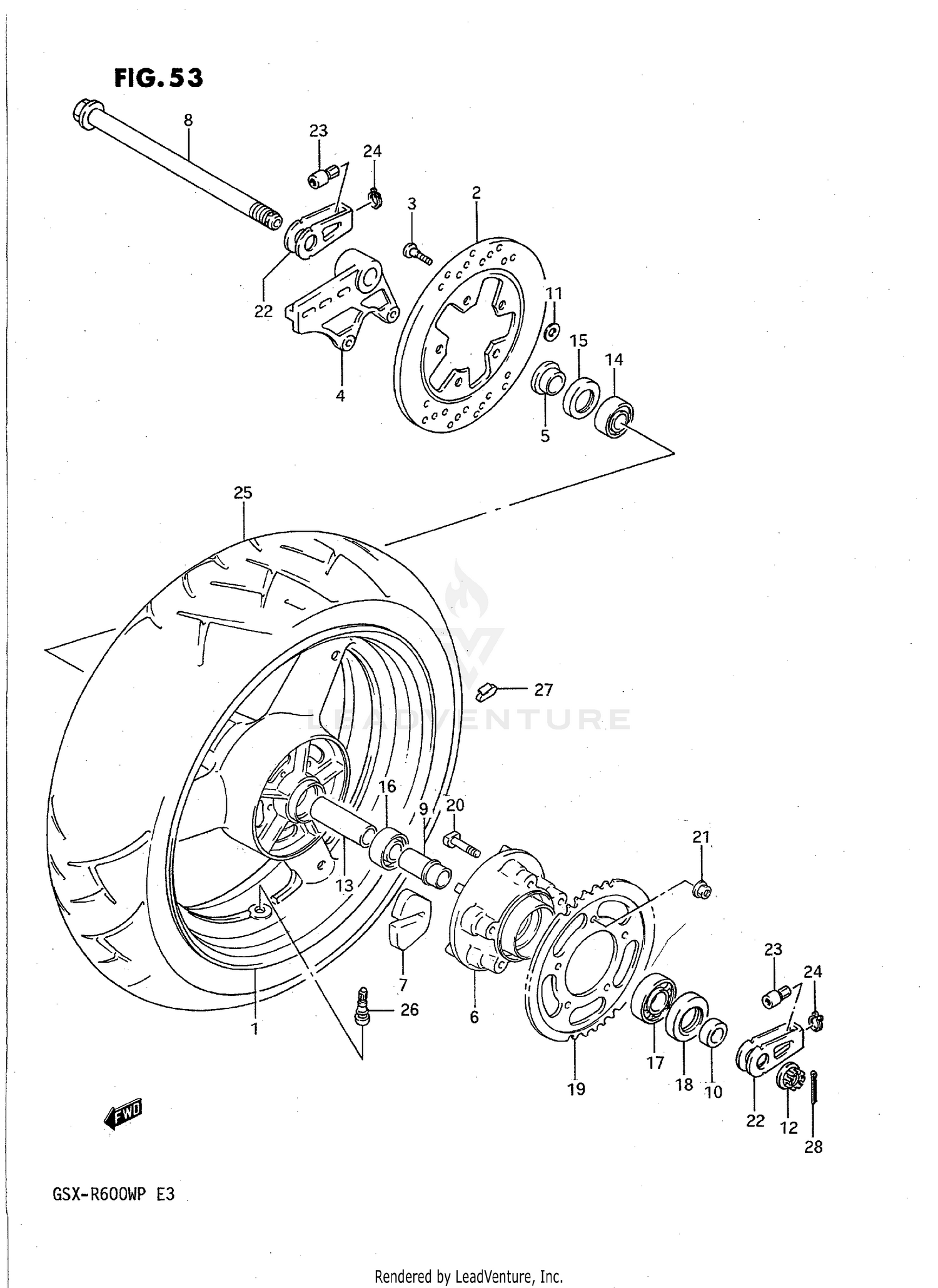

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, REAR (17XMT5.50)
64111-17E00-1MJ
|
$611.57 | ||
|
Unavailable |
|||
|
#1
WHEEL, REAR (17XMT5.50)
64111-17E00-28W
|
$611.57 | ||
|
Unavailable |
|||
|
#1
WHEEL, REAR (17XMT5.50)
64111-17E00-1UL
|
$611.60 | ||
|
Unavailable |
|||
|
#2
DISC, REAR BRAKE
69211-17C10
|
$390.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X33)
09106-08082
Superseded by 09106-08148
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, REAR CALIPERS
69721-17E00
Superseded by 69721-17E10
|
$174.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, RH
64741-17E00
|
$28.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, SPROCKET
64611-17C01
|
$170.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
ABSORBER,SHOCK REAR HUB
64651-27A01
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
AXLE, REAR
64711-17E10
|
$150.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER,REAR HUB BEARING
64733-27A00
|
$30.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, LH
64751-27A00
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, REAR DISC
09181-10002
|
$1.48 | ||
|
Unavailable |
|||
|
#12
NUT
09141-20004
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, BEARING
09180-20114
|
$20.90 | ||
|
Unavailable |
|||
|
#14
BEARING
08123-62047
Superseded by 08123-6204B
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL,OIL (27X47X7)
09285-28001
Superseded by 09285-28004
|
$15.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, LH
09262-20042
|
$29.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, DRUM
09262-25073
|
$32.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (35X62X8)
09285-35001
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPROCKET, REAR (NT:44)
64511-17C00
|
$87.72 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
09119-10037
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08319-31107
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
ADJUSTER, CHAIN
61411-40C00
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CHAIN ADJUSTER
61415-40C00
Superseded by 61415-22D00
|
$28.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
08331-31136
Superseded by 08331-3113A
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
TIRE, REAR (170/60 ZR17)
65110-18D00
|
$326.80 | ||
|
Unavailable |
|||
|
#26
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BALANCER (10G)
55411-00A00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALANCER, WHEEL NO.2
55412-00A00
Superseded by 55412-17G00
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALANCER (30G)
55413-00A00
Superseded by 55413-00A01
|
$3.58 | ||
|
Unavailable |
|||
|
#28
PIN, COTTER
04111-40408
Superseded by 04111-4040A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
