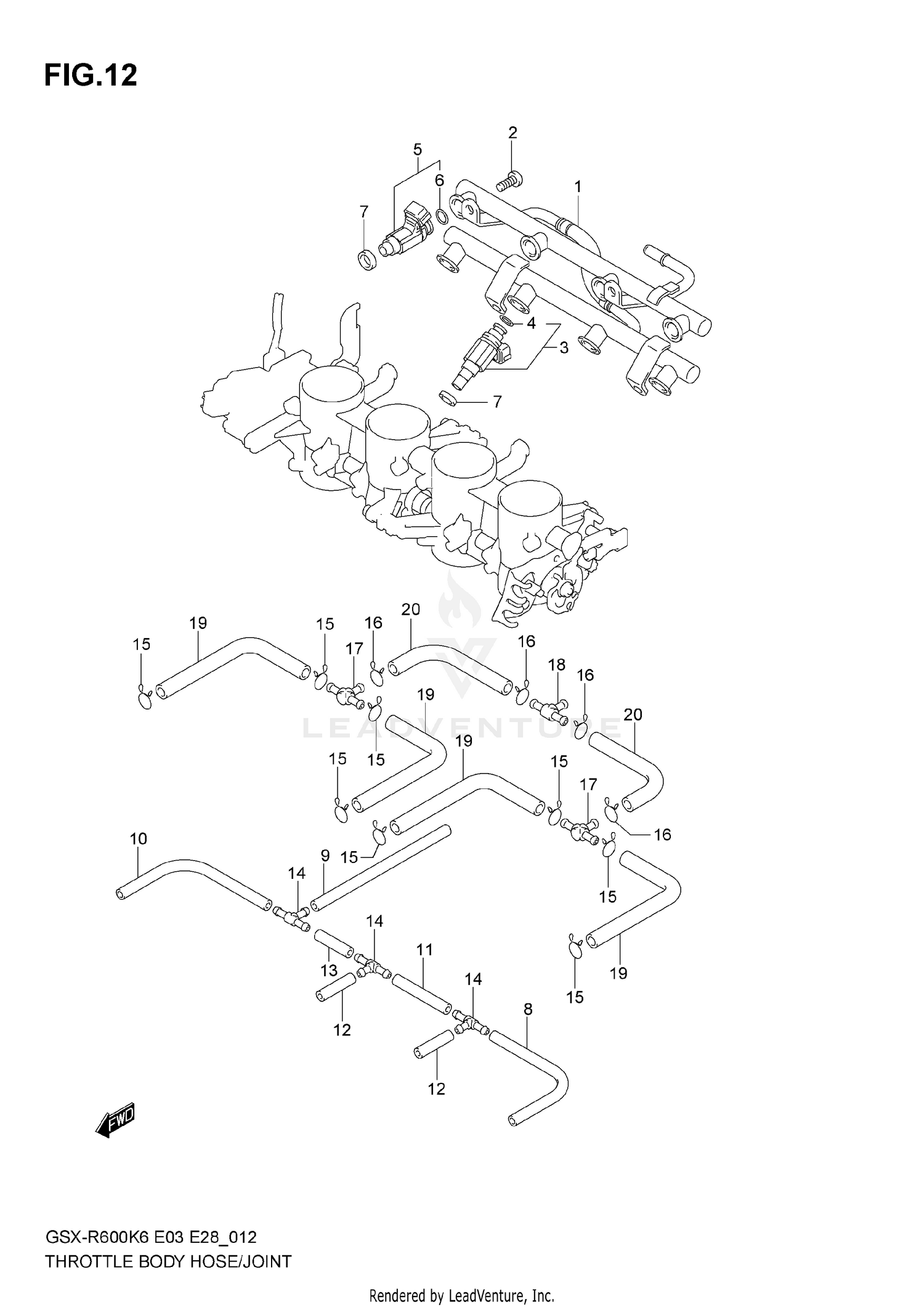

Throttle Body Hose/joint Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DELIVERY PIPE ASSY
15730-01H00
|
$397.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
13602-06128
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
INJECTOR ASSY
15710-01H00
|
$371.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING
15717-16G00
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#5
INJECTOR ASSY
15710-48G00
|
$352.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
15717-16G00
|
$12.86 | ||
|
Unavailable |
|||
|
#7
.SEAL
15722-29G00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
13683-29G00
Superseded by 13683-29G01
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
13683-01H00
Superseded by 13683-01H01
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
.HOSE
13683-10F60
Superseded by 13683-10F61
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
.HOSE
13683-10F60
Superseded by 13683-10F61
|
$19.30 | ||
|
Unavailable |
|||
|
#13
.HOSE
13683-10F60
Superseded by 13683-10F61
|
$19.30 | ||
|
Unavailable |
|||
|
#14
.3WAY, VACUUM HOSE
13685-02FA0
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
.CLIP
13671-29G00
|
$3.24 | ||
|
Unavailable |
|||
|
#16
CLIP
13671-06A10
|
$2.68 | ||
|
Unavailable |
|||
|
#17
.NIPPLE
13685-29G00
|
$9.92 | ||
|
Unavailable |
|||
|
#18
NIPPLE
13685-48B00
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE
13683-01H10
|
$17.68 | ||
|
Unavailable |
|||
|
#20
HOSE
13683-29G30
|
$19.75 | ||
|
Unavailable |
|||
