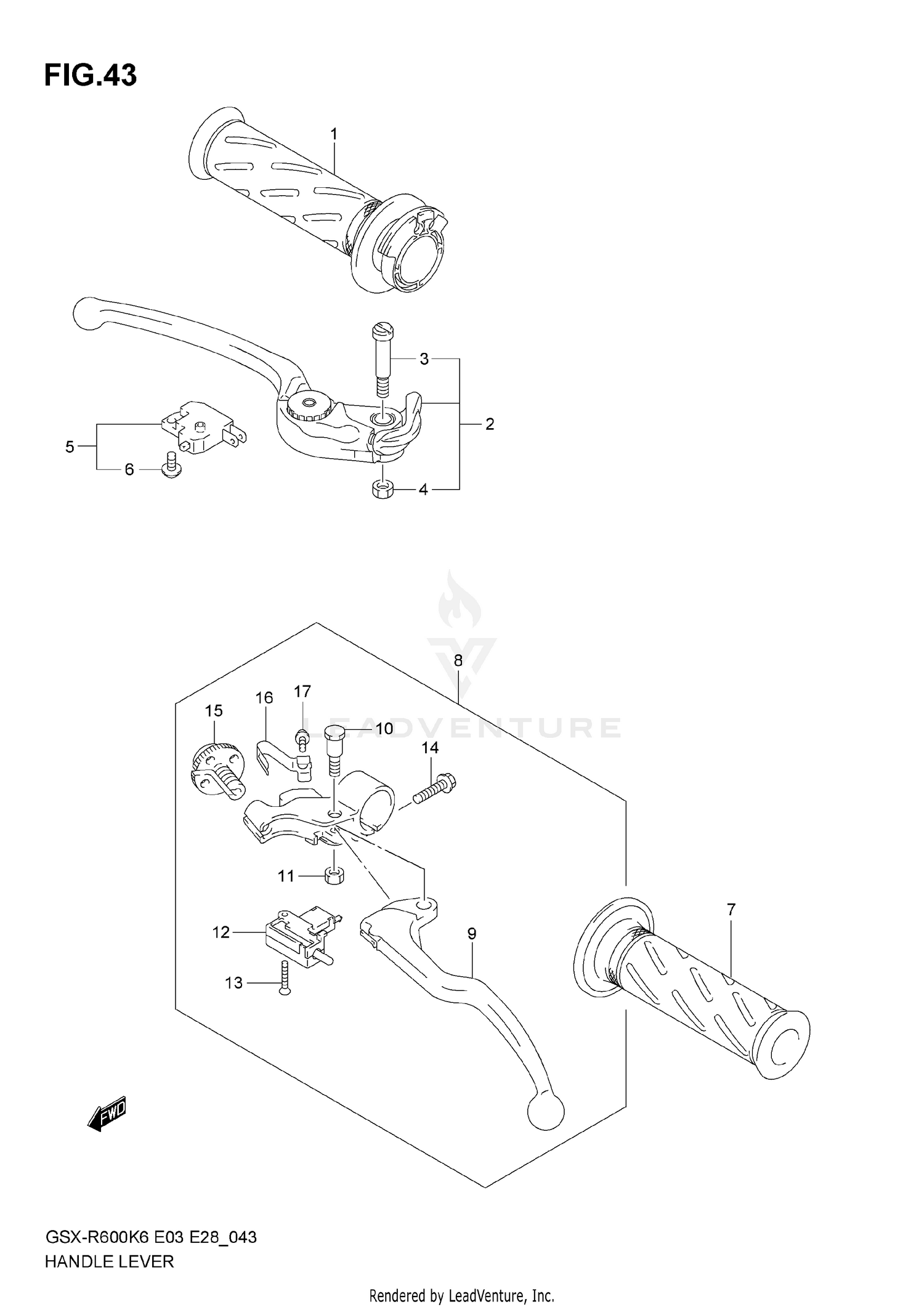

Handle Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP, THROTTLE (BLACK)
57110-29G00
Superseded by 57110-29G02-291
|
$38.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER ASSY, BRAKE
57300-29G00
Superseded by 57300-29G01
|
$81.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, PIVOT
57431-29G00
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,LEVER PIVOT
57433-09F00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY,FR BRAKE
57460-17C11
Superseded by 57460-14J02
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP, LH (BLACK)
57211-22D01
Superseded by 57211-22D02-291
|
$18.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER ASSY,CLUT
57500-41G10
Superseded by 57500-41G11
|
$118.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER, CLUTCH
57621-41G00
|
$45.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
57431-41G00
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
.NUT
08319-21063
Superseded by 08319-2106B
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SWITCH,CLUTCH
57560-05A00
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02122-03208
Superseded by 02122-0320A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT
01547-06203
Superseded by 01547-0620B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CABLE ADJUSTER
57641-33E21
|
$46.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
57644-33E00
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, SPRING
57642-33E00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
