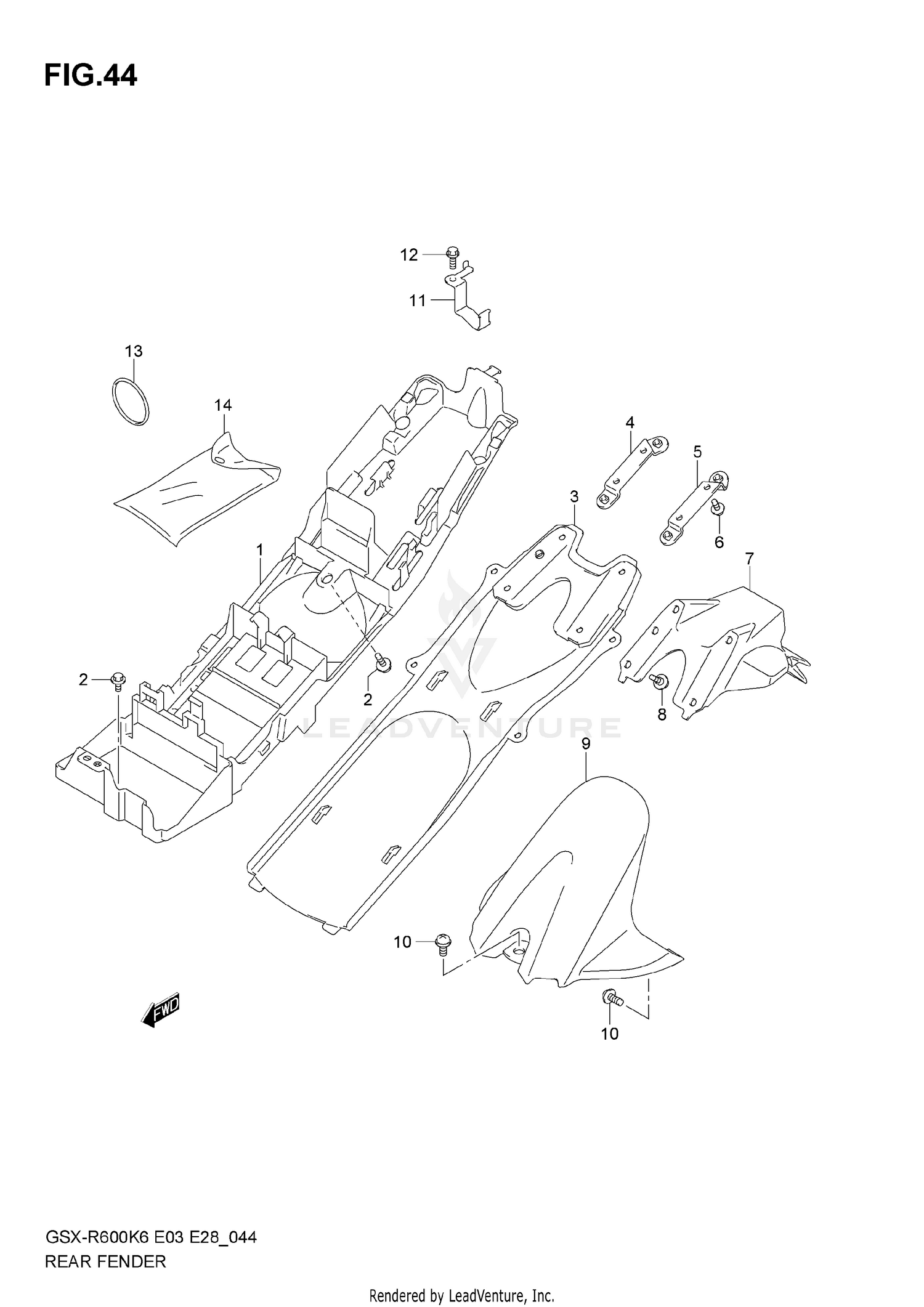

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR FRONT UPPER
63111-01H00
|
$119.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (6X12)
63161-43E00-A05
Superseded by 09111-06107
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
FENDER, REAR FRONT LOWER
63112-01H00
|
$158.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, RH
63120-01H00
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, LH
63220-01H00
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
63113-01H00
|
$124.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X16)
09111-06089-A05
Superseded by 09111-06089
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
FENDER, LOWER
63114-01H00
Superseded by 63114-01H02
|
$61.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09103-06289
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FUSE BOX
47410-01H00
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0612A
|
$2.45 | ||
|
Unavailable |
|||
|
#13
O RING(D:3.5,ID
09280-61002
Superseded by 09280-61004
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
TOOL ASSY
09800-21039
Superseded by 09800-21089
|
$88.41 | ||
|
Unavailable |
|||
