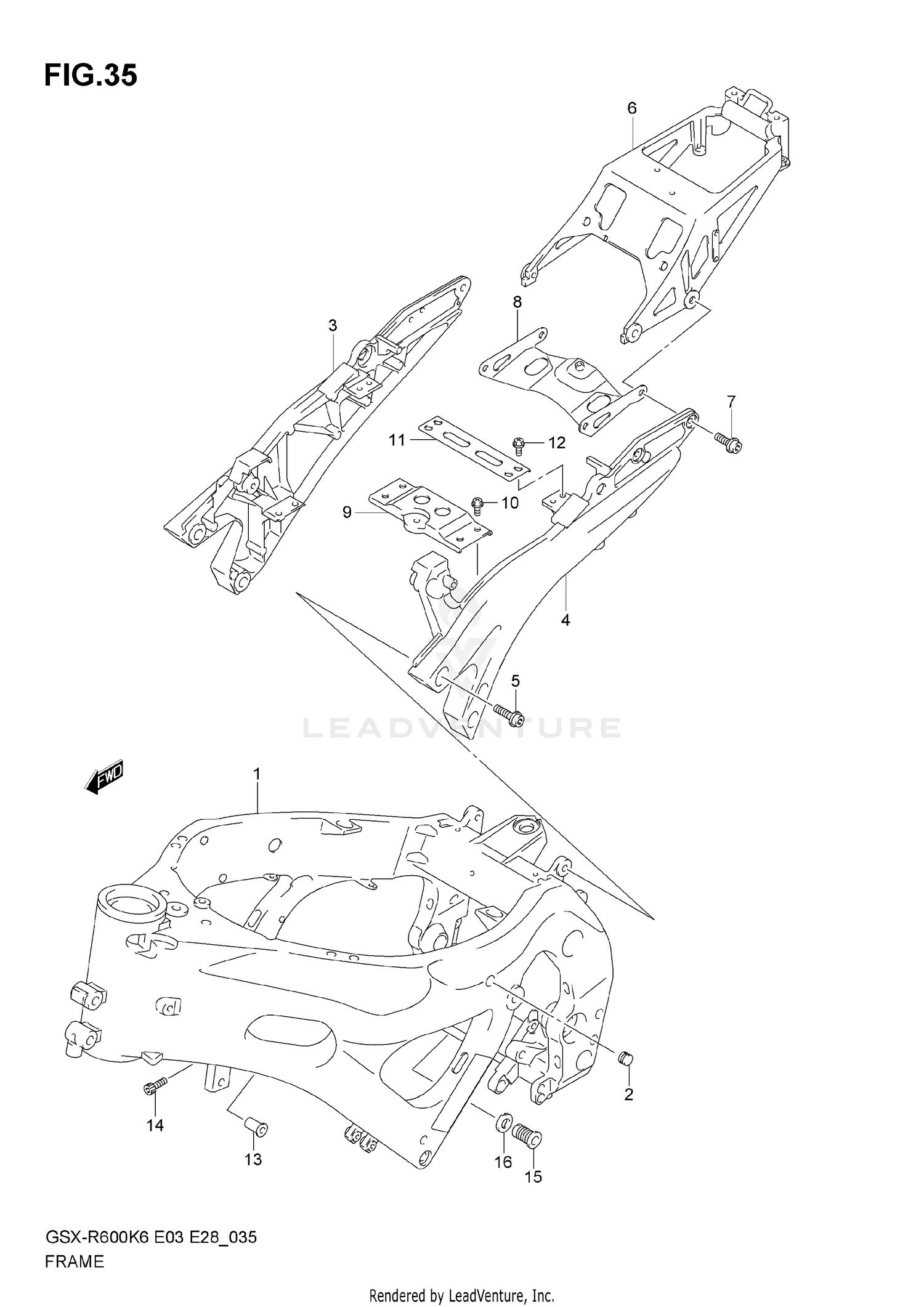

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-01H00-YAP
Superseded by 41100-01H10-YAP
|
$3,999.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG,TANK RAIL
43585-01H00
Superseded by 43585-01H01
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
RAIL, SEAT RH (BLACK)
41211-01H00-YAP
|
$526.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
RAIL, SEAT LH (BLACK)
41221-01H00-YAP
|
$526.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,SEAT RAIL
41233-18G00
Superseded by 41233-18G20
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, PILLION SEAT
41231-41G10
|
$597.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
STUD BOLT
07120-08203-A05
Superseded by 07120-0820B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRIDE, SEAT RAIL REAR
41240-01H00
|
$78.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRIDGE,SEAT RAIL FRONT
41770-01H00
|
$69.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X12)
09103-06083-A05
Superseded by 09103-06285
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, SEAT RAIL UPPER
41251-01H00
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X12)
09103-06083-A05
Superseded by 09103-06285
|
$2.46 | ||
|
Unavailable |
|||
|
#13
SPACER
41911-40F01
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPACER
09106-08149
Superseded by 09106-08170
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CRANKCASE ADJUST
41921-35F00
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
41922-18G00
|
$41.46 | ||
|
Available to order. Add to View Price |
|||
