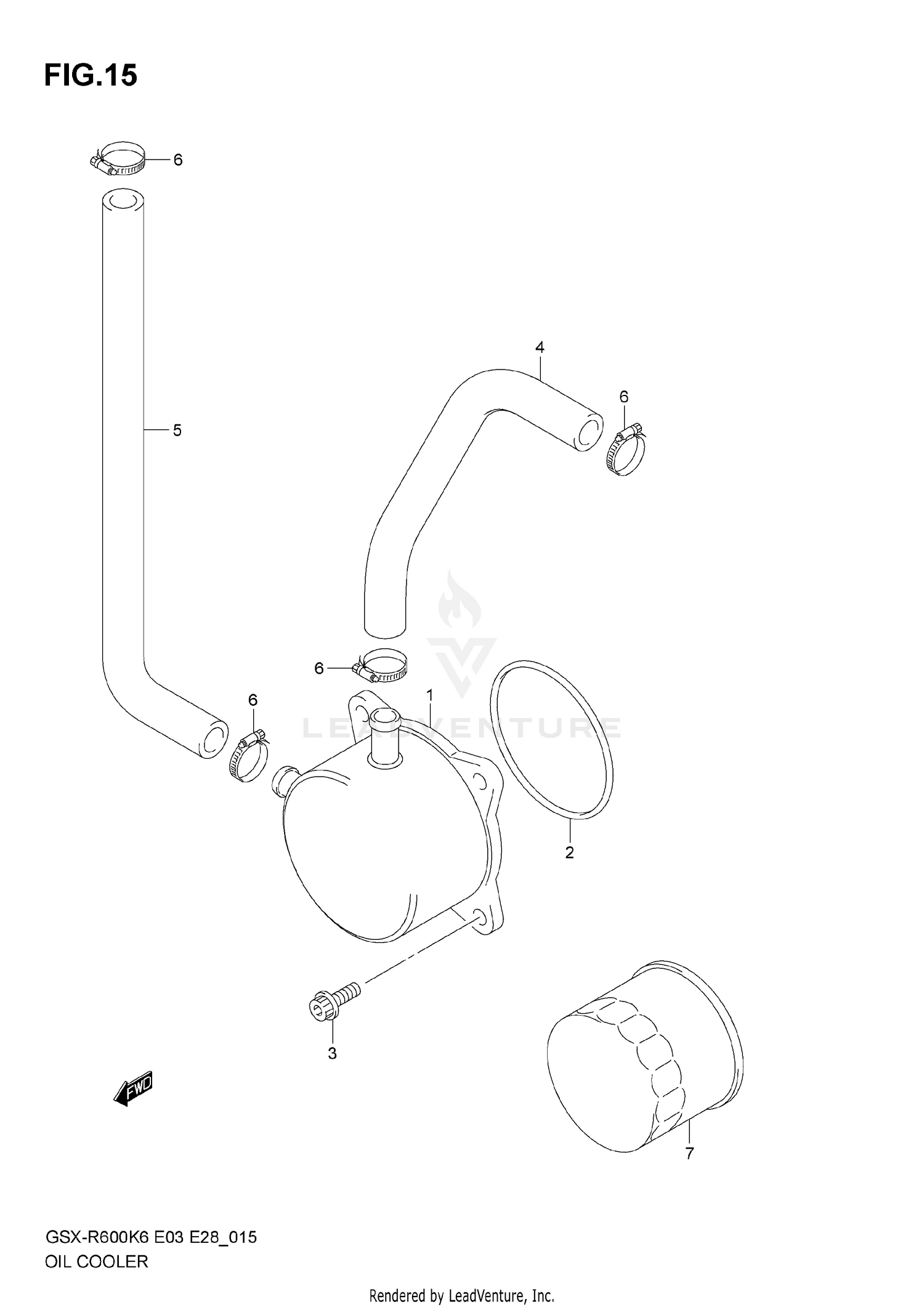

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY,OIL
16600-01H00
|
$730.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING (D:3.1,ID:63.9)
09280-64003
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X16)
09106-06099-A05
Superseded by 09106-06099
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE,OIL COOLER WATER INLET
16461-01H00
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE, OUTLET
16471-01H00
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
09402-22511-A05
Superseded by 09402-22512
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
FILTER ASSY,ENGINE OIL
16510-03G00-X07
Superseded by 16510-07J10
|
$16.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
