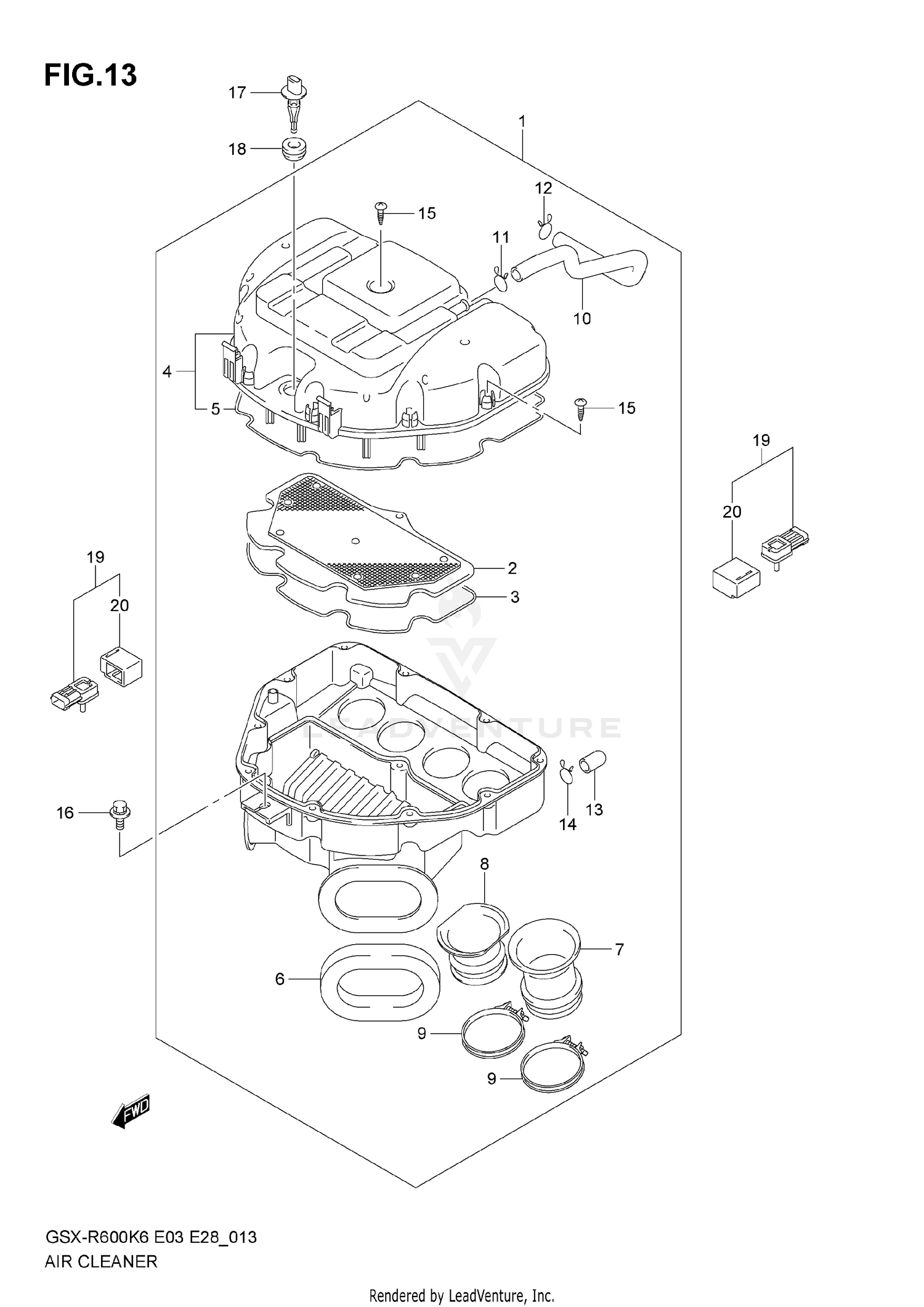

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13700-01H00-E00
Superseded by 13700-01H01
|
$252.63 | ||
|
Available to order. Add to View Price |
|||
|
#1
CLEANER ASSY, AIR
13700-01H01
|
$252.63 | ||
|
Unavailable |
|||
|
#2
FILTER ASSY
13780-01H00
|
$51.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GASKET, CASE
13756-01H00
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP
13740-01H00
|
$67.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CAP
13746-01H00
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, DUCT
13736-01H00
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE,OUTLET
13881-01H00
Superseded by 13882-01H02
|
$24.46 | ||
|
Unavailable |
|||
|
#7
TUBE,OUTLET
13881-01H01
Superseded by 13881-01H02
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE,OUTLET
13882-01H00
Superseded by 13882-01H02
|
$24.46 | ||
|
Unavailable |
|||
|
#8
TUBE,OUTLET
13882-01H01
Superseded by 13882-01H02
|
$24.46 | ||
|
Unavailable |
|||
|
#9
CLAMP
09402-56208
Superseded by 09402-56901
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE,BREATHER
13853-01H00
Superseded by 13853-01H01
|
$22.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
09401-14301
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
09401-16401
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PLUG
13859-41B10
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
09401-14301
|
$2.53 | ||
|
Unavailable |
|||
|
#15
SCREW
13831-35F00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X16)
09116-06130-A05
Superseded by 09116-06130
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR, AIR TEMPERATURE
13650-52G00
|
$129.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
.GROMMET,AIR TEMP SENSOR
13655-77E00
Superseded by 13655-77E10
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENSOR, AIR PRESSURE
15630-29G10
|
$304.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, SENSOR
15625-29G00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
