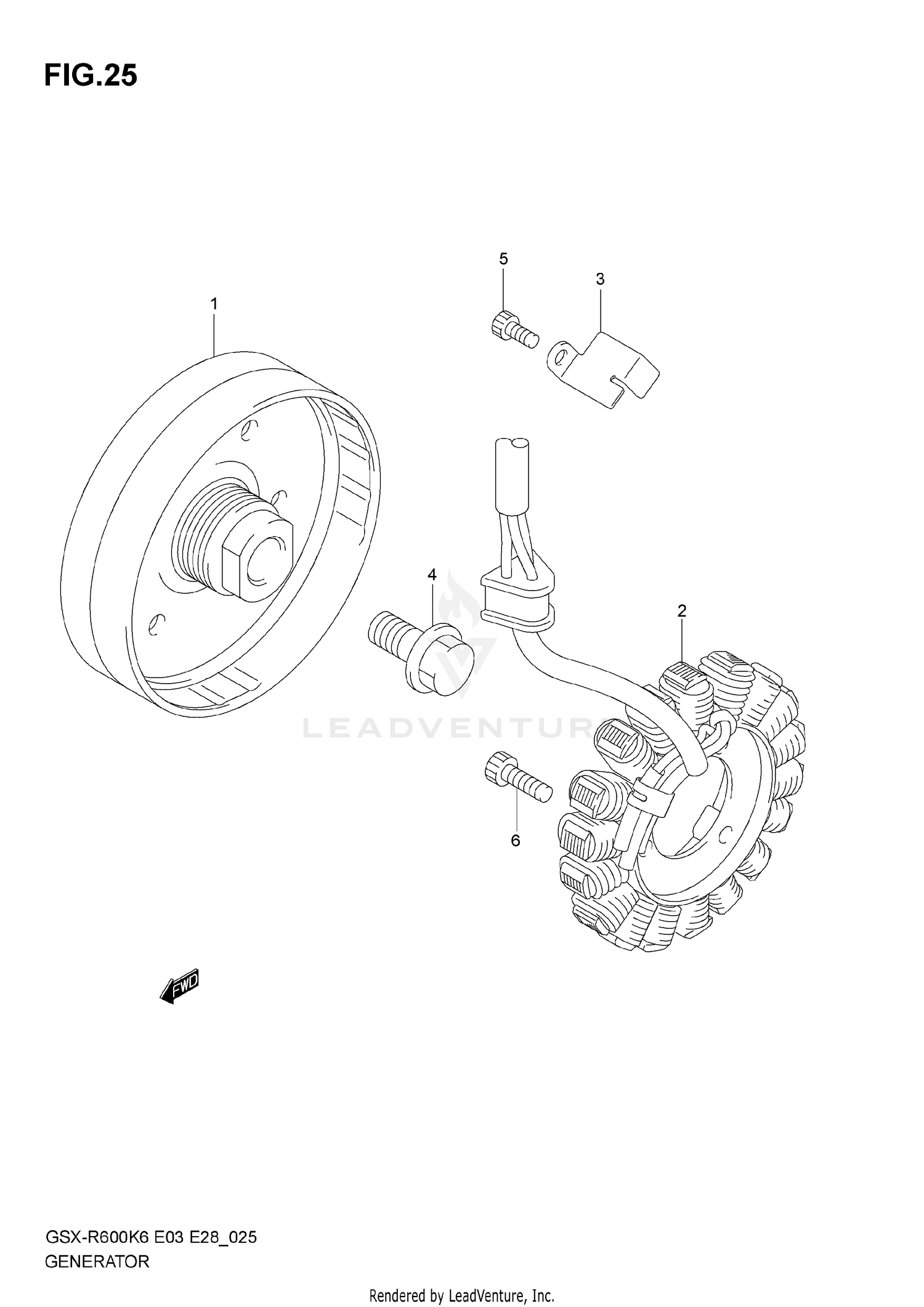

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSY
31402-01H00
|
$639.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR ASSY
31401-01H00
|
$418.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP,MAGNETO LEAD NO.1
32371-13E00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (12X23)
09103-12005
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, GEN LEAD
07130-0512A
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STATOR
07130-0620A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
