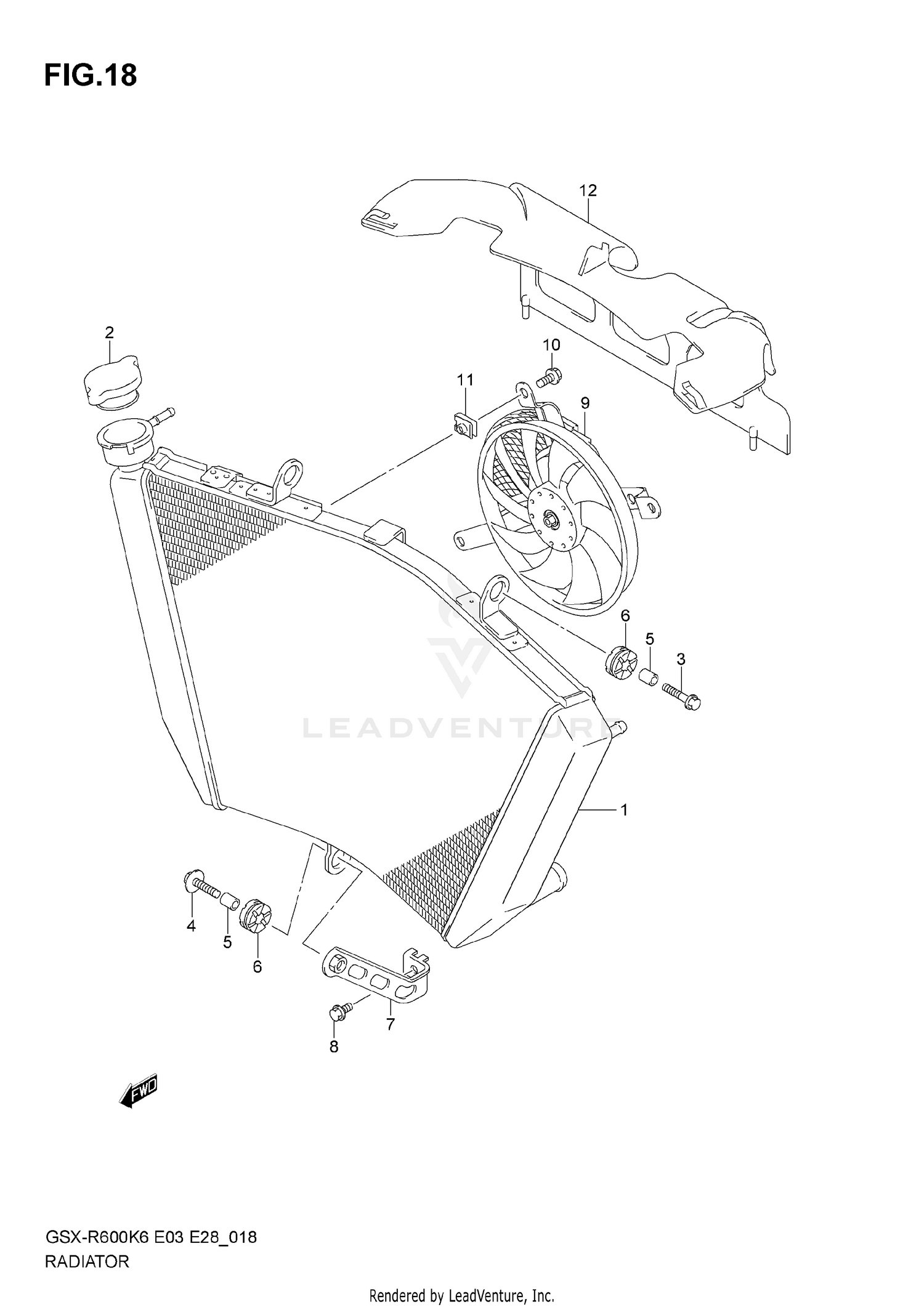

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY, WATER
17710-01H00
|
$1,161.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY, RADIATOR
17730-14G00
|
$55.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X25)
09118-06097-A05
Superseded by 09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
09180-06290-A05
Superseded by 09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09320-10051
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET
17750-01H00
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
FAN ASSY, RADIATOR
17800-01H00
|
$777.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.BOLT
17711-14G00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
.NUT,RADIATOR FAN
17802-14F00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIELD, HEAT
17771-01H00
|
$68.58 | ||
|
Available to order. Add to View Price |
|||
