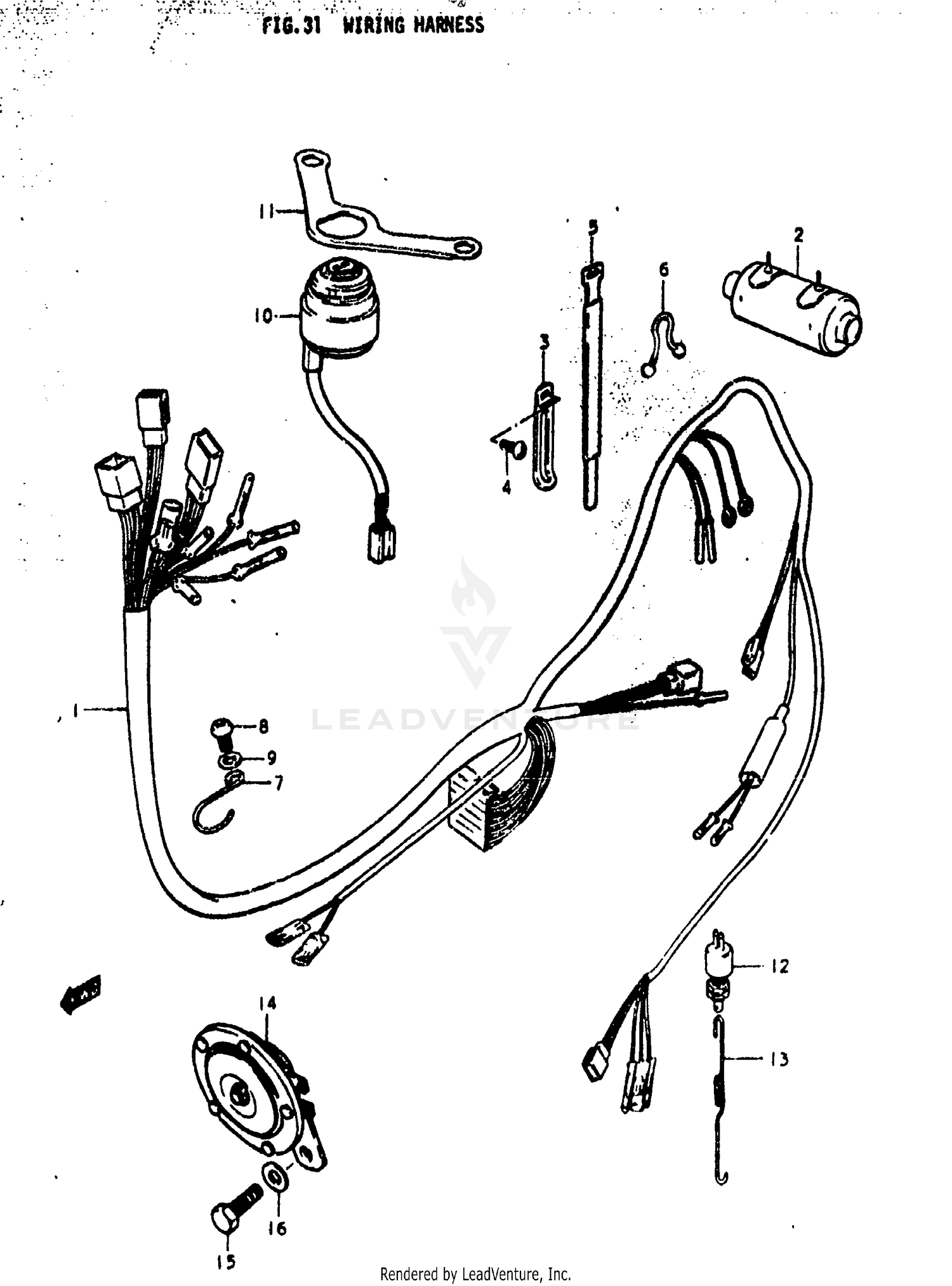

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS
36610-44001
Superseded by 36610-44003
|
$217.41 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
36610-44601
Superseded by 36610-44602
|
|||
|
Unavailable |
|||
|
#2
BOOT, WIRING HARNESS
36618-30610
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
09404-06402
Superseded by 09404-06039
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP(L:80)
09404-06414
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02112-06108
Superseded by 02112-06107
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
09408-00011
Superseded by 09408-00020
|
$0.94 | ||
|
Unavailable |
|||
|
#7
CLIP, WIRING HARNESS
36619-44000
Superseded by 36619-44002
|
$0.82 | ||
|
Unavailable |
|||
|
#8
SCREW
02112-06128
Superseded by 02112-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
.WASHER
08322-11068
Superseded by 08322-0106B
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SWITCH ASSY IGN
37110-31016
Superseded by 37110-31017
|
$104.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, IGNITION SWITCH
37115-36001
|
$5.51 | ||
|
Unavailable |
|||
|
#12
SWITCH, REAR BRAKE LAMP
37610-53011
|
$39.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
09443-06016
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
HORN ASSY
38500-64130
Superseded by 38502-49001
|
$91.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01104-08128
Superseded by 01500-08127
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08322-11088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
