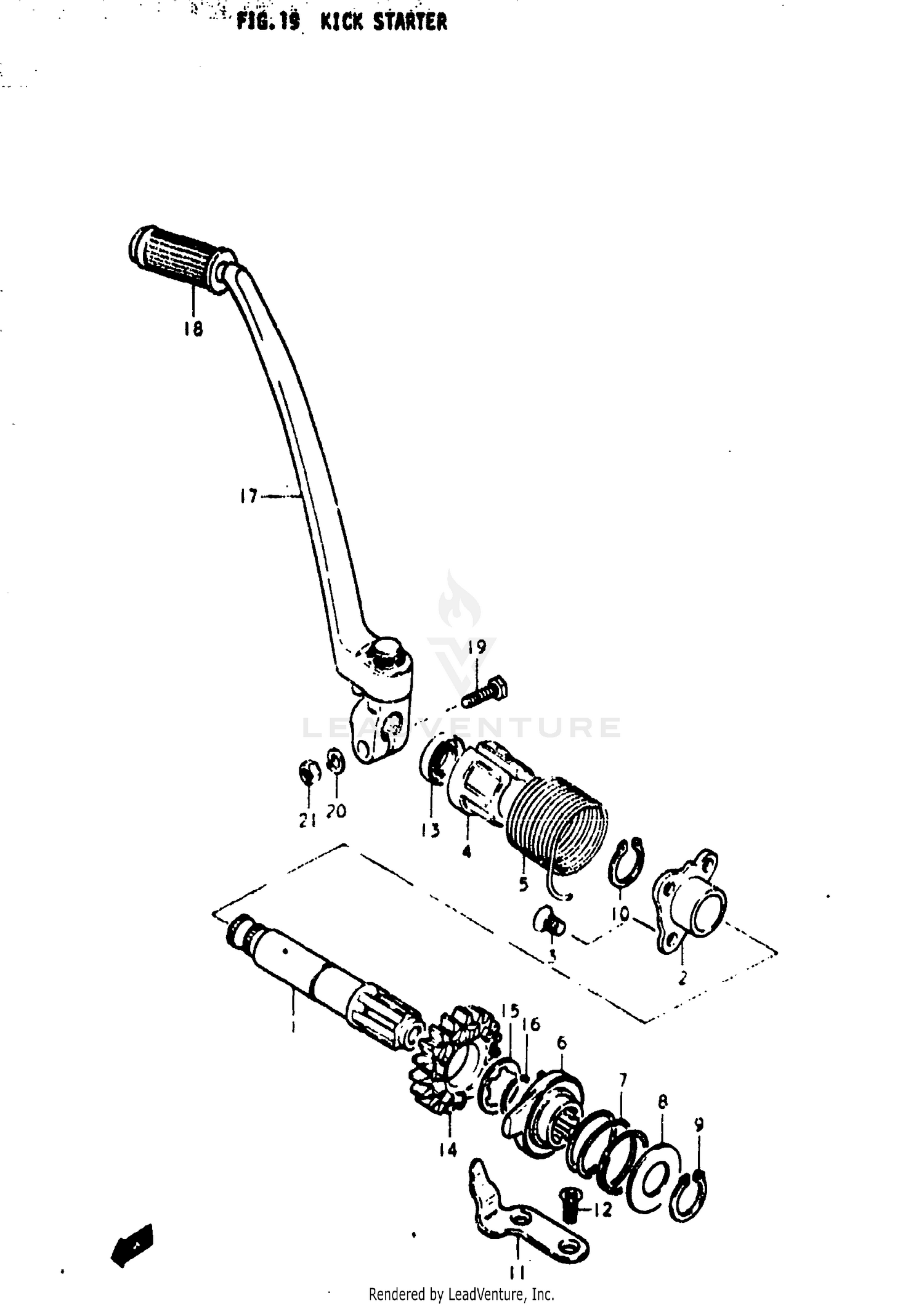

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, KICK STARTER
26210-44000
|
$45.48 | ||
|
Unavailable |
|||
|
#2
HOLDER, SHAFT
26215-44000
|
$18.70 | ||
|
Unavailable |
|||
|
#3
SCREW
02122-06128
Superseded by 02122-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDL, SPRING
26221-44000
|
$3.83 | ||
|
Unavailable |
|||
|
#5
SPRING
09448-45010
|
$4.12 | ||
|
Unavailable |
|||
|
#6
STARTER, KICK
26231-30000
Superseded by 26231-22A10
|
$69.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
09440-32002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
08212-17342
|
$1.40 | ||
|
Unavailable |
|||
|
#9
CIRCLIP, LH
09380-17001
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CIRCLIP, KICK START DRIVE GEAR
08331-11209
Superseded by 08331-3120A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, STARTER
26232-44000
|
$6.91 | ||
|
Unavailable |
|||
|
#12
SCREW
02122-06168
Superseded by 02122-06167
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
.OIL SEAL (20X27X5)
09283-20031
|
$6.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GEAR, KICK STARTER DRIVE
26240-45000
|
$55.45 | ||
|
Unavailable |
|||
|
#15
WASHER
09167-22007
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
09380-22003
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER ASSY, KICK STARTER
26300-44001
|
$122.69 | ||
|
Unavailable |
|||
|
#18
RUBBER,KICK STA
26352-01000
Superseded by 26352-01020
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HANDLE HOLDER
01107-10358
Superseded by 01500-1035B
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08310-12108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
