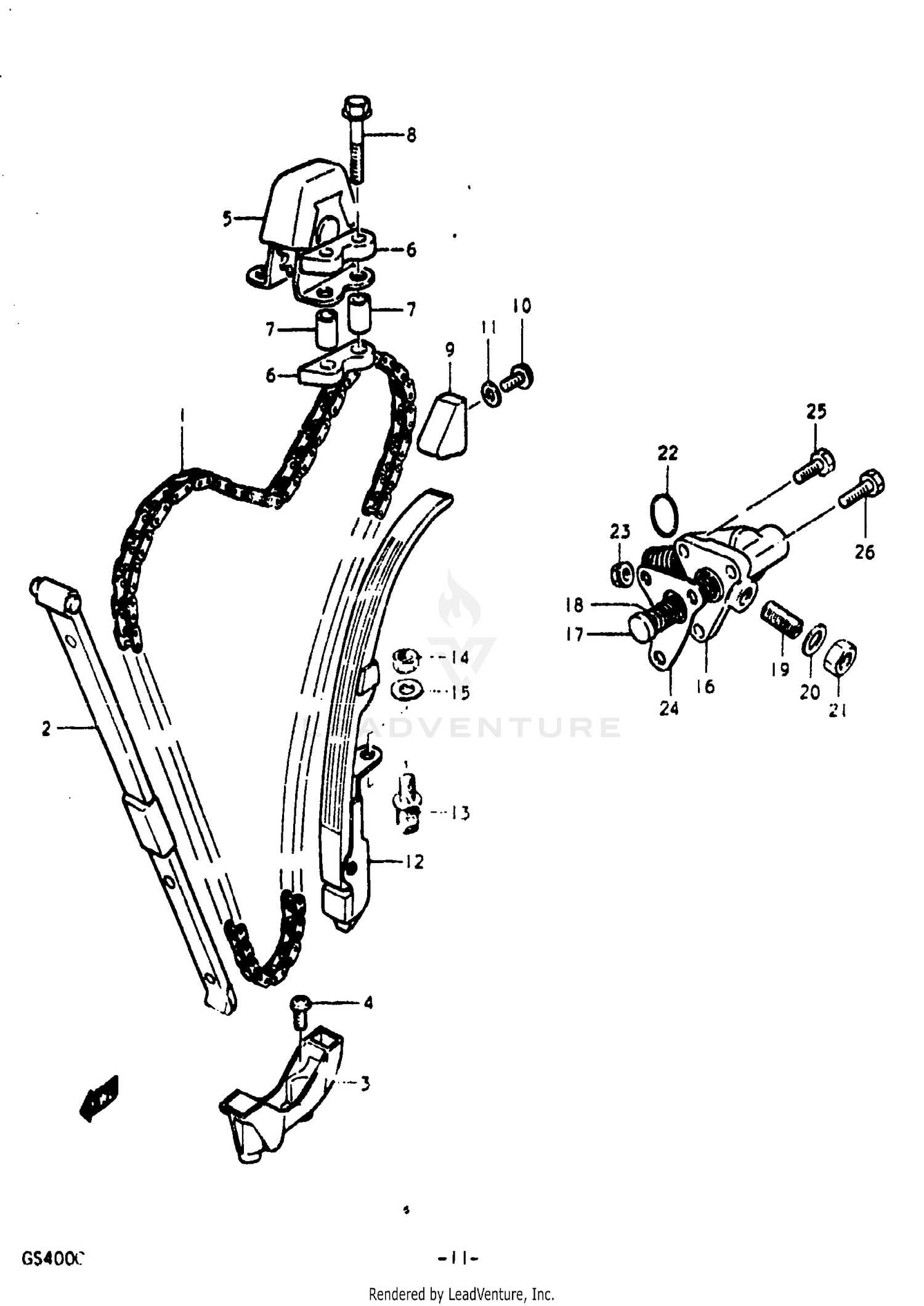

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM THAFT DRIVE
12760-45040
|
$166.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-45040
Superseded by 12771-45053
|
$45.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, CAM CHAIN GUIDE NO.1
12776-45001
|
$7.50 | ||
|
Unavailable |
|||
|
#4
SCREW
02112-06208
Superseded by 02112-06207
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
IDLER, CAM CHAIN
12780-45050
|
$128.87 | ||
|
Unavailable |
|||
|
#6
CUSHION, IDLER
12788-45050
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.5X10X13)
09180-06060
Superseded by 09180-06291
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01517-06308
Superseded by 01550-06307
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, CAM CHAIN NO.2
12791-45040
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01517-06128
Superseded by 01550-06127
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET (5.8X13X1.2)
09168-06009
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
TENSIONER, CAM CHAIN
12810-45040
|
$472.66 | ||
|
Unavailable |
|||
|
#13
STUD BOLT
09108-08050
|
$1.32 | ||
|
Unavailable |
|||
|
#14
NUT
08310-22088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
ADJUSTER,TENSIO
12830-45001
Superseded by 12830-45003
|
$185.46 | ||
|
Unavailable |
|||
|
#17
PUSH ROD
12833-45000
Superseded by 12833-45001
|
$31.56 | ||
|
Unavailable |
|||
|
#18
SPPING
09440-12017
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
12838-45001
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
Unavailable |
|||
|
#21
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
Unavailable |
|||
|
#22
.O RING (D:1.9,ID:5.7)
09280-06003
Superseded by 09280-06005
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
09159-06017
Superseded by 08319-31067
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
GASKET,TENS ADJ
12837-45000
Superseded by 12837-45000-H17
|
$3.01 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
09128-06017
|
$0.59 | ||
|
Unavailable |
|||
|
#26
BOLT
09128-06017
|
$0.59 | ||
|
Unavailable |
|||
