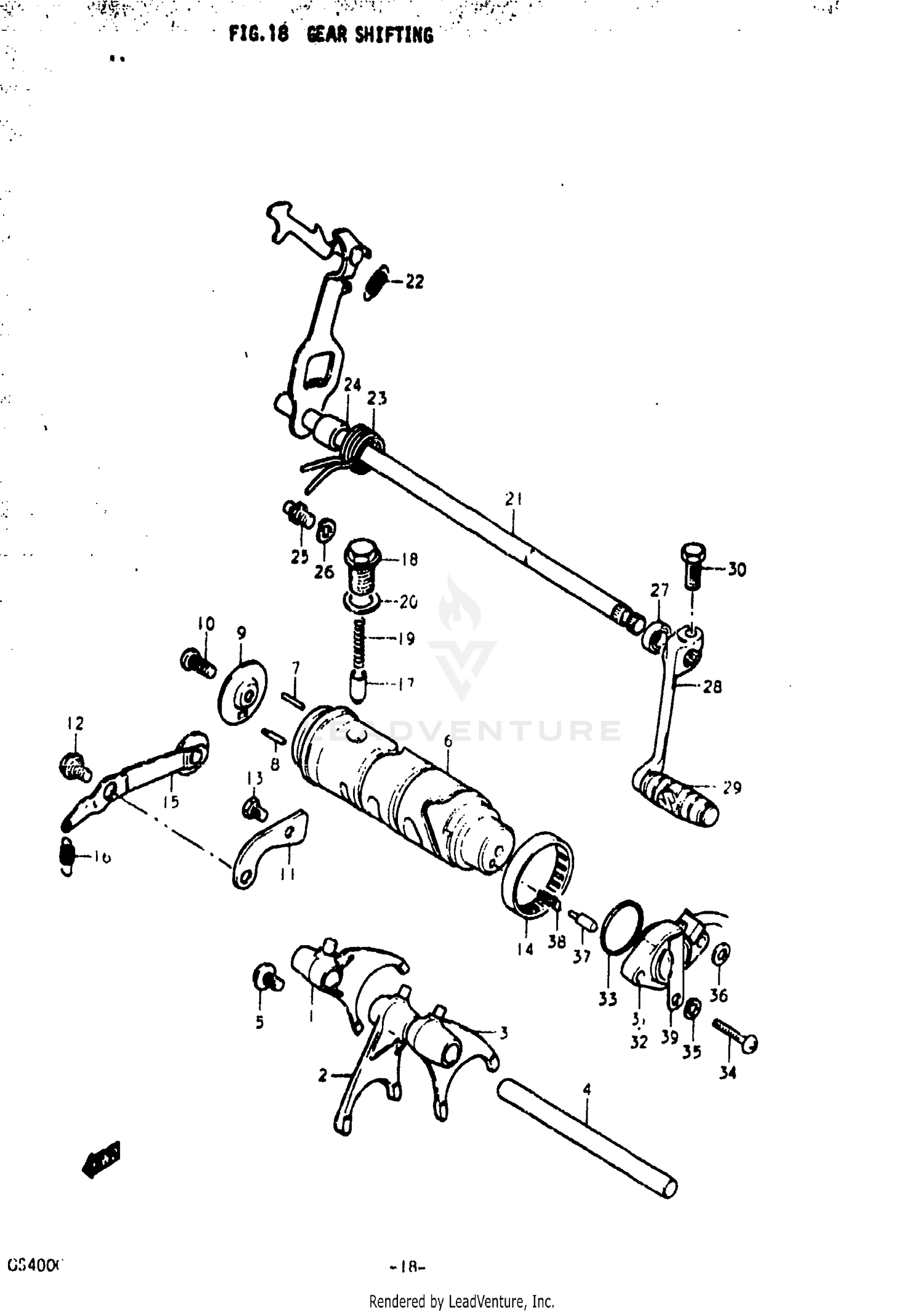

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, GEAR SHIFTING NO.1
25211-44000
Superseded by 25211-44001
|
$86.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, GEAR SHIFTING NO.2
25221-44000
Superseded by 25221-44001
|
$86.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, GEAR SHIFTING NO.3
25231-44000
|
$86.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEAR SHIFT FORK NO.1
25411-31000
Superseded by 25411-18900
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02142-06108
|
$0.48 | ||
|
Unavailable |
|||
|
#6
CAM, GEAR SHIFTING
25311-44000
|
$64.90 | ||
|
Unavailable |
|||
|
#7
PIN
09261-04001
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
09209-04013
|
$3.24 | ||
|
Unavailable |
|||
|
#9
HOLDER, DRIVE PIN
25322-44000
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-06168
Superseded by 02112-06167
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GUIDE, CAM
25341-44000
Superseded by 25341-33300
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
09111-06019
Superseded by 09111-06054
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01107-06128
Superseded by 01500-06127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
09263-40001
|
$31.01 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, CAM NO.1
25350-44000
|
$14.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
09443-09007
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, SELECT CAM
25351-18000
Superseded by 25351-39300
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, STOPPER
25352-11000
Superseded by 25352-11010
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
09440-05018
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
09168-14004
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SHAFT, GEAR SHIFTING
25510-44000
|
$54.74 | ||
|
Unavailable |
|||
|
#22
SPRING
09443-07013
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
09444-26017
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER
09180-17068
|
$5.13 | ||
|
Unavailable |
|||
|
#25
STOPPER, ARM
25671-01000
Superseded by 25671-01011
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
LEVER ASSY, GEAR SHIFTING
25600-44000
|
$67.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
.RUBBER,GEAR SHIFT PEDAL
25652-16500
Superseded by 25652-16510
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, REAR
01107-08208
Superseded by 01500-08207
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#31
BODY, SWITCH
37720-45010
Superseded by 37720-45100
|
$109.47 | ||
|
Available to order. Add to View Price |
|||
|
#32
BODY, GEAR SHIFTING SWITCH
37720-44600
|
$53.37 | ||
|
Available to order. Add to View Price |
|||
|
#33
O RING (D:2.4,ID:26.2)
09280-26003
Superseded by 09280-26005
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW
02111-05207
Superseded by 02112-05207
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
08322-21058
Superseded by 08322-01057
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CONTACT
09209-05011
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING
09440-04010
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP, GENERATOR LEAD WIRE
31497-44000
|
$0.85 | ||
|
Unavailable |
|||
