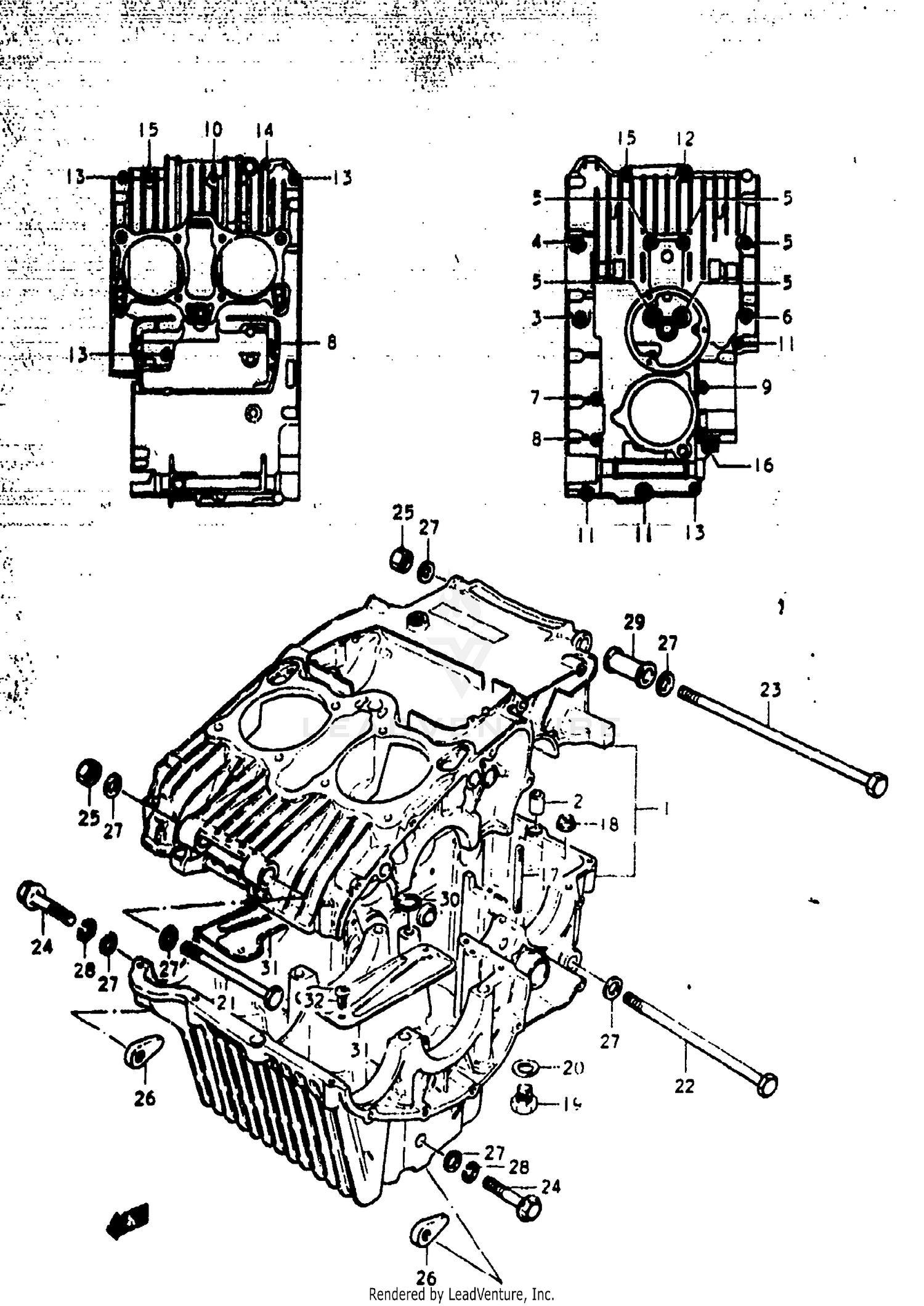

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11300-44812
|
$589.27 | ||
|
Unavailable |
|||
|
#2
PIN
09206-13001
Superseded by 04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, UPPER
09103-08025
Superseded by 09103-08098
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01517-08958
Superseded by 01550-08957
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01517-08908
Superseded by 01550-08907
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01517-08858
Superseded by 01550-0885B
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (6X115)
09103-06027
Superseded by 09103-06052
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01517-06908
Superseded by 01550-06907
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01517-06708
Superseded by 01550-06707
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01517-06658
Superseded by 01550-06657
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01517-06608
Superseded by 01550-06607
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (CHROME)
01517-06458
Superseded by 01550-06457
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01517-06408
Superseded by 01550-06407
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01517-06358
Superseded by 01550-06357
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT
01517-06308
Superseded by 01550-06307
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, MUF SPRT,RR
01517-08458
Superseded by 01550-08457
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,STUD
01421-06408
Superseded by 01421-0640A
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09159-06017
Superseded by 08319-31067
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT 10X125
09100-10051
Superseded by 09100-10274
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
09100-10092
Superseded by 41189-17X00
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, ENGINE MOUNTING
09100-10110
|
$10.13 | ||
|
Unavailable |
|||
|
#24
BOLT
01517-10458
Superseded by 01550-1045B
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
09159-10011
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
09159-10020
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
08322-11108
Superseded by 08322-01107
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER (L:50)
09180-10046
Superseded by 11610-44010
|
$9.96 | ||
|
Unavailable |
|||
|
#30
O-RING (D:2.4,ID:11.8)
09280-12005
Superseded by 09280-12012
|
$5.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PLATE, OIL SEPARATOR
11521-44000
|
$0.82 | ||
|
Unavailable |
|||
|
#32
SCREW
02112-06088
Superseded by 02112-06087
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
