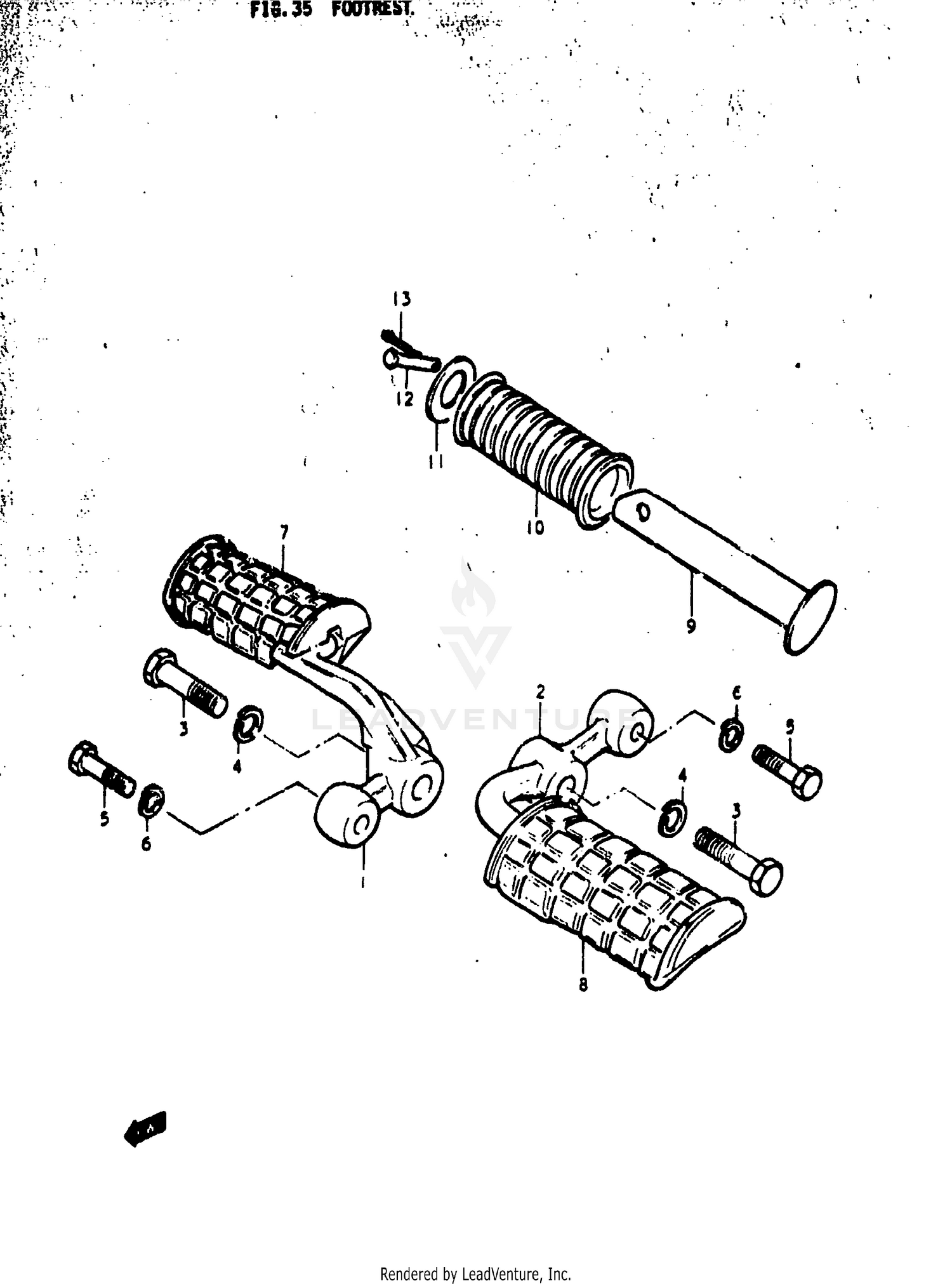

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FRONT FOOTRETT RH
43511-44000-019
|
$36.04 | ||
|
Unavailable |
|||
|
#2
BAR, FRONT FOOTREST LH
43521-44000-019
|
$38.35 | ||
|
Unavailable |
|||
|
#3
BOLT
09100-10007
Superseded by 09100-10287
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK WASHER
08321-21106
Superseded by 08321-0110A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01107-08408
Superseded by 01500-0840A
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RUBBER, FRONT FOOTREST RH
43551-45000
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, FRONT FOOTREST LH
43551-36200
Superseded by 43551-36000
|
$21.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAR,FOOTREST RUBBER
43610-03001
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER
43612-03001
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
.WASHER (19.5X32X2)
09160-19006
Superseded by 09160-19024
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
09200-06010
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
04111-20208
Superseded by 04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
