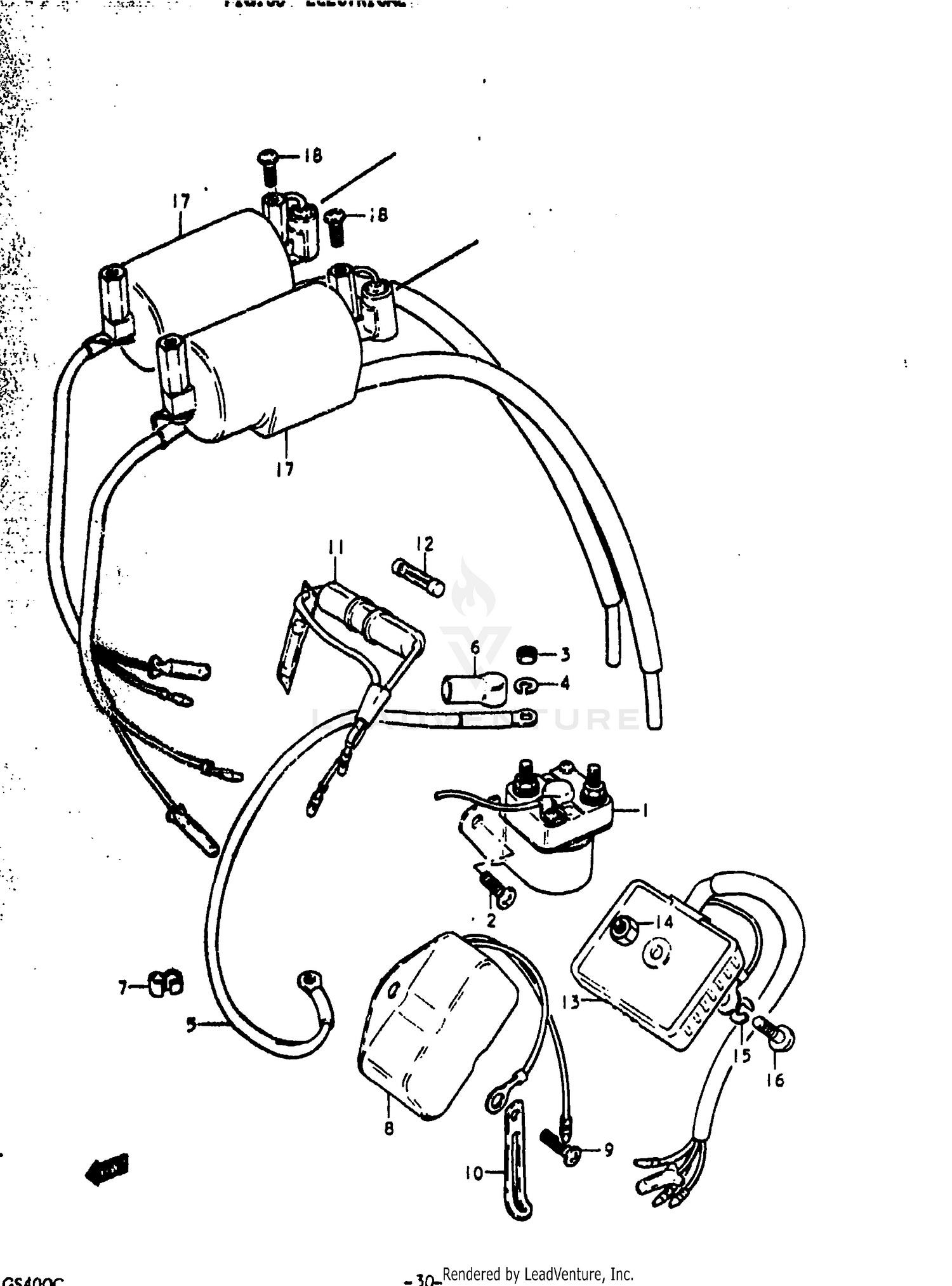

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STAR
31800-37020
Superseded by 31800-37021
|
$90.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02112-06088
Superseded by 02112-06087
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
.NUT
08310-22068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
LEAD WIRE, STARTING MOTOR
33850-24102
Superseded by 33850-47010
|
|||
|
Unavailable |
|||
|
#6
.CAP, STARTER MOTOR
31861-35100
Superseded by 31861-48B10
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
09408-00002
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
REGULATOR, VOLTAGE
32500-45021
|
$713.64 | ||
|
Unavailable |
|||
|
#9
SCREW
02112-06108
Superseded by 02112-06107
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09404-06401
Superseded by 09404-06039
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE CASE ASSY
36740-15010
Superseded by 36740-15011
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE
09481-15001
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
RECTIFIER
32800-44010
|
$237.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
.NUT
08310-11068
Superseded by 08310-00067
|
$2.22 | ||
|
Unavailable |
|||
|
#15
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
Unavailable |
|||
|
#16
SCREW
02112-06258
Superseded by 02112-06257
|
$2.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NO DESCRIPTION AVAILABLE
33410-44020
Superseded by 33410-44021
|
$287.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
NO DESCRIPTION AVAILABLE
33420-44020
Superseded by 33410-44021
|
$287.55 | ||
|
Unavailable |
|||
|
#18
SCREW
02112-05108
Superseded by 02112-05107
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
CONDENSER
33421-44020
|
$43.15 | ||
|
Unavailable |
|||
