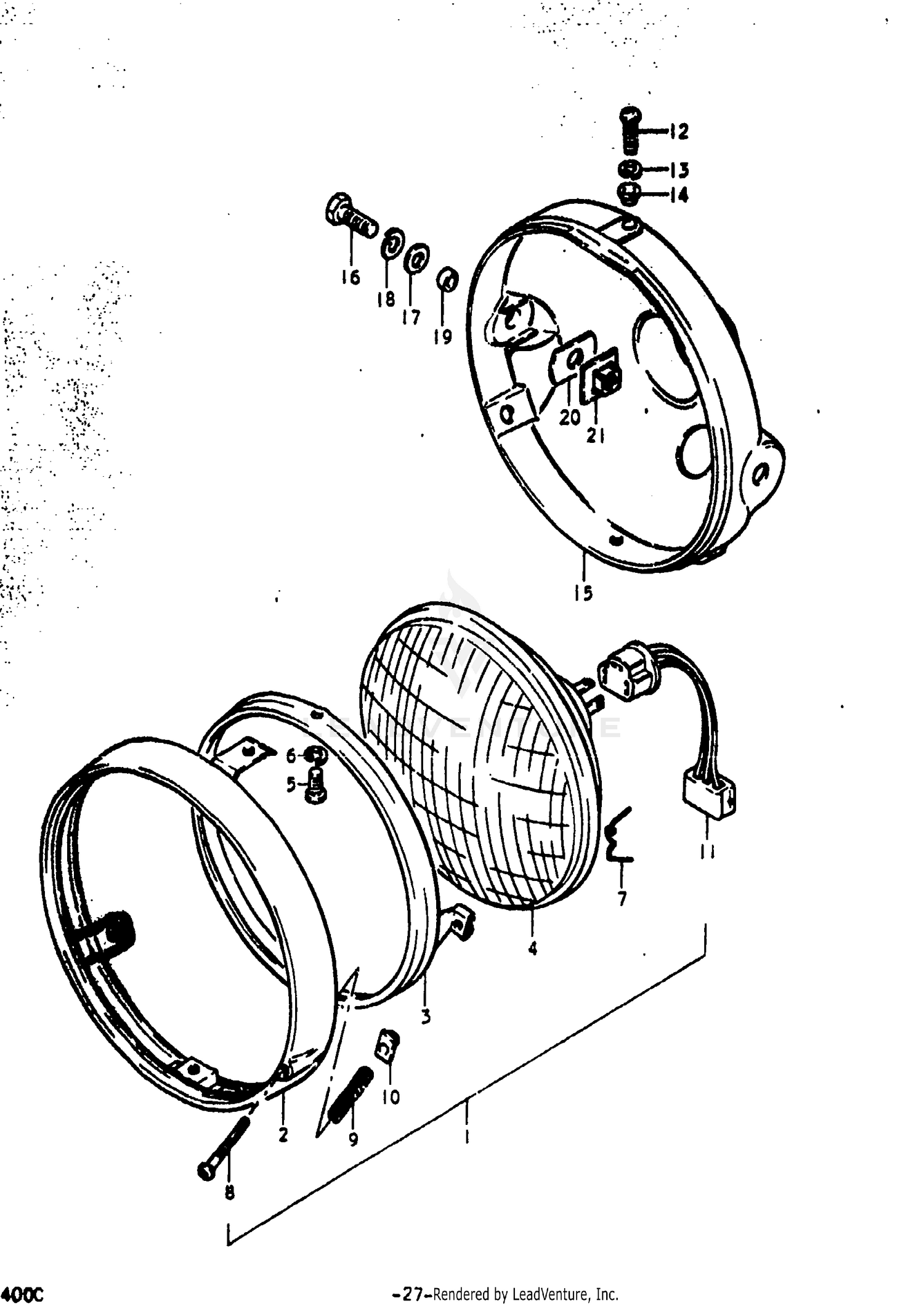

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-44611
|
$84.20 | ||
|
Unavailable |
|||
|
#2
RIM
35111-44610
|
$32.06 | ||
|
Unavailable |
|||
|
#3
RING
35127-33630
|
$16.11 | ||
|
Unavailable |
|||
|
#4
UNIT
35121-44611
|
$62.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
35136-29610
|
$2.35 | ||
|
Unavailable |
|||
|
#6
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
35172-33630
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, ADJUSTING
35151-33630
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
35154-33630
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
35152-15611
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEAD WIRE, HEADLAMP
36852-33630
Superseded by 36853-30500
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
09125-05022
Superseded by 09125-05115
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09162-05003
Superseded by 09162-05002
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09169-06021
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOUSING, HEADLAMP
51811-44000-291
|
$83.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01204-08257
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPACER
09180-08030
Superseded by 09180-08187
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CUSHION
09329-12002
Superseded by 09329-12005
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
51860-45000
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
