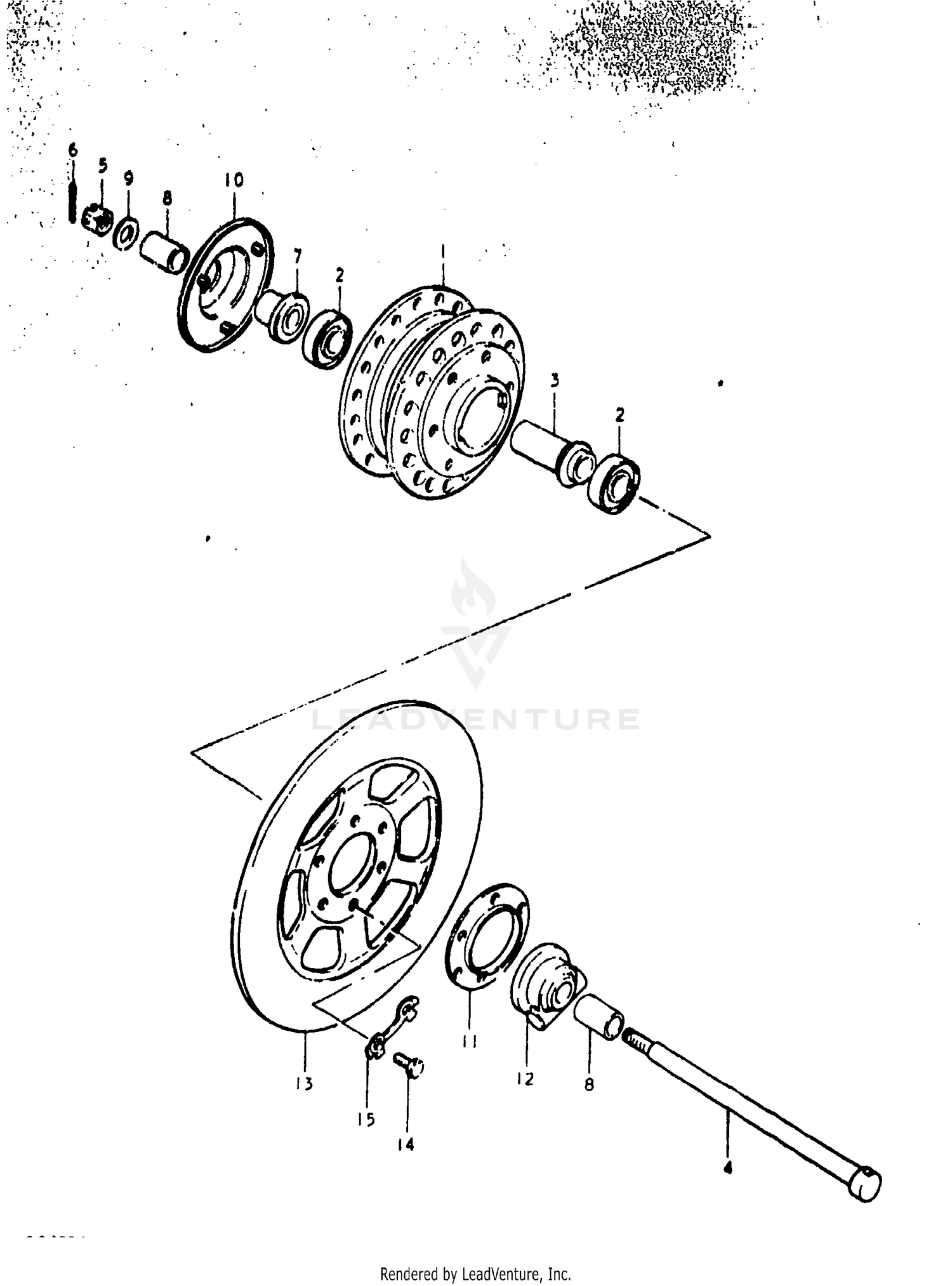

Front Hub (35400c) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
54111-47000
Superseded by 54111-47002
|
$172.55 | ||
|
Unavailable |
|||
|
#2
BEARING
08123-63020
Superseded by 08123-6302B
|
$27.69 | ||
|
Unavailable |
|||
|
#3
SPACER
54730-18400
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE,FRONT
54711-33002
Superseded by 54711-3300V
|
$44.80 | ||
|
Unavailable |
|||
|
#5
NUT
08314-31128
Superseded by 08314-3112A
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04111-30308
Superseded by 04111-3030A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, AXLE, RH
54740-18401
Superseded by 54740-18402
|
$24.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER, AXLE
09180-15034
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08322-21128
Superseded by 08322-01127
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, RH
54871-45000
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, LH
54871-45010
|
$12.88 | ||
|
Unavailable |
|||
|
#12
BOX ASSY,SPEEDO
54600-18402
Superseded by 54600-18403
|
$76.04 | ||
|
Unavailable |
|||
|
#13
DISK, FRONT BRAKE
59211-44000
|
$183.52 | ||
|
Unavailable |
|||
|
#14
BOLT
09100-08140
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09169-08016
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
