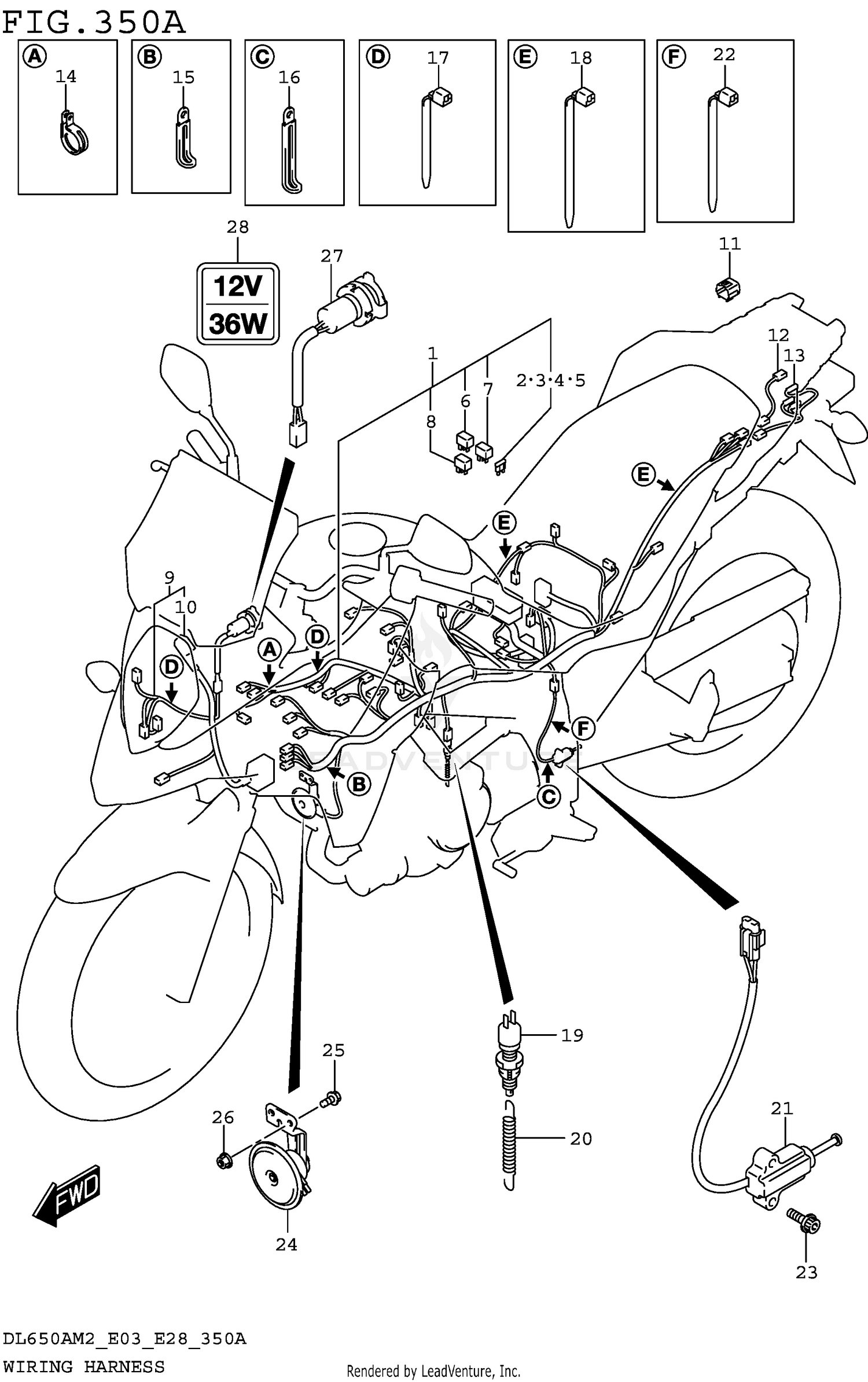

Wiring Harness (dl650am2 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING NO.1
36610-28K10
Superseded by 36610-28K11
|
$735.53 | ||
|
Unavailable |
|||
|
#2
.FUSE (3A)
09481-03501
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (10A)
09481-10504
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (15A)
09481-15504
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FUSE (25A)
09481-25504
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#8
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#9
HARNESS,WIRING NO.2
36620-28K00
|
$228.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
.COVER,CONNECTOR
36618-41G00
|
$6.75 | ||
|
Unavailable |
|||
|
#11
.CAP, TS
36654-06J01
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE,REAR COMB LEAD
36853-28K00
|
$31.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE,REAR TURNSIGNAL LEAD
36856-28K00
|
$33.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09403-26402
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP (L:80)
09404-06030
|
|||
|
Unavailable |
|||
|
#16
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#17
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
SWITCH ASSY,STOP LAMP
37740-31D00
|
$37.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09443-06012
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH ASSY,SIDE STAND
37840-06G01
Superseded by 37840-06G02
|
$68.14 | ||
|
Unavailable |
|||
|
#22
CLAMP (L:100)
09407-10404
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
HORN ASSY
38500-11J00
|
$94.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (6X16)
09118-06017
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
TERMINAL,POWER SOURCE
38850-31J00
|
$82.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
LABEL,MAX AMP
38852-28K01
|
$2.95 | ||
|
Unavailable |
|||
