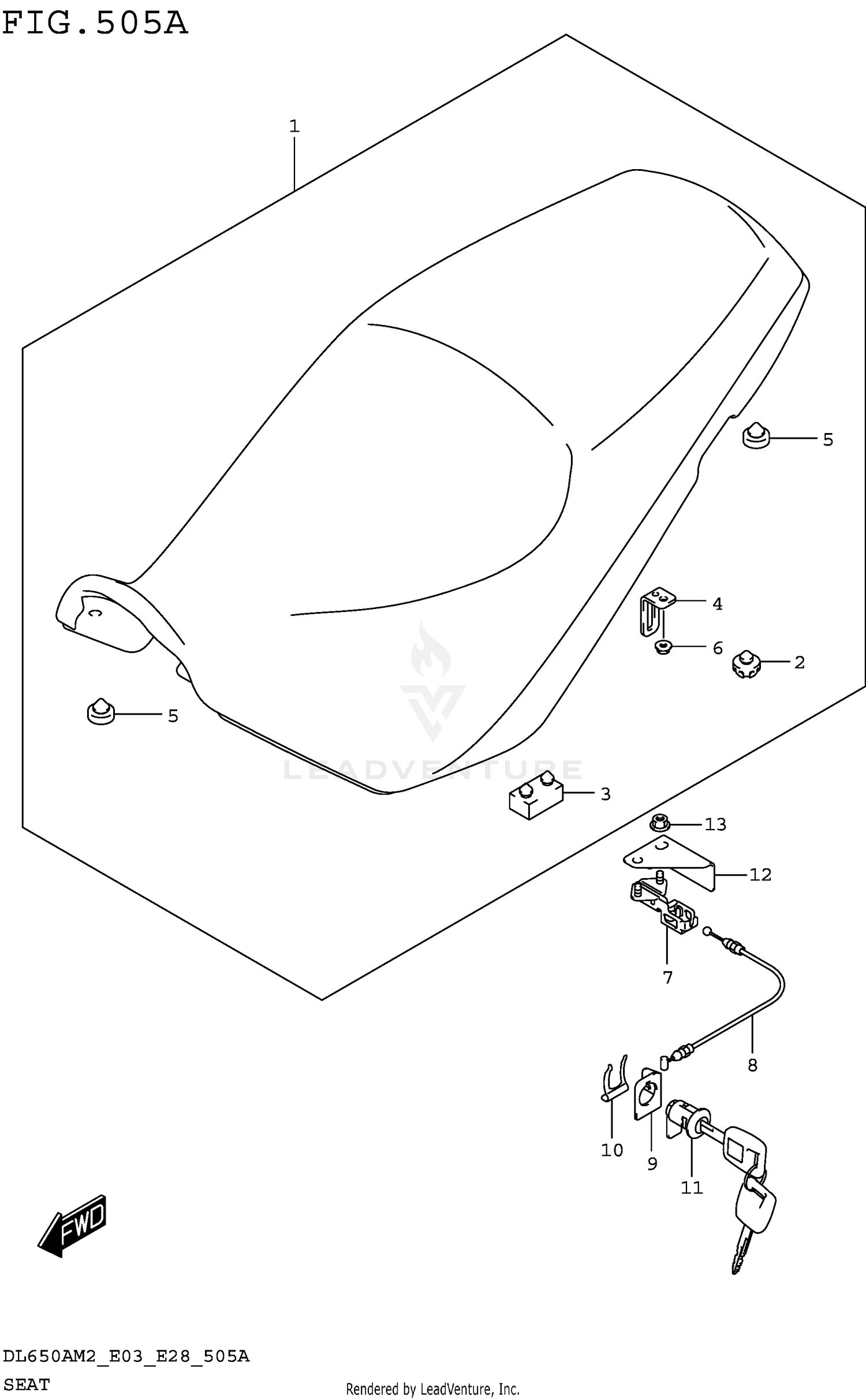

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-28K01-BGP
Superseded by 45100-28K02-BGP
|
$460.01 | ||
|
Unavailable |
|||
|
#2
.CUSHION, SEAT MONT
45148-20G90
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION
09321-08006
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
.STRIKER,SEAT LOCK
45212-18K00
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CUSHION
45148-28K00
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BRACKET,SEAT SUPPORT
45220-04K20
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE,SEAT LOCK
45280-28K00
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE,SEAT LOCK CABLE
45288-14F00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE,SEAT LOCK ASSY
45289-28K00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET,SEAT
95700-14810
|
$137.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUARD,SEAT LOCK
45288-28K00
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
Unavailable |
|||
