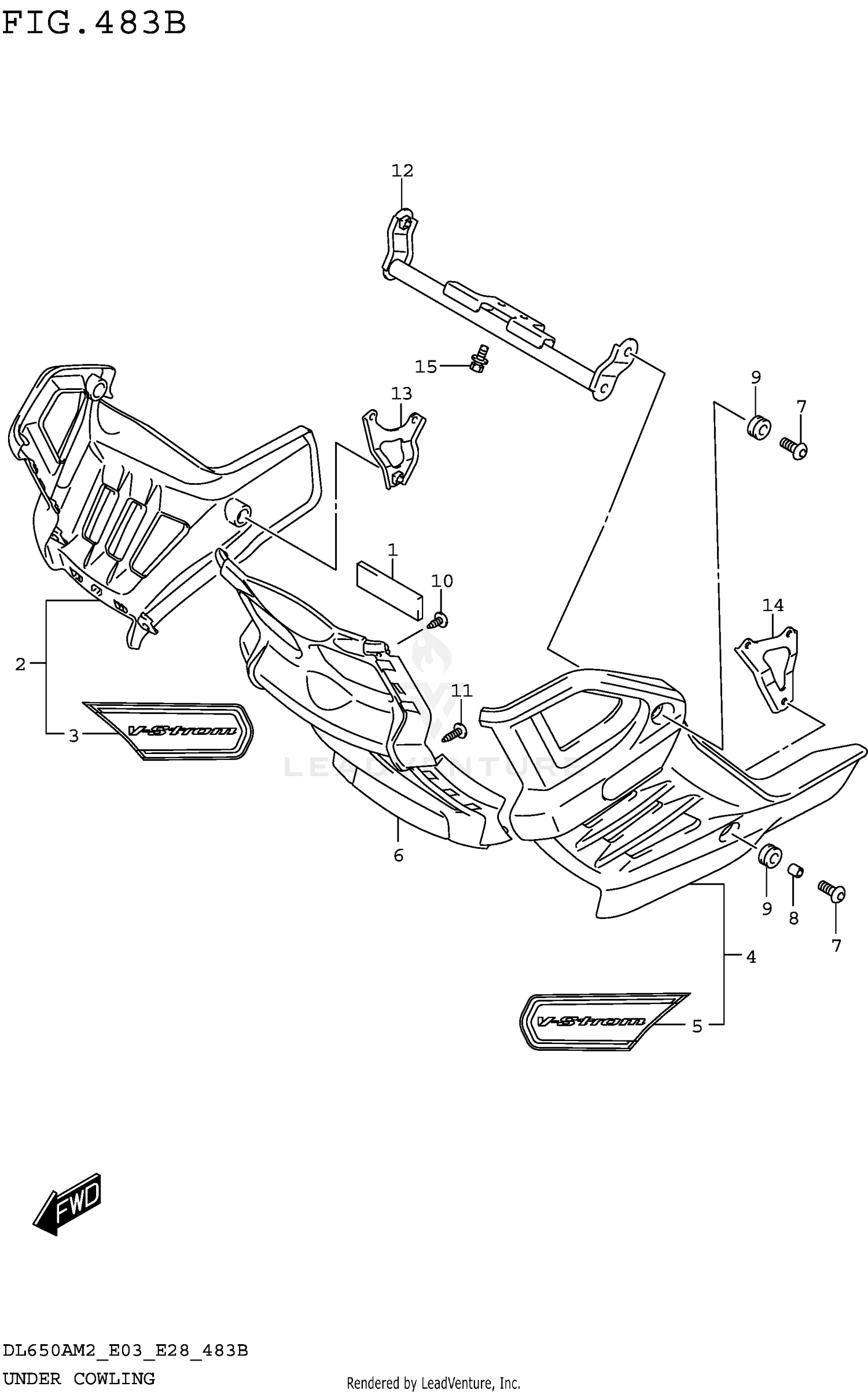

Under Cowling (dl650xam2 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION,FRAME COVER LOWER NO.
47612-44H00
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNDER COWL RH (BLACK)
94470-11J00-291
|
$134.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
.EMBLEM,UNDER COWL RH
68181-11J00
|
$37.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
UNDER COWL LH (BLACK)
94480-11J00-291
|
$134.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
.EMBLEM,UNDER COWL LH
68191-11J00
|
$37.23 | ||
|
Available to order. Add to View Price |
|||
|
#6
COWLING,UNDER CTR (BLACK)
94491-11J00-291
|
$66.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (6X16)
09139-06139
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (6.5X9X9)
09180-06263
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03541-0510B
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
03541-0516B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,UNDER COWLING FRONT
94520-11J00
|
$42.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET,UNDER COWLING RH
94530-11J00
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,UNDER COWLING LH
94540-11J00
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X16)
09116-06006
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
