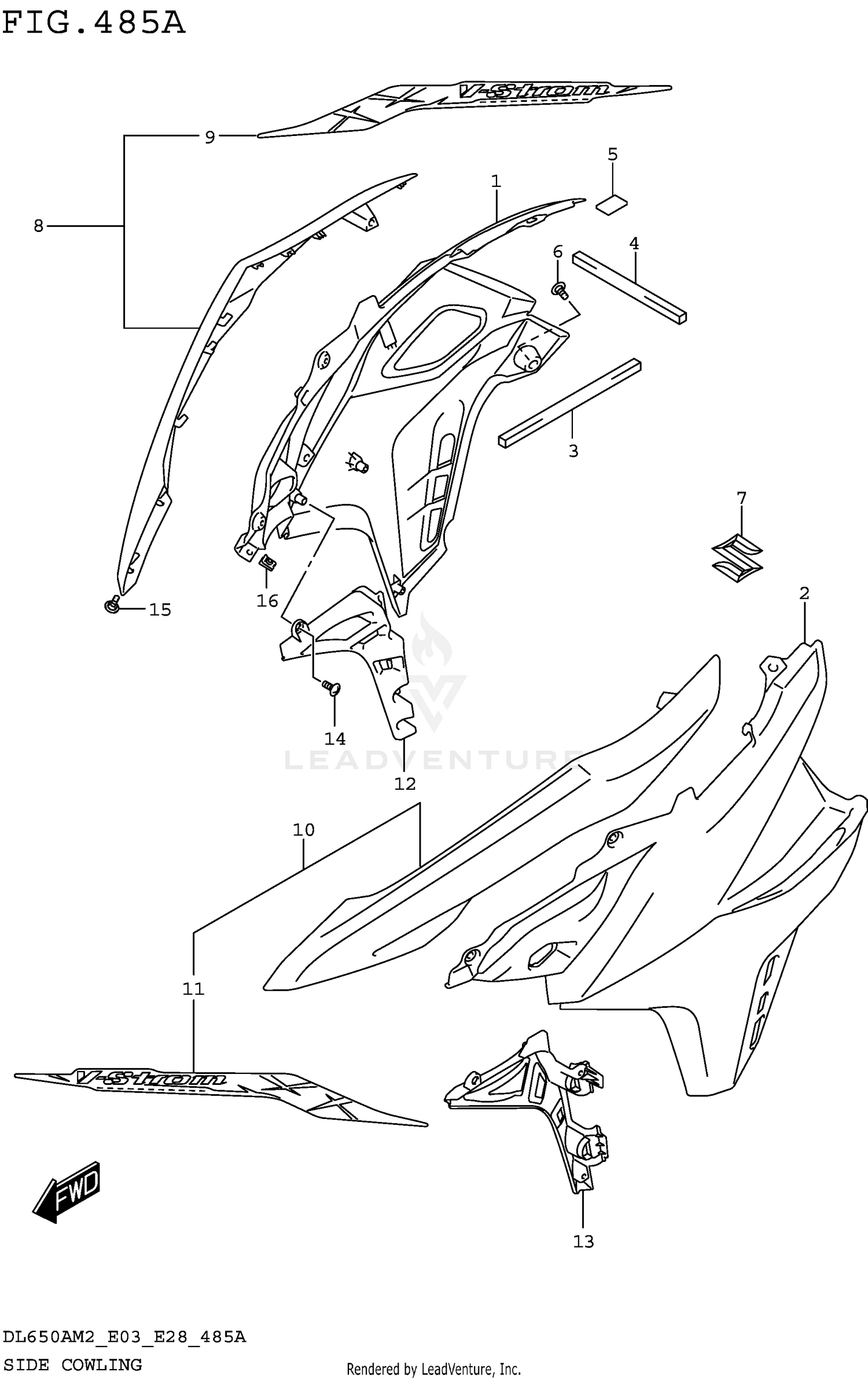

Side Cowling (dl650am2 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,SIDE COWL RH
94413-28K00
|
$140.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER,SIDE COWL LH
94414-28K00
|
$147.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,TANK COVER SIDE NO.1
44176-31J00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION,TANK COVER SIDE NO.3
44178-31J00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION, COVER INNER
47829-10F00
Superseded by 44612-13600
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
47913-31J00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM,S
68111-47HA0
|
$52.21 | ||
|
Available to order. Add to View Price |
|||
|
#8-1
COVER, SIDE COWL RH (BLUE)
94420-28K80-YKY
|
$117.83 | ||
|
Unavailable |
|||
|
#8-2
COVER, SIDE COWL RH (WHITE)
94420-28K80-YUH
|
$123.91 | ||
|
Available to order. Add to View Price |
|||
|
#8-3
COVER, SIDE COWL RH (BLACK)
94420-28K80-YVB
|
$117.83 | ||
|
Unavailable |
|||
|
#9-1
.TAPE, COVER SIDE RH
68275-28K80-CFT
|
$37.35 | ||
|
Unavailable |
|||
|
#9-2
.TAPE, COVER SIDE RH
68275-28K80-B5Z
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#9-3
.TAPE, COVER SIDE RH
68275-28K80-CFU
|
$37.35 | ||
|
Unavailable |
|||
|
#10-1
COVER, SIDE COWL LH (BLUE)
94430-28K80-YKY
|
$120.06 | ||
|
Unavailable |
|||
|
#10-2
COVER, SIDE COWL LH (WHITE)
94430-28K80-YUH
|
$126.25 | ||
|
Available to order. Add to View Price |
|||
|
#10-3
COVER, SIDE COWL LH (BLACK)
94430-28K80-YVB
|
$120.06 | ||
|
Unavailable |
|||
|
#11-1
.TAPE, COVER SIDE LH
68285-28K80-CFT
|
$37.35 | ||
|
Unavailable |
|||
|
#11-2
.TAPE, COVER SIDE LH
68285-28K80-B5Z
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#11-3
.TAPE, COVER SIDE LH
68285-28K80-CFU
|
$37.35 | ||
|
Unavailable |
|||
|
#12
COVER,SIDE COWL INNER RH
94461-28K00
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,SIDE COWL INNER LH
94462-28K00
|
$16.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
03541-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (5X13)
09139-05091
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
