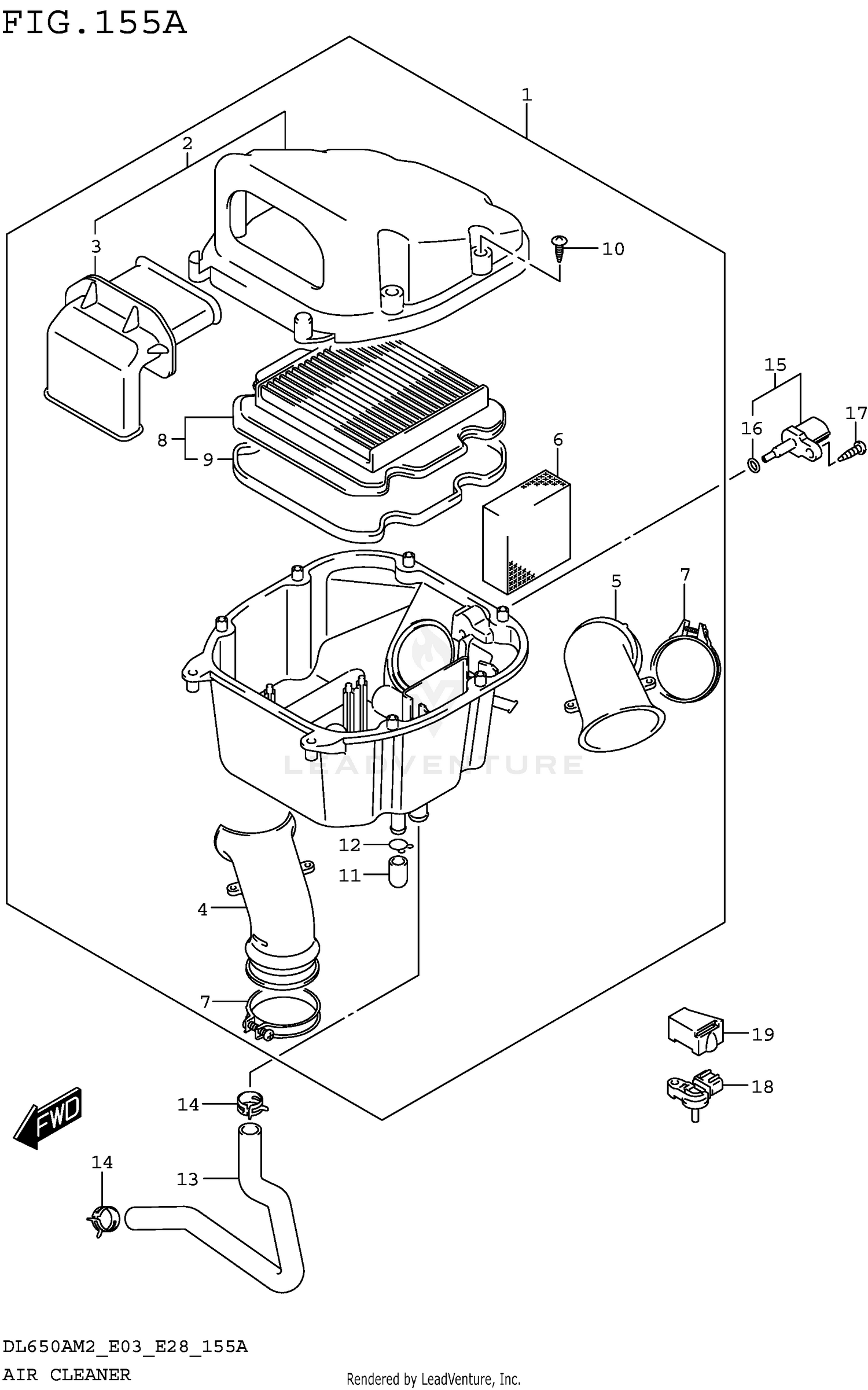

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13700-11J02
|
$271.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CAP,AIR CLEANER
13740-11J01
|
$68.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
..TUBE,INLET
13891-27G01
|
$59.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
.TUBE, OUTLET A
13881-27G11
|
$24.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
.TUBE, OUTLET B
13882-27G11
|
$24.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
.FILTER,BREATHER
13788-11J00
|
$21.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CLAMP,OUTLET TUBE
13826-44H01
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
.FILTER ASSY
13780-27G10
|
$63.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
..GASKET,AIR CLEANER
13746-06G00
|
$22.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SCREW
03141-0516A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
.PLUG
13878-10G01
|
$6.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLIP
09401-14301
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE,BREATHER
13850-11J00
|
$56.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
09401-20405
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR,AIR TEMP
13650-41F10
|
$71.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
.O-RING
13655-41F10
|
$7.63 | ||
|
Unavailable |
|||
|
#17
SCREW
03511-0516A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR,AIR PRESSURE
18590-18K00
|
$350.63 | ||
|
Available to order. Add to View Price |
|||
|
#19
.HOLDER,SENSOR
18595-04K01
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
