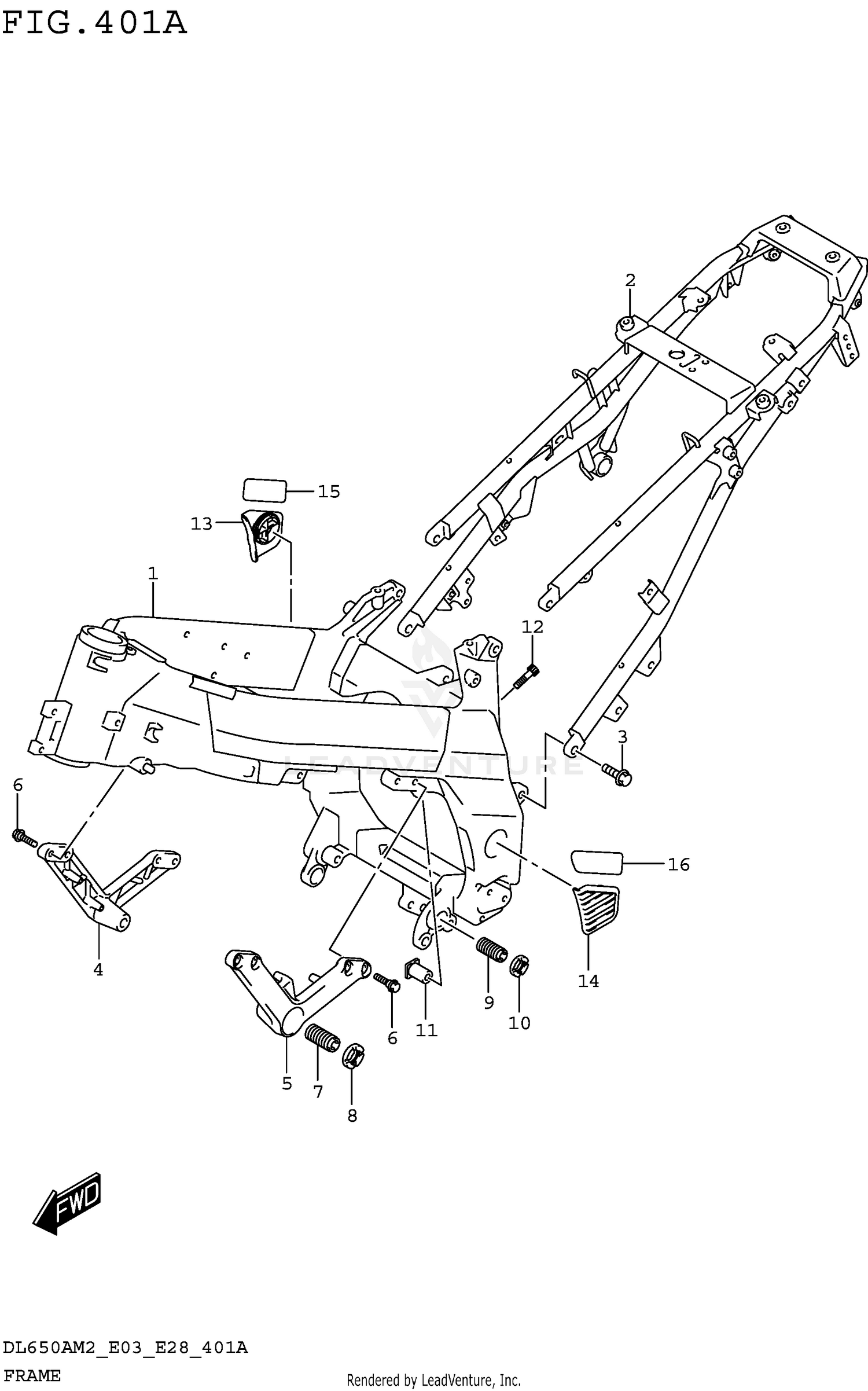

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-27GB0-YAP
|
$4,374.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
RAIL, SEAT
41200-28K01
|
$863.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (10X30)
09103-10379
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET,ENG MTG RH (BLACK)
41911-06G90-YAP
|
$662.68 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET,ENG MTG LH (BLACK)
41912-06G90-YAP
|
$662.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X30)
09106-08193
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,CRANK CASE ADJUST CTR
41923-16G00
|
$35.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,CRANK CASE ADJUST CTR
41922-19F20
|
$21.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CRANK CASE ADJUST LWR
41921-16G01
|
$26.50 | ||
|
Unavailable |
|||
|
#10
NUT,CRANK CASE ADJUST LWR
41922-33E20
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,MOUNTING REAR UPPER RH
41941-19F01
|
$45.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X38)
09106-08168
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,PIVOT RH
43585-27G10
|
$26.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,PIVOT LH
43595-27G00
|
$25.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
TAPE,FRAME PIVOT RH
43585-28K00
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
TAPE,FRAME PIVOT LH
43595-28K00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
