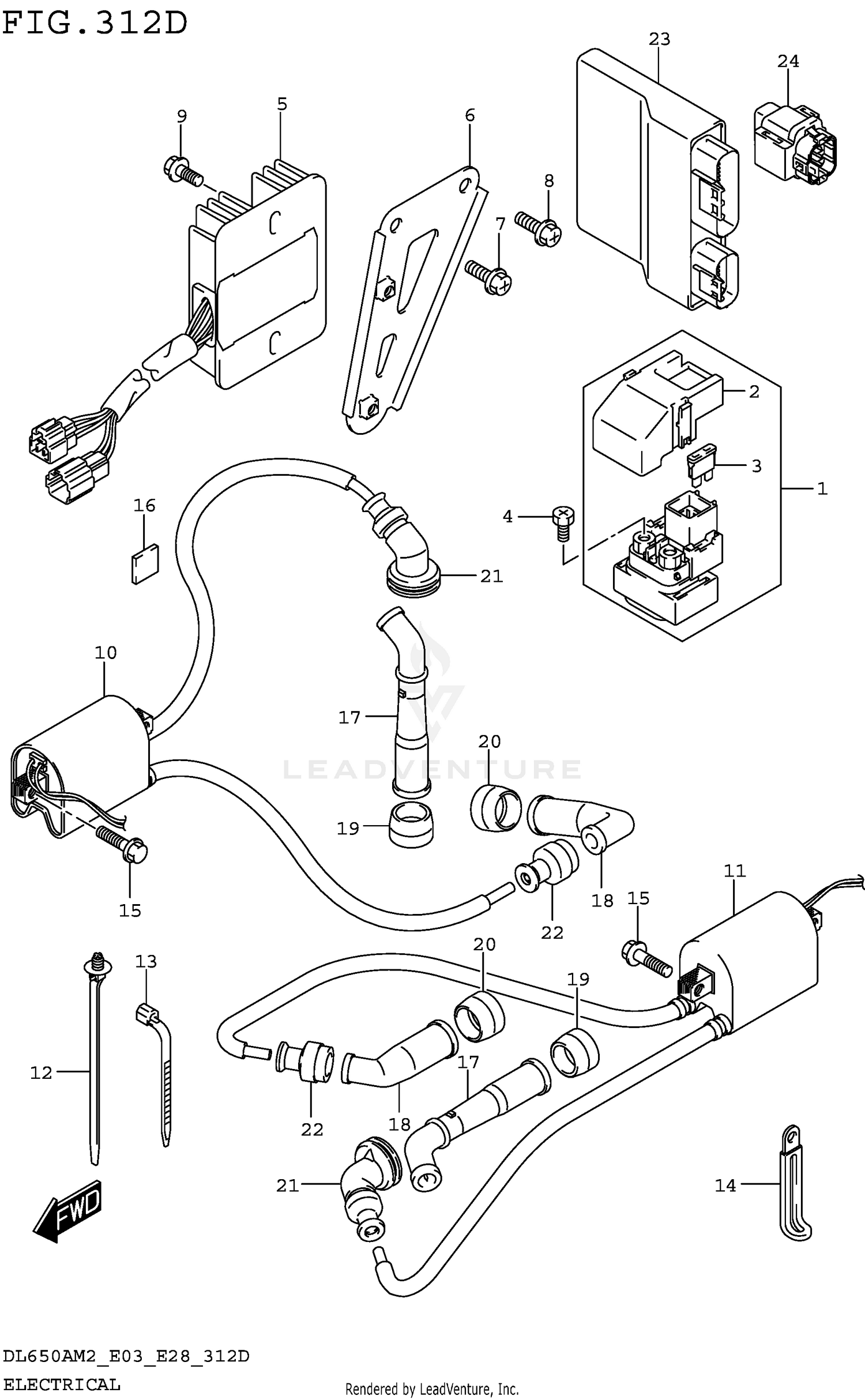

Electrical (dl650xam2 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-06G02
|
$86.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER
31861-47E00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (30A)
09481-30101
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-47H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET,RECT FTG
32830-11J00
|
$11.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (6X16)
02162-0616A
Superseded by 02162-0616B
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02162-0610A
|
|||
|
Unavailable |
|||
|
#9
SCREW (6X16)
02162-0616A
Superseded by 02162-0616B
|
$2.57 | ||
|
Unavailable |
|||
|
#10
COIL ASSY,IGNITION
33410-27G02
|
$141.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
COIL ASSY,IGNITION
33420-27G03
|
$148.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#15
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION,HELMET BOX (60X60X3.0
92213-33G00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP ASSY,SPARK PLUG
33510-17G00
|
$43.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP ASSY, SPARK PLUG
33510-20E00
|
$39.06 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL,SPARK PLUG
33541-23E10
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, SPARK PLUG
33541-47D00
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL,HIGH TENSION CORD
33542-17G01
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
CONTROL UNIT,FI
32920-28K52
|
$1,397.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
SENSOR ASSY, FUEL CUT
33960-27G00
|
$124.02 | ||
|
Available to order. Add to View Price |
|||
