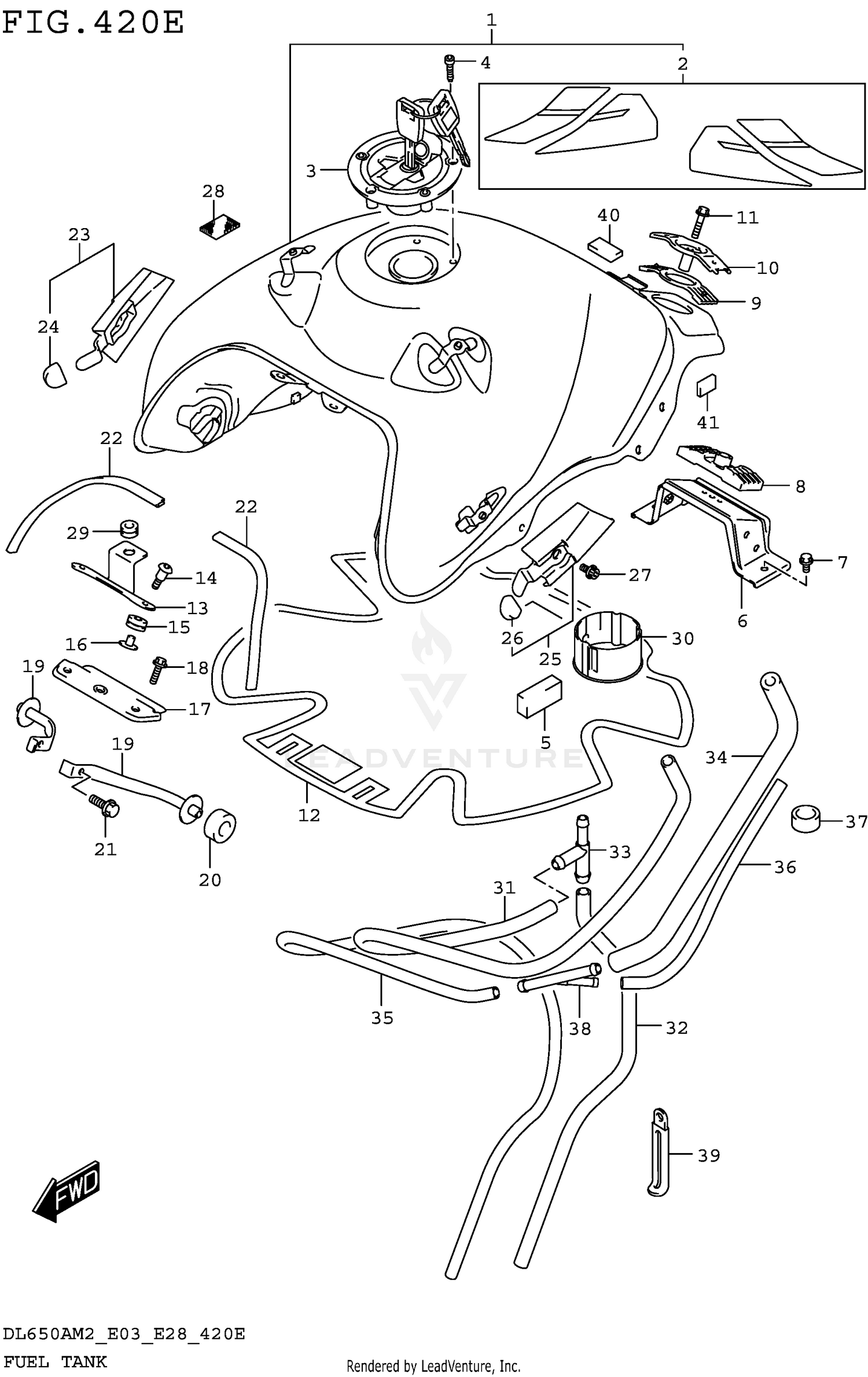

Fuel Tank (dl650xam2 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
TANK ASSY, FUEL (YELLOW)
44100-28KG0-YU1
|
$1,228.12 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
TANK ASSY, FUEL (WHITE)
44100-28KG0-YUH
|
$1,228.12 | ||
|
Available to order. Add to View Price |
|||
|
#1-3
TANK ASSY, FUEL (BLACK)
44100-28KG0-6UX
|
$1,208.04 | ||
|
Unavailable |
|||
|
#1-4
TANK ASSY, FUEL (BLUE)
44100-28KG0-YKY
|
$1,208.04 | ||
|
Unavailable |
|||
|
#2-1
.TAPE SET, FUEL TANK
68110-28K30-B5U
|
$71.06 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
.TAPE SET, FUEL TANK
68110-28K30-B5W
|
$71.06 | ||
|
Available to order. Add to View Price |
|||
|
#2-3
.TAPE SET, FUEL TANK
68110-28K30-CFV
|
$67.81 | ||
|
Unavailable |
|||
|
#2-4
.TAPE SET, FUEL TANK
68110-28K30-CFW
|
$67.81 | ||
|
Unavailable |
|||
|
#3
CAP SET,FUEL TANK FILLER
44200-17840
|
$185.24 | ||
|
Unavailable |
|||
|
#4
BOLT,FUEL TANK FILLER CAP
44244-11J00
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION,FUEL TANK SIDE
44541-28K00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET,FUEL TANK REAR
44550-06G10
|
$45.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X16)
01550-0816A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CUSHION,FUEL TANK RR LWR
44545-06G00
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK RR UPR
44542-06G00
|
$18.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,FUEL TANK REAR UP
44530-06G00
|
$16.52 | ||
|
Unavailable |
|||
|
#11
BOLT
01550-0835A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIELD,FUEL TANK CENTER
44194-11J00
|
$91.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET,FRONT COVER
44154-11J00
|
$12.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X25)
09139-06192
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION,FUEL TANK FRONT
44511-16G01
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER,FUEL TANK,FR
44512-16G00
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,FUEL TANK FRONT
44520-11J00
|
$15.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-0620B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET,FRONT SIDE
44560-11J00
|
$22.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION,FRONT SIDE BRKT
44543-31J01
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
MOLDING,FUEL TANK
68241-11J01
|
$20.26 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET,FUEL TANK COVER RH
44130-28K00
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
CUSHION
09329-18001
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BRACKET,FUEL TANK COVER LH
44140-28K00
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
CUSHION
09329-18001
|
$2.37 | ||
|
Unavailable |
|||
|
#27
BOLT
07120-0610A
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
FASTENER,COWLING (20X15X0.8)
44572-37H00
|
$12.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CUSHION
09320-06504
|
$6.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
VESSEL,FUEL TANK INNER
44121-28K01
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE,FUEL TANK DRAIN NO.1
44423-28K01
|
$20.18 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE,FUEL TANK DRAIN NO.2
44423-11J31
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#33
3 WAY
09367-08005
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE,FUEL TANK BRTHR NO.1
44424-28K00
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE,FUEL TANK BRTHR NO.2
09352-50005-690
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE,FUEL TANK BRTHR NO.3
09352-50005-160
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE (13.5X16.5X10)
09352-13162-010
|
$1.97 | ||
|
Unavailable |
|||
|
#38
3 WAY
09367-06007
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP (L:80)
09404-06030
|
|||
|
Unavailable |
|||
|
#40
CUSHION,SEAT TAIL COV LWR RR
45516-01H00
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#41
CUSHION,FRAME COVER FR RR
47122-28K00
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
