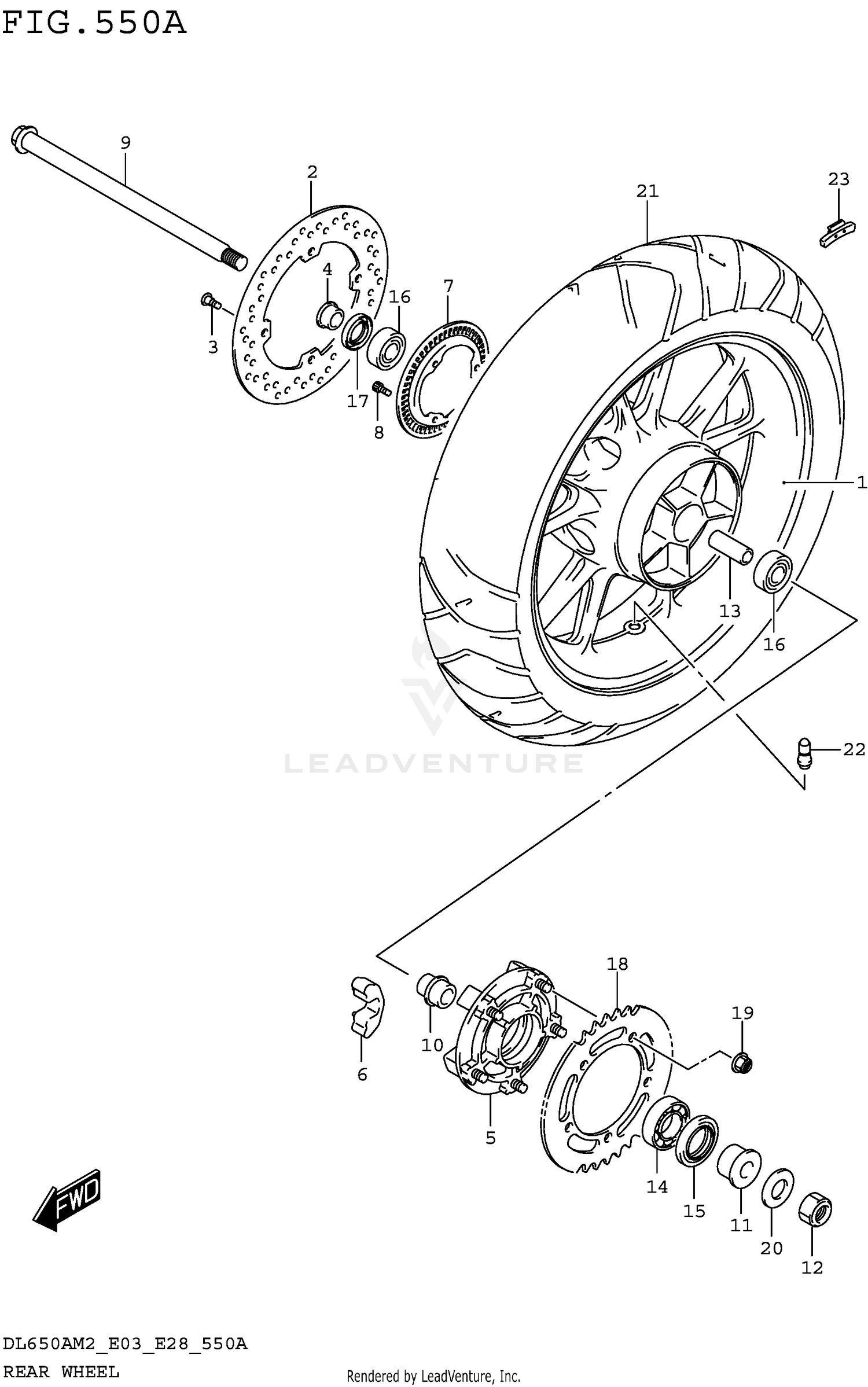

Rear Wheel (dl650am2 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL,REAR (17M/CXMT4.00,BLAC
64111-28K00-019
|
$656.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISC,RR BRAKE
69211-06G10
|
$361.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X21)
09106-08160
|
$4.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SPACER,REAR AXLE RH
64741-10F00
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM,REAR SPROCKET
64610-35F40
|
$346.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
ABSORBER,REAR HUB SHOCK
64651-35F10
|
$15.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING,SPEED SENSOR (50T)
54162-28K00
|
$64.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-0512A
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE,REAR
64711-03F00
|
$152.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER,REAR SPROCKET DRUM
64733-06G00
|
$36.61 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,REAR AXLE LH
64751-27G00
|
$34.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-18007
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (20.8X27.2X124)
09180-20112
|
$40.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING (32X65X17)
09262-32024
|
$49.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (39X65X7)
09285-39001
|
$13.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BEARING
08123-6204B
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL,OIL (27X47X7)
09285-28004
|
$15.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET,REAR (47T-525)
64511-27G00
|
$91.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08319-3110A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (19.5X32X2)
09160-19025
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE,REAR (BATTLAX ADVENTURE
65110-28K00
|
$453.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23-1
BALANCER,WHEEL NO.1 (10G)
55411-22H00
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#23-2
BALANCER,WHEEL NO.2 (20G)
55412-22H00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#23-3
BALANCER,WHEEL NO.3 (30G)
55413-22H00
|
$12.95 | ||
|
Available to order. Add to View Price |
|||
