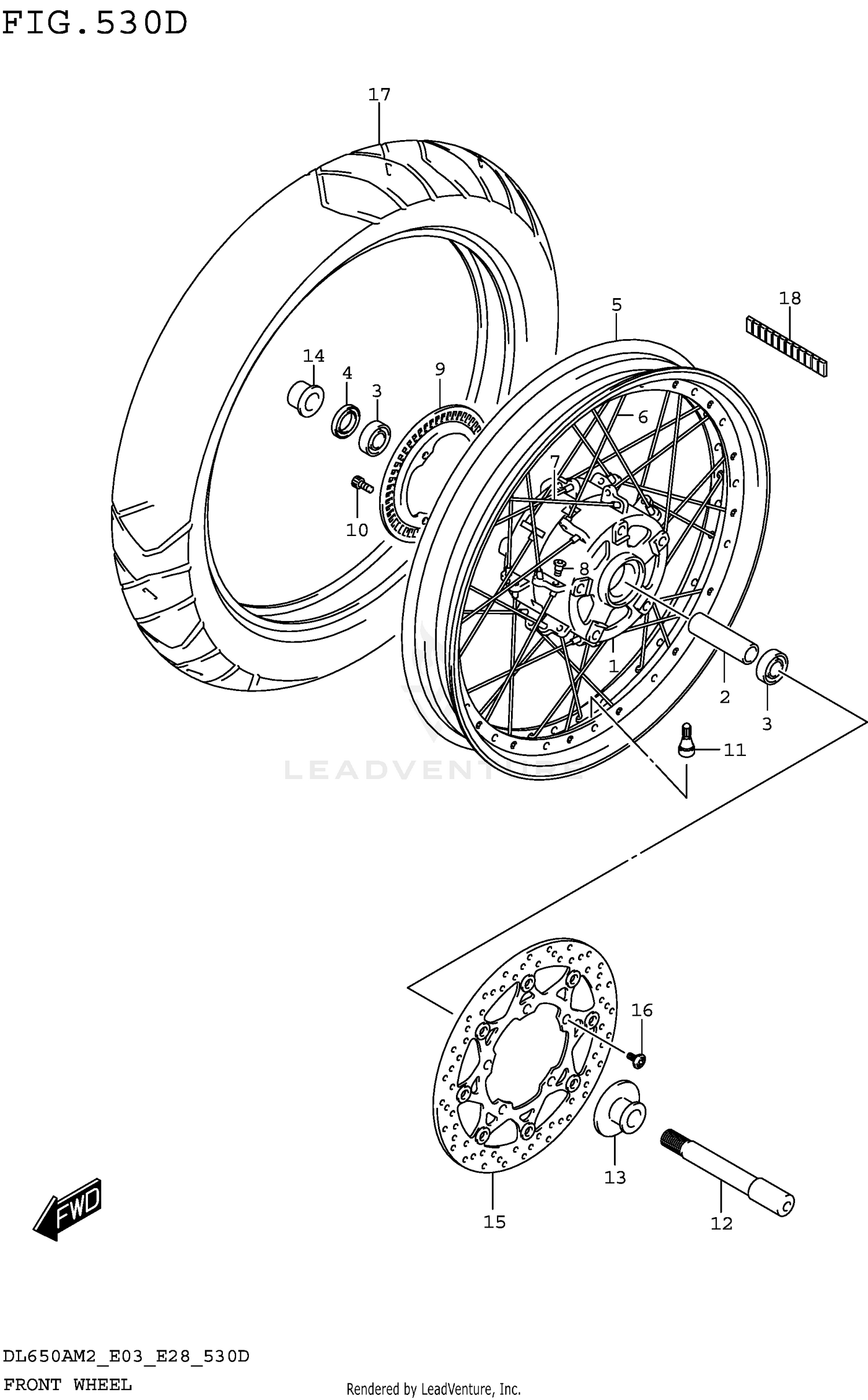

Front Wheel (dl650xam2 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,FRONT
54111-11J00
|
$815.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER (17.5X25X88)
09180-17067
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING,FRONT HUB
08123-6203B
|
$24.64 | ||
|
Unavailable |
|||
|
#4
SEAL,FRONT HUB BRG DUST
54841-28K00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
RIM,FR WHEEL (19M/CXMT2.50)
55311-11J10
|
$840.26 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
RIM, FR WHEEL (19M/CXMT2.50)
55311-11J20
|
$978.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE, FRONT WHEEL INNER
55321-11J01
|
$7.46 | ||
|
Unavailable |
|||
|
#7
SPOKE, FRONT WHEEL OUTER
55322-11J01
|
$7.46 | ||
|
Unavailable |
|||
|
#8
NIPPLE,WHEEL
55326-11J00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING,SPEED SENSOR (50T)
54162-28K00
|
$64.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07130-0512A
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
AXLE,FRONT
54711-08F10
|
$121.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER,FRONT AXLE LH
54750-31F00
|
$28.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER,FRONT AXLE
54751-10G01
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
DISC,FRONT BRAKE
59210-44G11
|
$462.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X21)
09106-08160
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
TIRE,FRONT (BATTLAX ADVENTURE
55110-28K00
|
$344.61 | ||
|
Available to order. Add to View Price |
|||
|
#18
WEIGHT,WHEEL BALANCE (5GRAM)
55411-11J00
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
