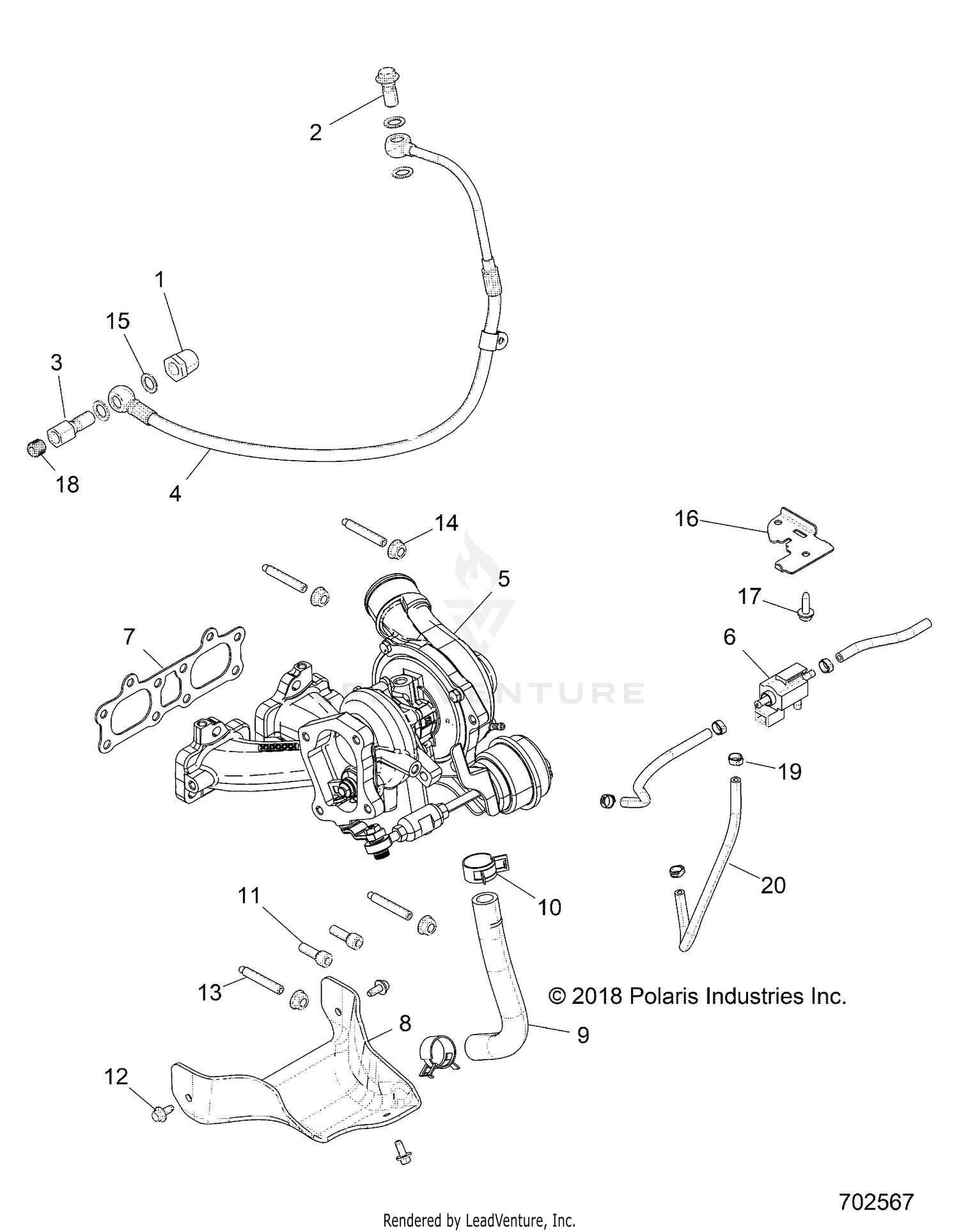

Engine, Turbo Charger Mounting - Z19vpl92ak/bk/ar/br/am/bm (702567) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG,ADAPTER,W/O-RING,M20X1.5
7052689
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT-BANJO,M12X1.5
2522034
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-BANJO,M12X1.5-M10X1
7052693
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM-OIL LINE,SUPPLY
2521645
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-TURBO,588
-------
|
|||
|
Unavailable |
|||
|
#6
VALVE,ELECTRONIC BOOST CONTROL
4011285
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET-EXHAUST SEAL
3610184
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SHIELD-HEAT,TURBO,LOWER
5266198
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE-DRAIN,FORMED
5415727
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP-HOSE,SPRING,24MM
7081825
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-M8X1.25X25,HX/SOC/SEMS-Y
7517322
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCR-HHSEMS-M6X1.0X12 A286,LOCK
7520291
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STUD-M8X1.25X45,SOCKET
7520377
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Nut
7546805
Superseded by 7547014
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-COPPER SEALING
7556937
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRKT-BOOST CONTROLLER
5261420
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLUG-HEX SOCKET,1/4X18,SEALANT
7518835
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP-OETIKER,16700005-10.0
7082109
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LINE-BOOST,3/16 ID,600 CM
8450153
Superseded by 8450153-600
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
