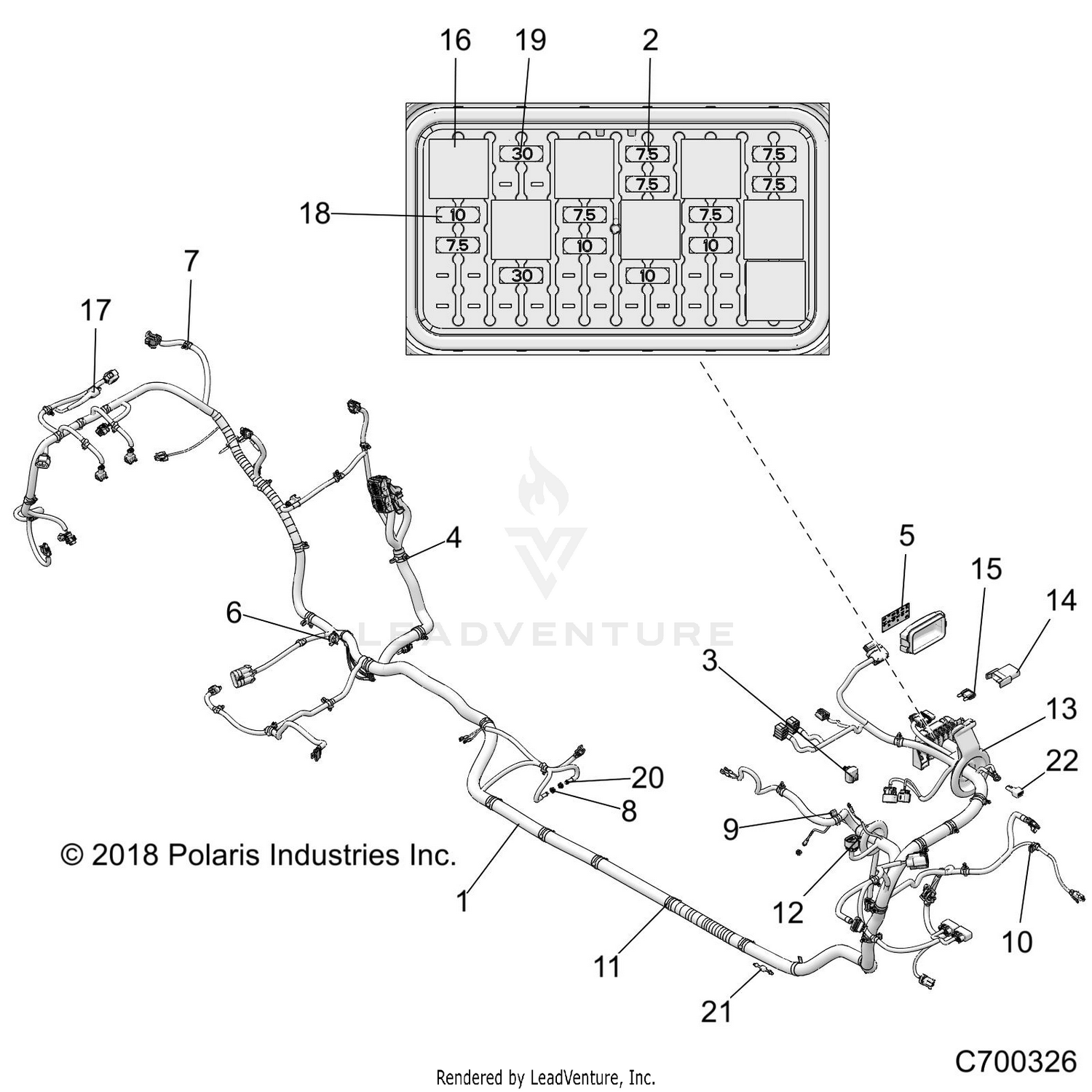

Electrical, Wire Harness - Z19vpl92ak/ar/am (c700326) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHAS,RZR,MP,T,LV,72
2414126
|
$1,949.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE-7.5 MINI BLADE (BROWN)
-------
|
|||
|
Unavailable |
|||
|
#3
COVER-DIAGNOSTIC,W/CLIP
-------
|
|||
|
Unavailable |
|||
|
#4
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL-FUSE BOX
7189441
|
|||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-OMEGA,CABLE/15-18MM DIA
7082481
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLIP-ROUTING
7082068
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CLIP-ROUTING,DIN BOX
7082020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET-65MM,BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET-DASH FUSE CTR,RZR
5416469
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER-FUSE,SEALED
4018207
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE-MAXI,50A
4017180
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT-TMAP
4016101
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
LED-PANEL MNT,12V,BLUE
2413217
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DIODE-6AMP,1/4,3/16 TERM
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DIODE-6 AMP
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
