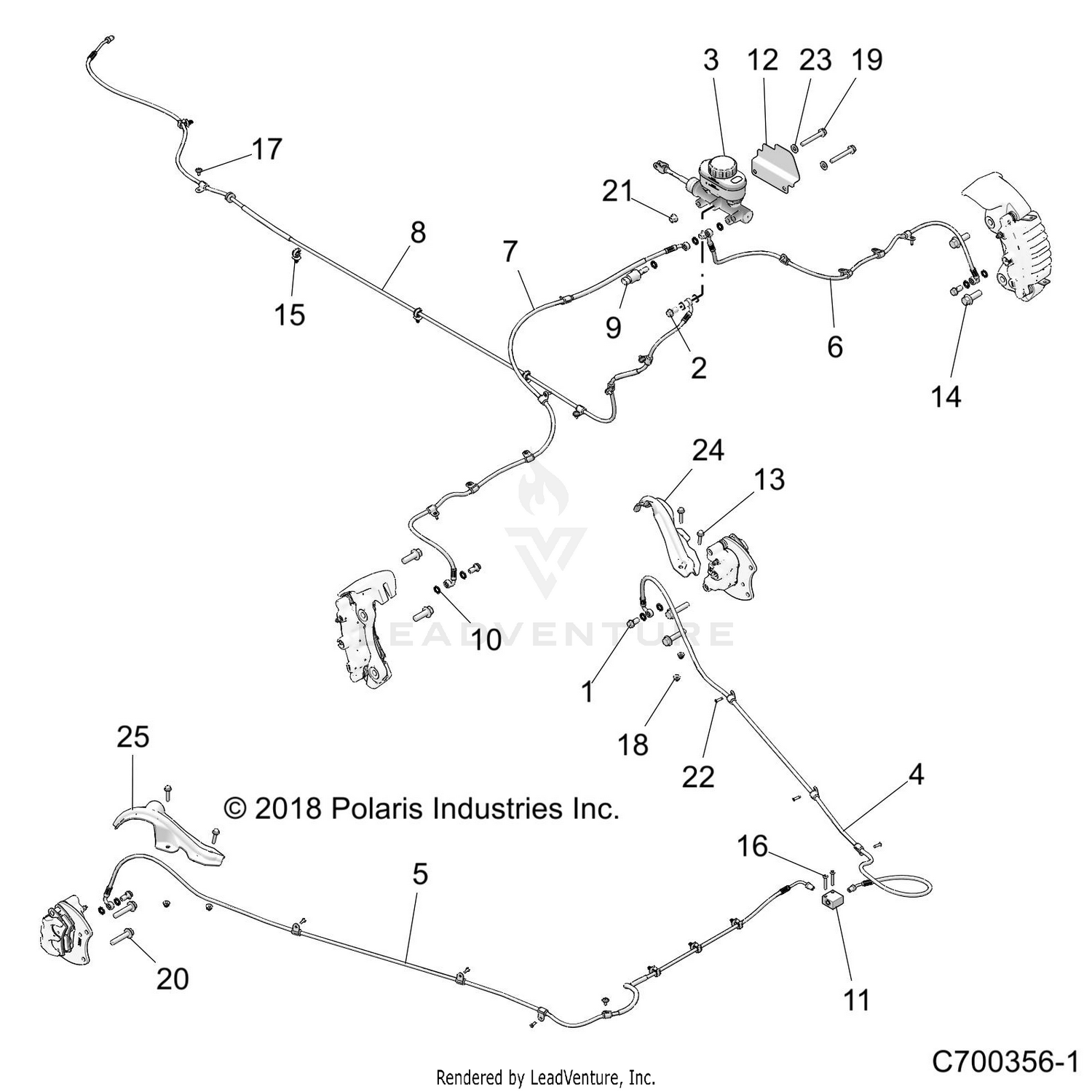

Brakes, Brake Lines And Master Cylinder - Z19vpl92ak/bk/ar/br/am/bm (c700356-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, BANJO
1910499
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT-BANJO, 10MM X 1.25-6G
1910958
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-TANDEM MASTER CYL,13-16
1913223
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LINE-BRK,RL,67,20F,90SB75G,316
1913310
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LINE-BRK,RR,80,90F,90SB-75,30°
1913311
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINE-BRK,FL,40,20B,90SB165,235
1913312
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LINE-BRK,FR,53,70B,90SB15,234°
1913313
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LINE-BRK,MCT,93.1,70B,20F,250°
1913076
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH, BRAKE, DOUBLE, SEALED
4014262
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, STAT
5413212
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FITTING-TEE,BRAKE
7052293
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIELD, MASTER CYLINDER
5259049
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-HXFLM6X1.0X30 8.8 RIE
7518530
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-M12X1.75X35 HXFL ZOD P30
7520123
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP-NYLON,C,FIR-TREE
7662310
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
7512025
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
7518176
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
7519298
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX FLANGE
7518559
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
RIVET
7621323
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
7555954
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
GUIDE,RZR,72,RL
5455263
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUIDE,RZR,72,RR
5455264
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
