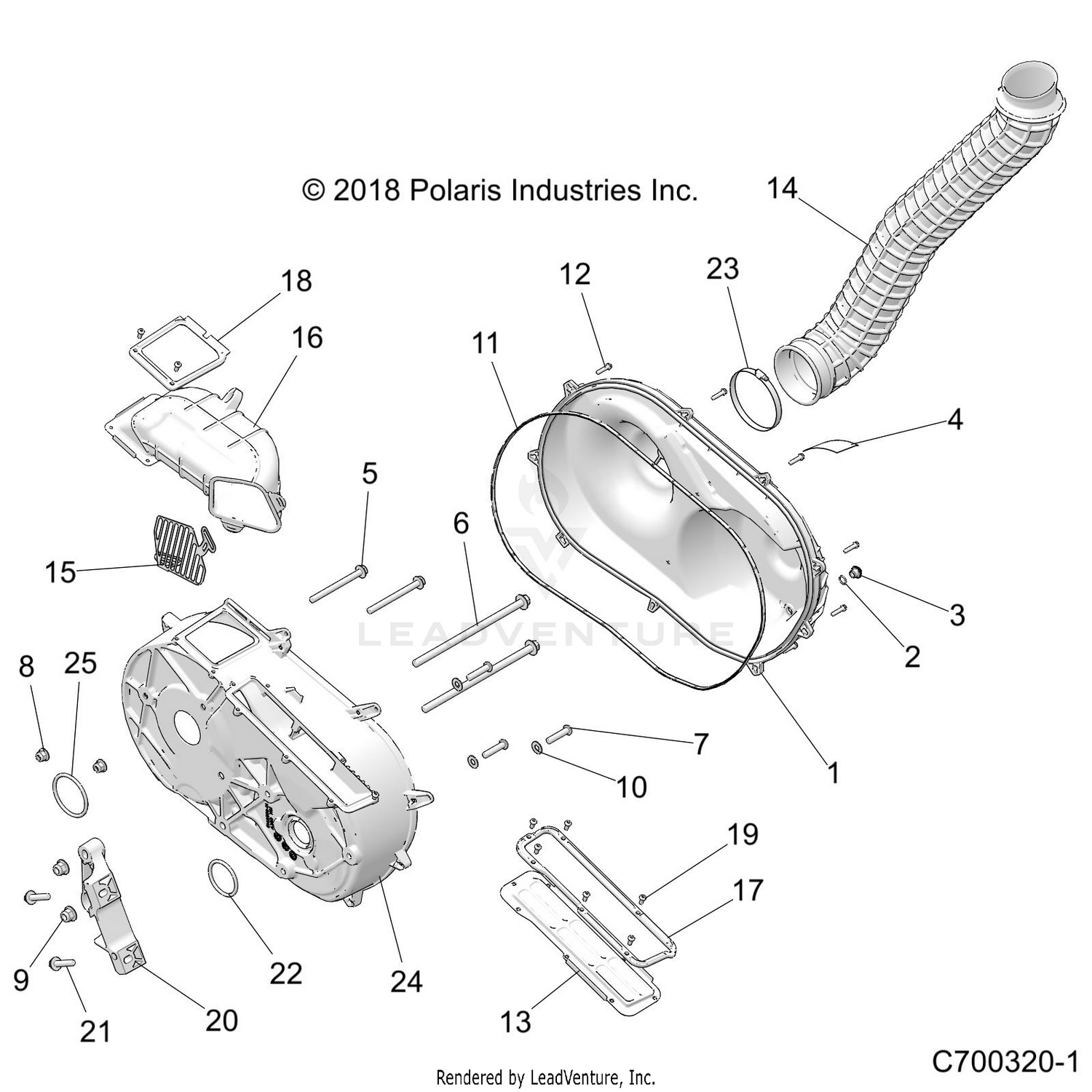

Drive Train, Clutch Cover And Ducting - Z19vpl92ak/bk/ar/br/am/bm (c700320-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-COVER,CLUTCH,OUTER
2637068
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING-0.489X0.629X0.070,EPDM
5416606
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG-DRAIN,9/16-18,PP
5454915
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DECAL-BELT,WARNING/CHECK
7177469
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-HXFL-M10X1.5X115 8.8 ZY3
7518526
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-M12X1.75X250 8.8 HX/FL ZOD
7518970
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-TXBH-M10X1.5X45 8.8ZOD P30
7520323
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT-M10X1.5 HFN NYLOC ZOD
7547423
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WSHR-10.5X22.0X1.6 SPC
7556155
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL-OUTER CLUTCH COVER
5416207
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-HXFLG,M6X1.0X25,10.9
7519754
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER-INLET
5416440
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUCT-CLUTCH,INLET
5416743
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRKT-SCREEN,BELT
5266524
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE-CLUTCH,AIR OUTLET
5416489
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE-INLET CLUTCH DUCT SEAL
5633909
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
MOUNT-OUTLET DUCT
5633826
|
$11.99 | ||
|
Unavailable |
|||
|
#19
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BRKT-TRANSJOINT,MAG,MACH
5139822
|
$41.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-HXFL-M10X1.5X1.5 8.8 ZY3
7518531
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING-2.25X2.625X.21,FKM
5416417
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP-WORM DRIVE,.44WX4.25 DIA
7080813
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
COVER-CLUTCH,INNER,MACH
5142589
|
$262.99 | ||
|
Unavailable |
|||
|
#25
O-RING
5415647
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
