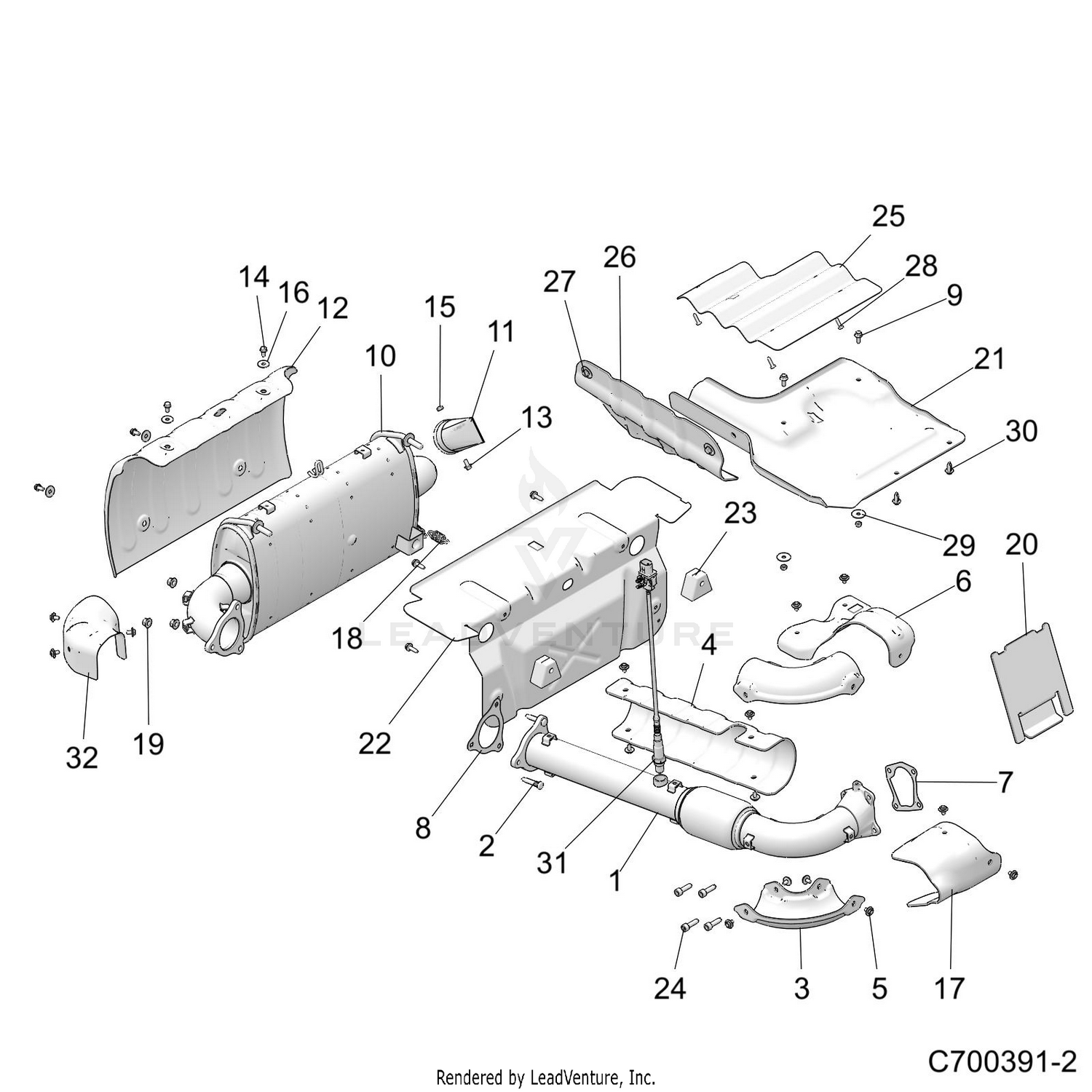

Engine, Exhaust System - Z19vpl92bk/br/bm (c700391-2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-HEADPIPE,TURBO,EVAP
1263230
|
$784.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STUD-M8X1.25X40 660A SS,LOCK
7520290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIELD-HEAT,HEADPIPE,FRONT
5264104
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIELD-HEAT,HEADPIPE,RR,INNER
5266196
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-HHSEMS-M6X1.0X10 A286,LOCK
7520291
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD-HEAT,TURBO,UPPER
5260459
Superseded by 5266197
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD-HEAT,TURBO,UPPER
5266197
|
$49.99 | ||
|
Unavailable |
|||
|
#7
GASKET-EXHAUST
5812640
|
$47.99 | ||
|
Unavailable |
|||
|
#8
GASKET-EXHAUST,3 BOLT
5814340
|
$5.49 | ||
|
Unavailable |
|||
|
#9
SCR-HXFL-M6X1.0X16 8.8 ZPB
7518591
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-SILENCER
1263164
|
$984.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WELD-SPARK ARRESTOR
1262390
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIELD-SILENCER
5262943
Superseded by 5263543
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-HXFL-M6X1.0X12 10.9 ZPC
7517257
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-1/4-20X1/2,TFM HW-M
7518490
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-HEX-M6X1.0 8 SPC
7547120
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-.28 X .81 X .06, ST-M
7555935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIELD-HEAT,TURBO,OUTLET
5260461
Superseded by 5266199
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIELD-HEAT,TURBO,OUTLET
5266199
|
$49.99 | ||
|
Unavailable |
|||
|
#18
SPRING-EXHAUST S.S. SHOTPEENED
7043727
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HXFL-M8X1.25 A493 EM6340
7547803
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIELD-ACCESS PANEL
5814648
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIELD-BOX,FRONT
5814245
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIELD-REAR,STAINLESS
5266576
|
$38.99 | ||
|
Unavailable |
|||
|
#23
MNT-ISOLATOR
5450115
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-SH-M8X1.25X25 A286,LOCK
7520277
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIELD-FOIL,ACCESS PANEL
5262942
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SHIELD-ENGINE
5814284
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHIELD-ENGINE
5266195
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SCR-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCR-10X 5/8 TX PN PLST-243
7518577
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-.281X1.00X.051
7556329
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SENSOR-WIDE BAND LAMBDA
2413317
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIELD-SILENCER INLET
5264915
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
