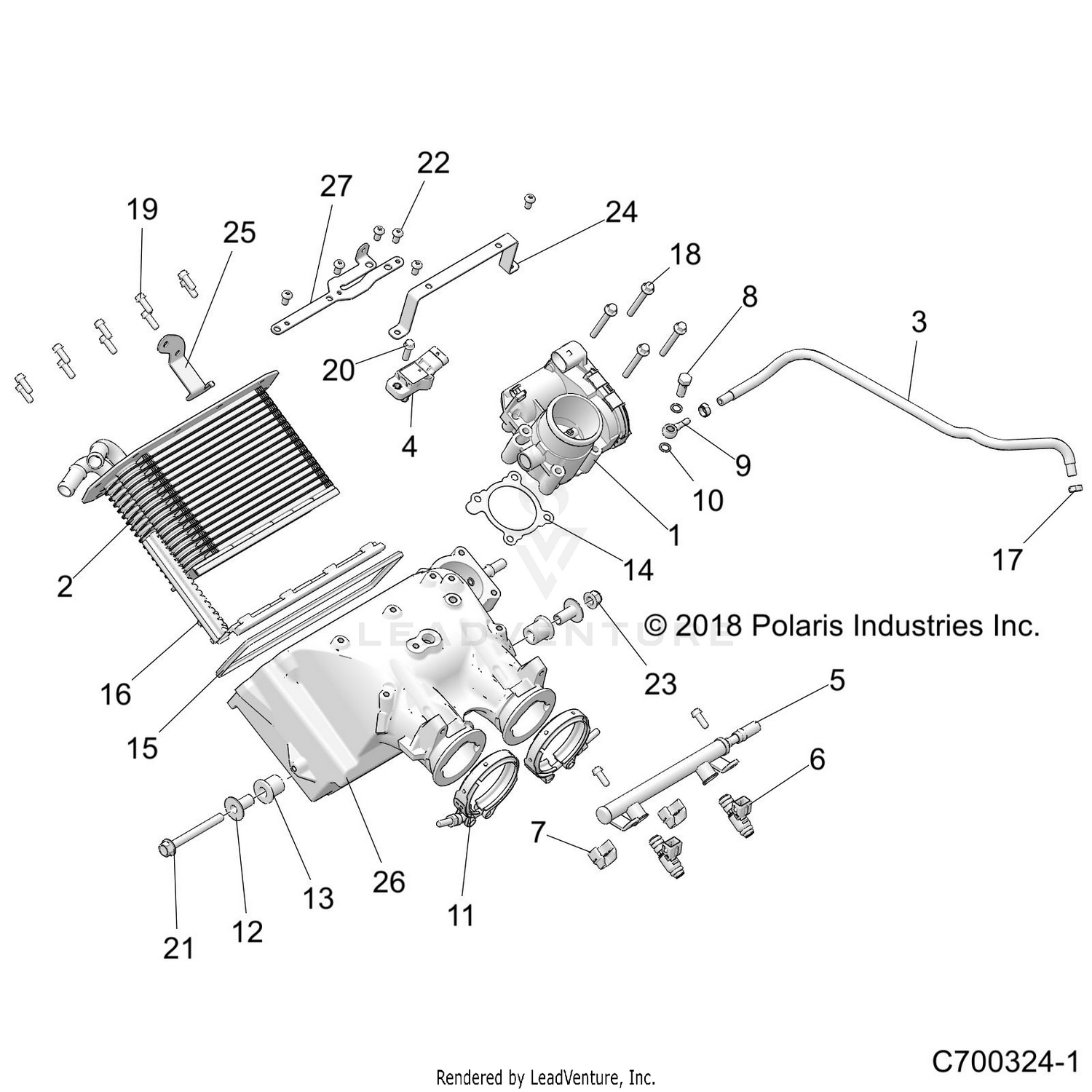

Engine, Air Intake Manifold - Z19vpl92bk/br/bm (c700324-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE-ETC,46MM
1204455
|
$664.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CORE-LCAC
1240930
|
$534.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-HOSE REFERENCE,48CM
1241347
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR-TMAP,3BAR
2413095
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-RAIL,FUEL,4BAR,NR
2522004
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
INJECTOR-FUEL,570G,3.8BAR
2521914
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP-INJECTOR,MM
2521515
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-BANJO,M8X1
2521519
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FITTING-BANJO,M8
2521520
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-M8,AL
2521527
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP-VBAND,INTAKE
3022888
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER-BUSHING
3022994
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ISOLATOR
5415637
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET-ETC
5813735
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL-LCAC,TOP
5814277
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL-LCAC,LOWER
5814370
Superseded by 5814884
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP-OETIKER,16700005-10.0
7082109
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCR-HXFL-M6X1.0X16 8.8 ZY3
7518548
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCR-HXFL-M6X1.0X20 8.8 ZY3
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BRKT-MNT,INJECTOR HARNESS,BLK
5260975-329
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRKT-MOUNT,FUEL LINE,BLK
5261651-329
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
ASM-MANIFOLD,VBAND,EVAP
3023522
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, HARNESS
5262111
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
