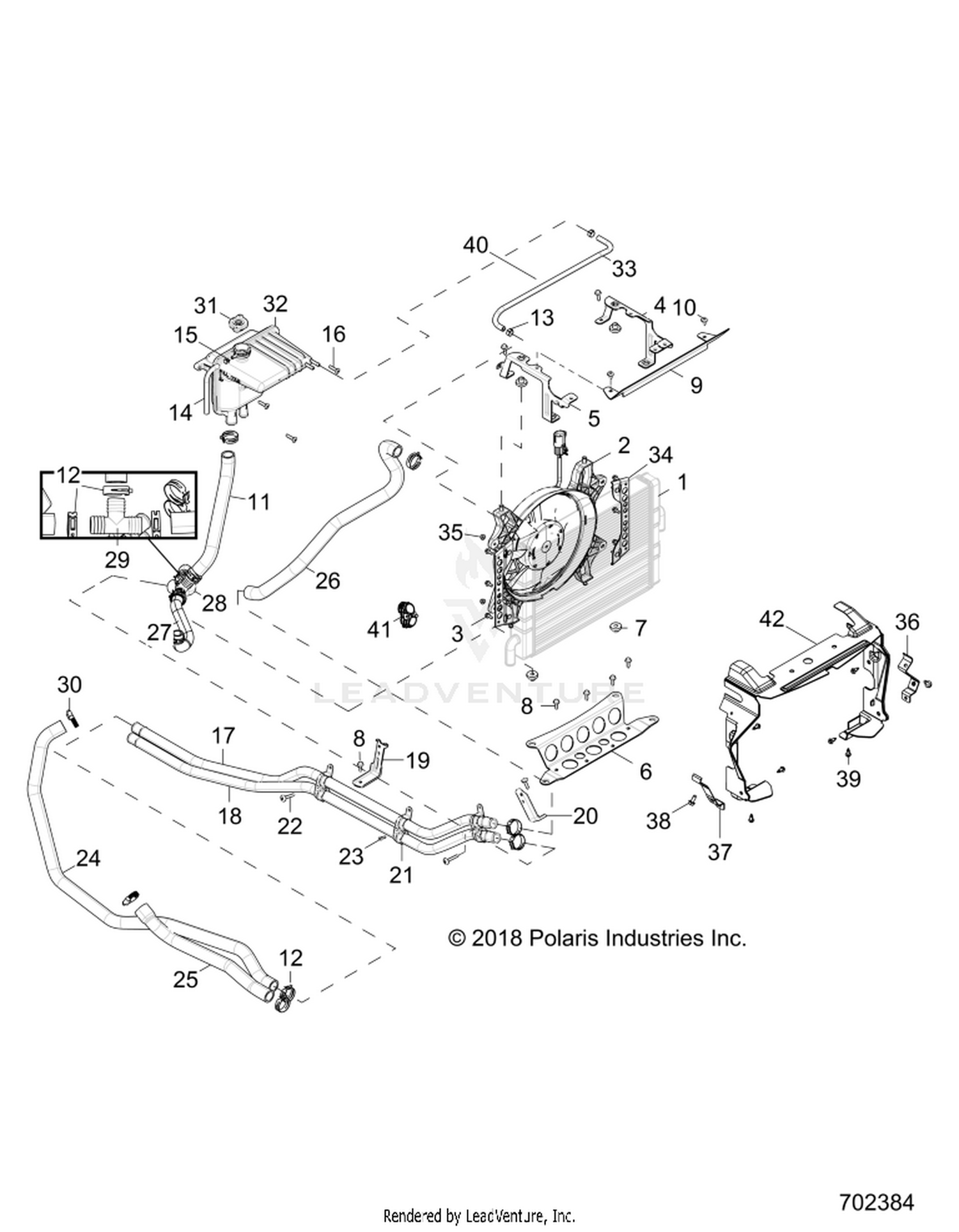

Engine, Cooling System - Z19vpl92ak/bk/ar/br/am/bm (702384) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-CORE,RADIATOR
1241117
|
$544.99 | ||
|
Unavailable |
|||
|
#2
ASM-FAN,BRUSHLESS,500W
2414286
|
$534.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCR-HXFL-M6X1.0X16 8.8 ZPB
7518591
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT-MOUNT,RADIATOR,LH,ECOAT
5263170-329
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRKT-MOUNT,RADIATOR,RH,ECOAT
5263171-329
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRKT-MOUNT,RADIATOR,ECOAT
5266527-329
|
$114.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GROMMET-FLANGED,.36X.56X1.06
7052028
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SHROUD-RADIATOR,UPPER
5452630
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-M6X1X16 TR/TX-M
7518936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE-OUT,SURGE TANK TO TEE
5415443
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRINGBAND-CLAMP 35/12,BLK
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE-IAC,SHORT
5813672
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP-HOSE,(7/16)
7080236
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE-COOLANT,1",MP
5141784
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE-COOLANT,1",MP
5141785
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRKT-COOLANT TUBE,BLK
5259433-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRKT-COOLANT TUBE,ECOAT
5265342-329
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET-COOLANT TUBE
5451221
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-M6X1X40,TR/TX-BLK
7519001
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCR-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE-ENG OUTLET,REAR
5414530
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE-ENG INLET,REAR
5414976
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE-RADIATOR,UPPER
5416028
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE-RADIATOR,LWR,FRONT
5416030
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE-RADIATOR,LWR,REAR
5415446
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CONNECTOR-TEE,1",1",1" BARBED
7052373
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP-PRESSURE
1240300
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WELD-SURGE TANK,DUAL
1240943
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE
8450120-61
Superseded by 8450120-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WELD-BRKT-MNT,FAN,ECOAT
1241122-329
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRKT-BUMPER MNT,FR,UP,LH,BLK
5264780-329
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRKT-BUMPER MNT,FR,UP,RH,BLK
5264781-329
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
CLIP-COOLANT ROUTING
5453767
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SHROUD-RADIATOR
5454422
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
