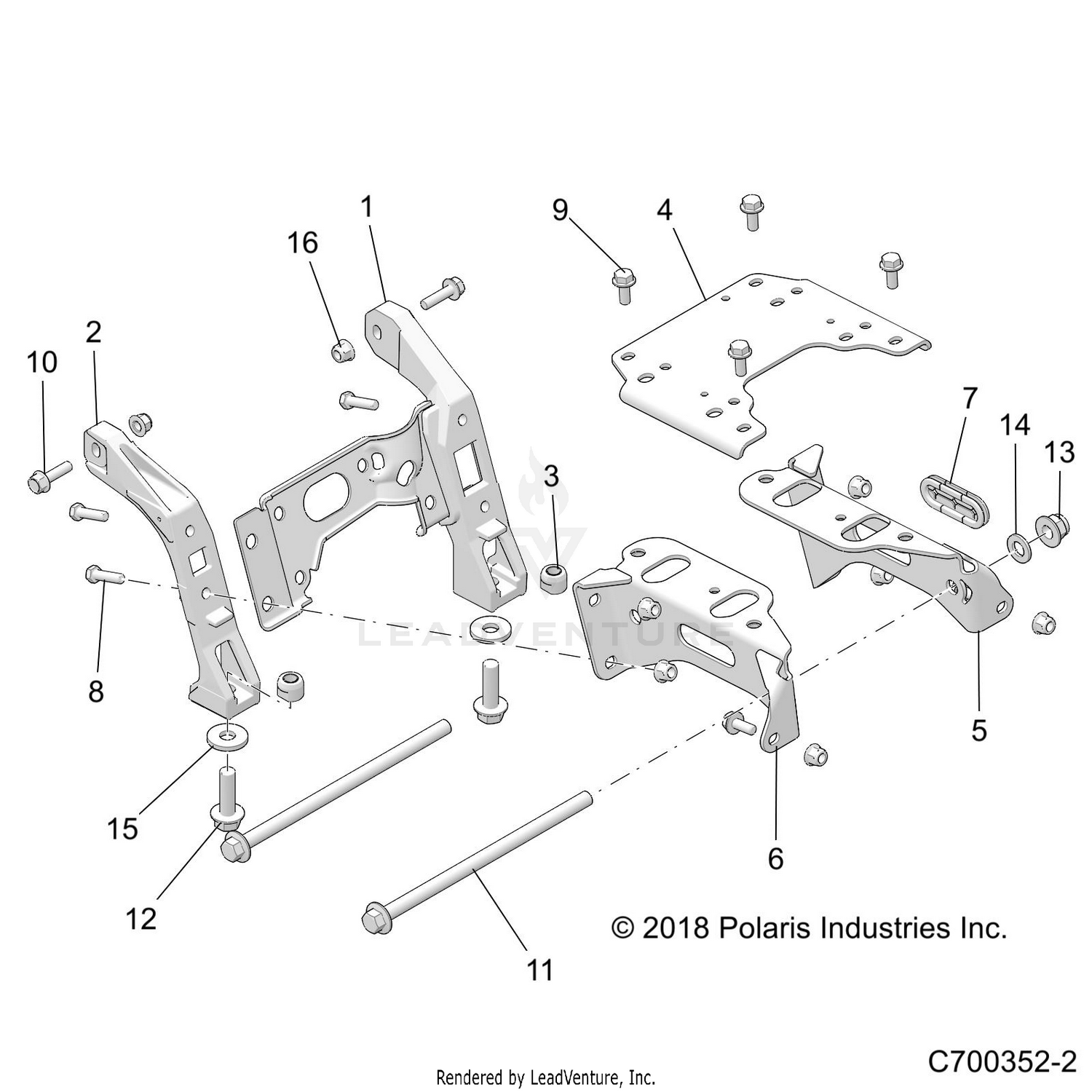

Chassis, Mounting, Front Gearcase - Z19vpl92ak/bk/ar/br/am/bm (c700352-2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-CHASSIS,STEERING,ECOAT
1024717-329
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STEERING RACK MNT,CAST,RH,BLK
5142634-329
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
M12X1.75,NUT-MACHINED
5142635
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT-WINCH MOUNT PLATE,BLK
5264731-458
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRKT-FRONT DRIVE MNT,LH,BLK
5264732-458
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRKT-FRONT DRIVE MNT,RH,BLK
5264733-458
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET-ROUTING
5454582
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-HH-M8X1.25X30 8.8 ZY3
7517924
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-HXFL-M8X1.25X30 10.9 ZPB
7518884
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-HXFL,M12X1.25X230 10.9 SPC
7520771
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-HXFL-M12X1.75X40 10.9 NYL
7521059
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HXFL-M12X1.25 10 SPC NYL
7547860
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WSHR-13.0X24.0X2.5 ZPC
7556287
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WSHR-32X12X4,HARD,ZFB
7557174
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
