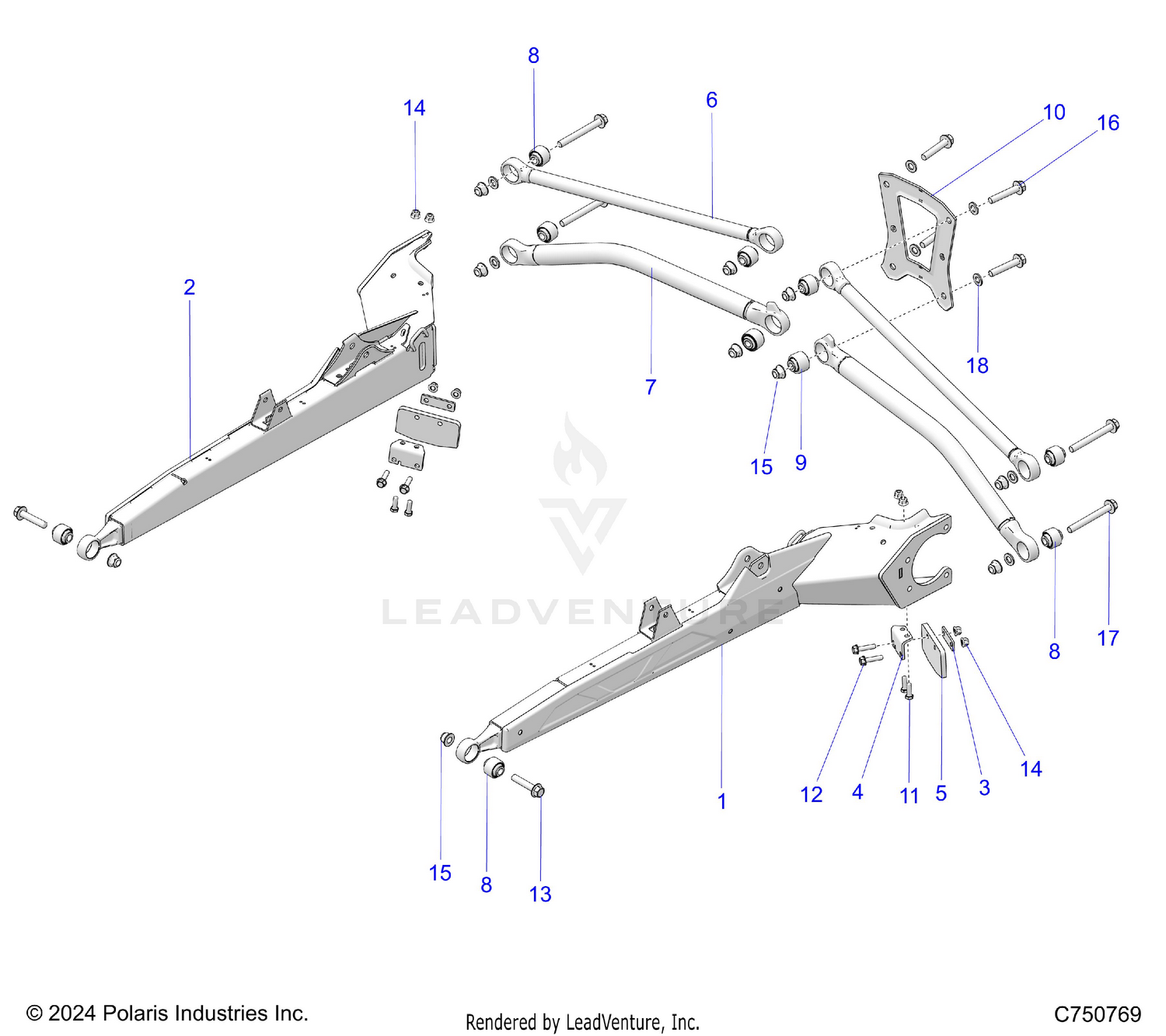

Suspension, Rear Trailing Arms And Mounting - Z25x4e92a4/b4 (c750769) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-TRL ARM,LH,BLK
1544374-458
|
$479.99 | ||
|
Unavailable |
|||
|
#2
WELD-TRL ARM,RH,BLK
1544375-458
|
$479.99 | ||
|
Unavailable |
|||
|
#3
BRKT-BACKER,SCRAPER,M.BLK
5265115-458
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOUNT-SCRAPER,BLK
5267029-458
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCRAPER-DEBRIS,BLK
5454591-070
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-RADIUS ROD,UPR,BLK
1544089-458
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-RADIUS ROD,LWR,STRT, BLK
1544813-458
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING-SPHERICAL
7082253
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING-SPHERICAL,LOW MISALIGN
7082283
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE-REAR,BOLT BRACE,BLK
5265395-458
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-M8X1.25X25 8.8 HEX ZOD
7518952
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-HXFL-M8X1.25X35 8.8 ZODv
7519052
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-HXFL-M12X1.5X60 10.9 ZOD
7519138
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-M12X1.5, FLG, NYLOC-OLIVE D
7547334
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCR-HXFL-M12X1.5X65 10.9 ZOD
7520477
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-HXFL-M12X1.5X105 10.9 ZOD
7520479
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WSHR-13.0X24.0X2.5 ZPC
7556287
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
