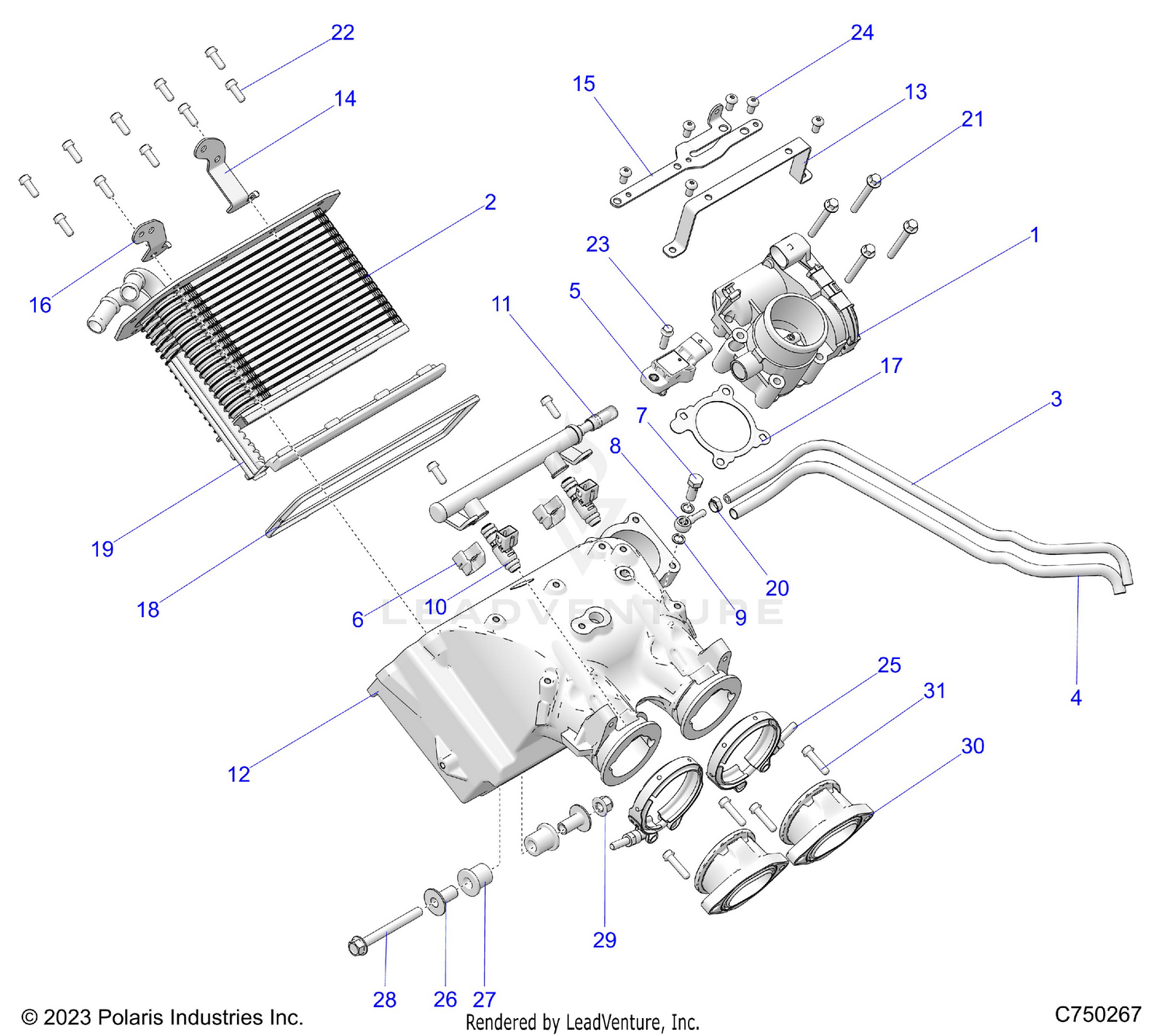

Engine, Air Intake Manifold - Z25x4e92a4/b4 (c750267) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE-ETC,46MM
1204455
|
$664.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CORE-LCAC
1240930
|
$534.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-HOSE REFERENCE,48CM
1241347
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LINE-BOOST,3/16 ID,25CM
8450153-48
|
|||
|
Unavailable |
|||
|
#4
WRAP-FLEXFIT 2115,8MM,45CM
5522158-45
|
|||
|
Unavailable |
|||
|
#5
SENSOR-TMAP,3BAR
2413095
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-INJECTOR,MM
2521515
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-BANJO,M8X1
2521519
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FITTING-BANJO,M8
2521520
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-M8,AL
2521527
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
INJECTOR-FUEL,570G,3.8BAR
2521914
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING,INJECTOR
5417103
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ASM-RAIL,FUEL,4BAR,NR
2522004
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
MANIFOLD-MACH,VBAND
5142566
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRKT-MNT,INJECTOR HARNESS,BLK
5260975-329
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRKT-MOUNT,FUEL LINE,BLK
5261651-329
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, HARNESS
5262111
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRKT-SENSOR,LAMBDA
5267922
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET-ETC
5813735
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL-LCAC,TOP
5814277
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL-LCAC,LOWER
5814884
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP-OETIKER,16700005-10.0
7082109
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW-HXFL-M6X1.0X16 8.8 ZY3
7518548
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP-VBAND,INTAKE
3022888
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER-BUSHING
3022994
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
ISOLATOR
5415637
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
ADAPTER-MANIFOLD,MOLDED
1205320
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-HXFLG,M6X1.0X25,10.9
7519297
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
