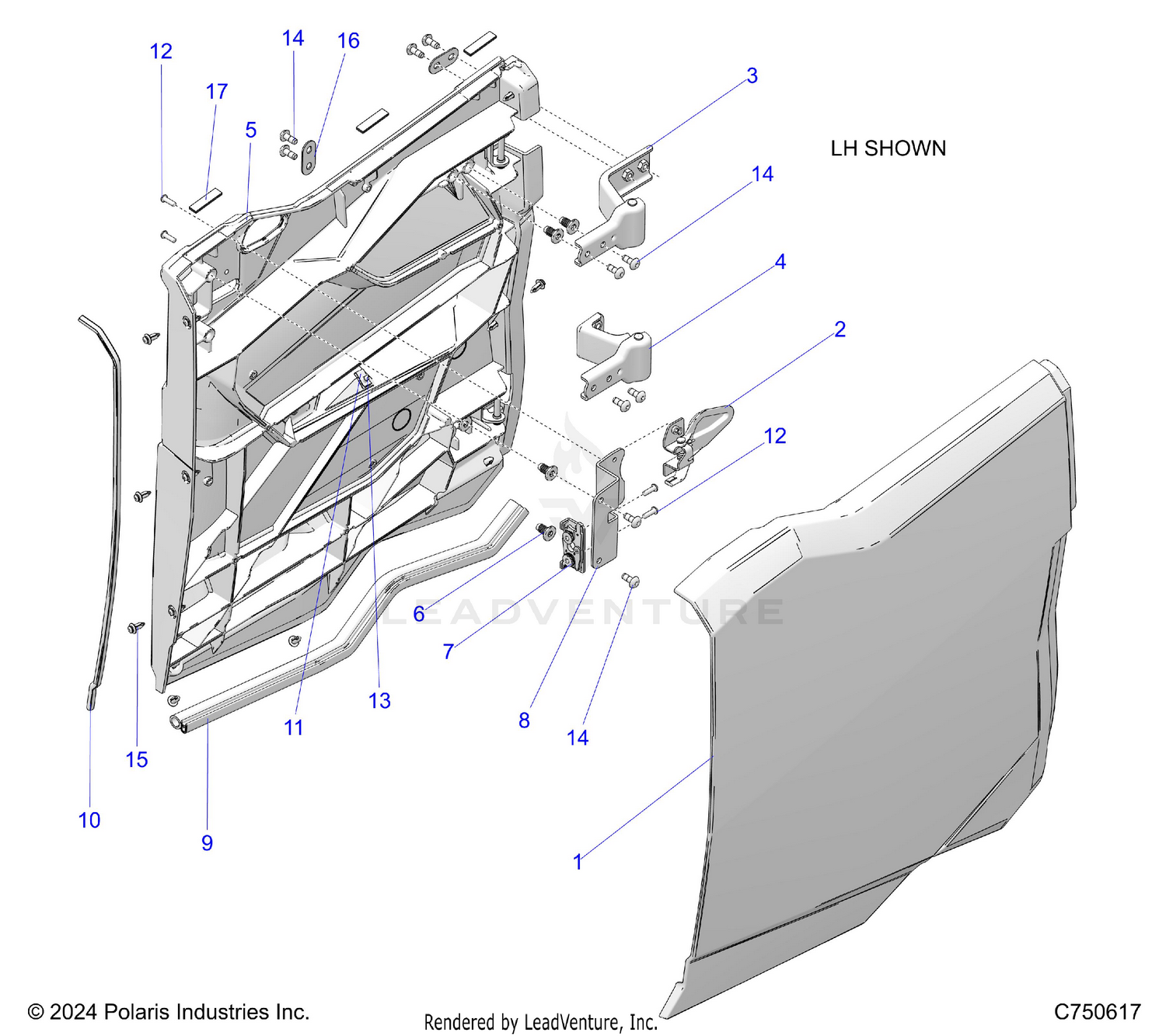

Body, Doors, Rear - Z25x4e92a4/b4 (c750617) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOOR-SKIN,RR,LH,MP,MIC,STM GR
5466491-927
|
$409.99 | ||
|
Unavailable |
|||
|
#1
DOOR-SKIN,RR,RH,MP,MIC,STM GR
5466492-927
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-ACTUATOR,LATCH,LH,MP
2637530
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-ACTUATOR,LATCH,LH,MP
2640459
|
|||
|
Unavailable |
|||
|
#2
ASM-ACTUATOR,LATCH,RH,MP
2637531
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-ACTUATOR,LATCH,RH,MP
2640460
|
|||
|
Unavailable |
|||
|
#3
ASM-HINGE,REAR,UPPER,MP
2639399
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM-HINGE,REAR,LOWER,MP
2639403
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-DOOR,INNER,REAR,MP,LH
2639616
|
|||
|
Unavailable |
|||
|
#5
ASM-DOOR,INNER,REAR,MP,LH
2640394
|
$199.99 | ||
|
Unavailable |
|||
|
#5
ASM-DOOR,INNER,REAR,MP,RH
2639617
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-DOOR,INNER,REAR,MP,RH
2640395
|
$199.99 | ||
|
Unavailable |
|||
|
#6
INSERT-M8X1.25,THREADED
7548153
|
$2.99 | ||
|
Unavailable |
|||
|
#6
INSERT-M8X1.25,THREADED
7548170
|
$2.99 | ||
|
Unavailable |
|||
|
#7
ASM-LATCH,DOOR,LH
2639731
|
$34.99 | ||
|
Unavailable |
|||
|
#7
ASM-LATCH,DOOR,RH
2639732
|
$34.99 | ||
|
Unavailable |
|||
|
#8
BRKT-DOOR LATCH,MNT,LH
5274718
|
$15.99 | ||
|
Unavailable |
|||
|
#8
BRKT-DOOR LATCH,MNT,RH
5274719
|
$15.99 | ||
|
Unavailable |
|||
|
#9
SEAL-BULB,REAR,DOOR,MP,66.7CM
5526552-67
|
$19.99 | ||
|
Unavailable |
|||
|
#10
SEAL-EPDM SPONGE,68.3CM
5526551-68
|
$8.99 | ||
|
Unavailable |
|||
|
#11
CLIP-U SPEED NUT
7081305
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT-M6X1.0X20,PH/TX-OLIVE D
7518616
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
7519997
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE-HINGE,ADJUSTMENT
5274547
|
$10.99 | ||
|
Unavailable |
|||
|
#17
DUAL LOCK-12.7MMX50.8MM
8360250
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
