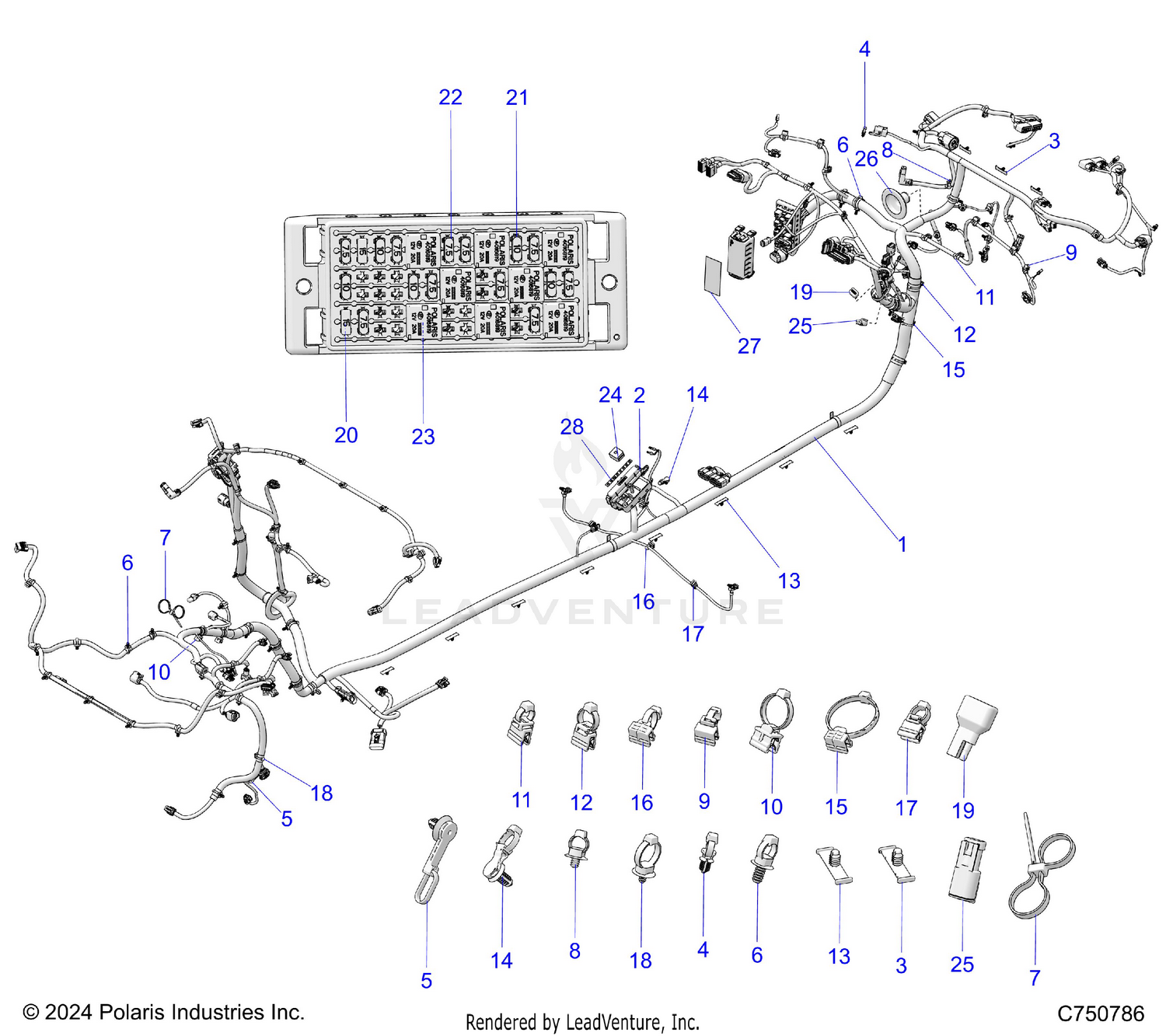

Electrical, Wire Harness, Chassis - Z25x4e92a4/b4 (c750786) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARN-CHASSIS,RZR,T,64,MP
2417235
|
$1,804.99 | ||
|
Unavailable |
|||
|
#2
FUSE-PDM
4017598
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP-FIR,HOLE6.35MM
7082134
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP-ROUTING
7082522
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP-OFFSET,FT6 FIR TREE
7082405
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CABLE-TIE,DIA2.5-34MM,FIR-TREE
7082003
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-EDGE, 1-3mm THICKNESS
7082403
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP-XMAS,6.35MM HOLE,TAPE-ON
7082411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP-FIR TREE,12.5MM OFF,90DEG
7082406
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP-EDGE,3-6MM THICKNESS
7082399
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP-EDGE,1-3MM THICKNESS
7082401
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP-EDGE,1-3MM THICKNESS
7082428
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP-DUCT,OUTLET
7082264
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RESISTOR - EVAP PULLUP - 1 KOHM
2414716
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE-ZCASE, 200A
4018415-200
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DIODE-2 AMP
2415626
|
$18.99 | ||
|
Unavailable |
|||
|
#26
GROMMET - 65 MM, BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
LABEL-FUSEBOX,PROXP
7199862
|
|||
|
Unavailable |
|||
|
#28
LABEL-PDM, PROXP
7199863
|
|||
|
Unavailable |
|||
