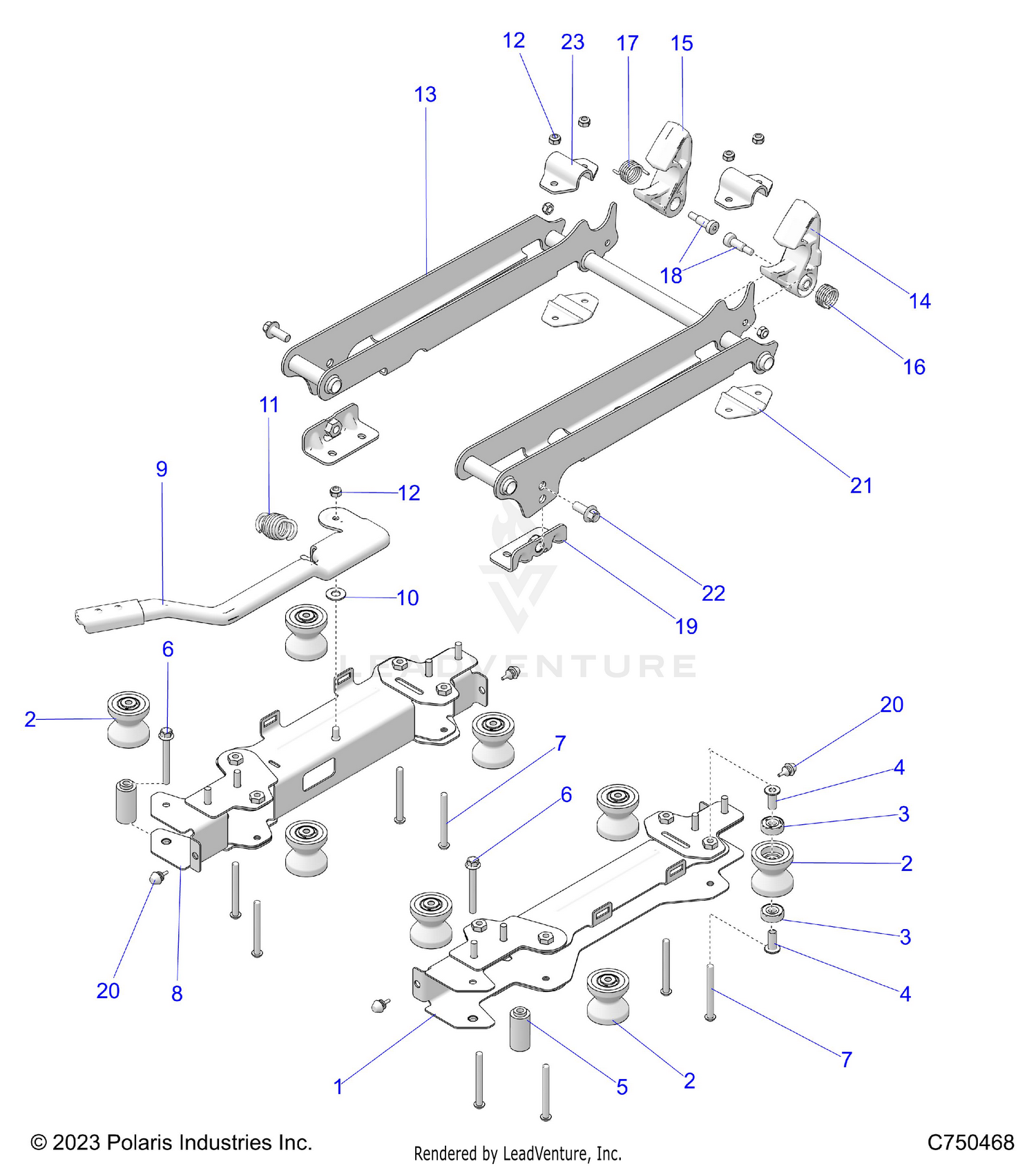

Body, Seat Mounting, Front - Z25x4e92a4/b4 (c750468) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-FRAME,SEAT SLIDER,LH,BLK
2638272
|
$189.99 | ||
|
Unavailable |
|||
|
#2
ASM-V ROLLER,BEARING
2638213
|
$24.99 | ||
|
Unavailable |
|||
|
#2
ASM-V ROLLER,BEARING
2638214
|
$24.99 | ||
|
Unavailable |
|||
|
#3
BEARING-V ROLLER
3515187
|
$4.99 | ||
|
Unavailable |
|||
|
#4
BUSHING-SHOULDER,V ROLLER
5143866
|
$13.99 | ||
|
Unavailable |
|||
|
#5
SLIDER-SPACER
5142332
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-HXFL-M6X1.0X55 8.8 ZOD
7519171
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-TXTH-M6X1.0X60 10.9 ZY3
7527829
|
$4.99 | ||
|
Unavailable |
|||
|
#8
ASM-FRAME,SEAT SLIDER,RH,BLK
2638271
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRKT-SEAT SLIDER LEVER
5267598
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-PLASTIC
5455866
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING-SEAT SLIDER
7045274
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM-RCVR,SEAT,SLIDE/TILT
2639268
|
$104.99 | ||
|
Unavailable |
|||
|
#14
LATCH-HOOK,LH
5456315
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LATCH-HOOK,RH
5456316
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, LATCH, LH
7043989
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, LATCH, RH
7043990
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRKT-MOUNT,TILT ASM,BLK
5265748-329
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUMPER-GROMMET,1/4"
5412465
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSHING-HINGE,SEAT,LWR
5454905
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-HXFL-M8X1.25X20 10.9 ZPB
7517838
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRKT-HINGE,SEAT,UPR,BLK
5265746-329
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
