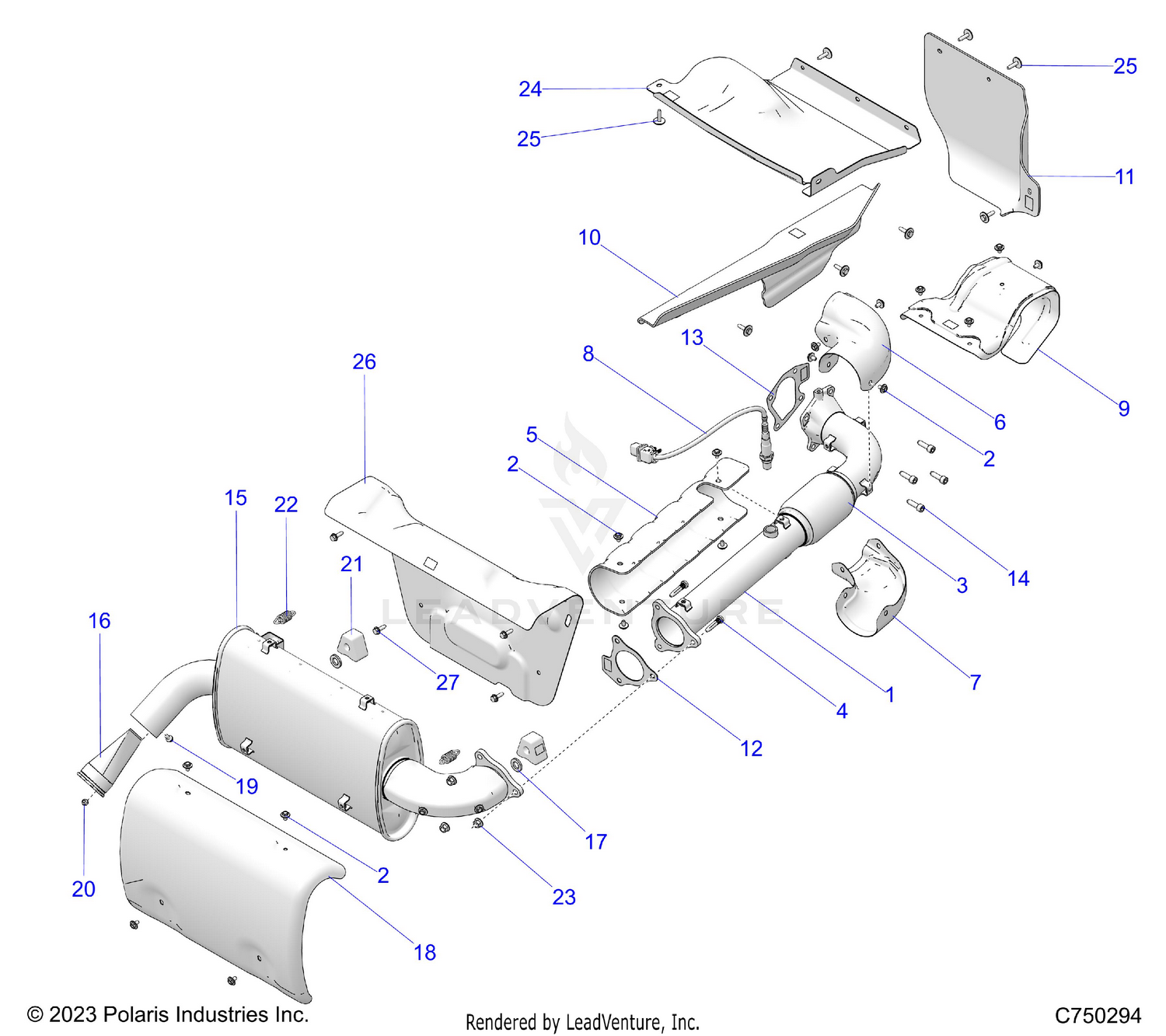

Engine, Exhaust - Z25x4e92a4/b4 (c750294) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-HEADPIPE,TURBO
1263282
|
$784.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-HHSEMS-M6X1.0X10 A286,LOCK
7520291
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-JOINT,FLEX
1262623
|
$84.99 | ||
|
Unavailable |
|||
|
#4
STUD-M8X1.25X40 660A SS,LOCK
7520290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIELD-HEAT,HEADPIPE,RR,INNER
5266196
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD-HEAT,HEADPIPE,FRONT
5266709
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIELD-HEAT,HEADPIPE,FRT,LOWER
5266760
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR-WIDE BAND LAMBDA
2413317
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIELD-HEAT,TURBO,UPPER
5268730
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIELD-HEAT,TURBO,BOX
5274948
|
$104.99 | ||
|
Unavailable |
|||
|
#11
SHIELD-REAR CLOSEOFF
5814784
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET-EXHAUST,3 BOLT
5814963
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET-EXHAUST
5814964
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-SH-M8X1.25X25 A286,LOCK
7520277
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ASM-SILENCER
1263802
|
$934.99 | ||
|
Unavailable |
|||
|
#16
WELD-SPARK ARRESTOR
1262390
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WSHR-14.3X25.4X3.2 SS
7557190
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIELD-SILENCER
5266648
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-HXFL-M6X1.0X12 10.9 ZPC
7517257
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-HEX-M6X1.0 8 SPC
7547120
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
MNT-ISOLATOR
5417101
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING-EXHAUST S.S. SHOTPEENED
7043727
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-HXFL-M8X1.25 A493 EM6340
7547803
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHIELD-BOX,FRONT
5814783
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-HH-M6X1.0X25,ZPB SEMS
7520964
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHIELD-REAR,AL
5272328
|
$59.99 | ||
|
Unavailable |
|||
|
#27
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
