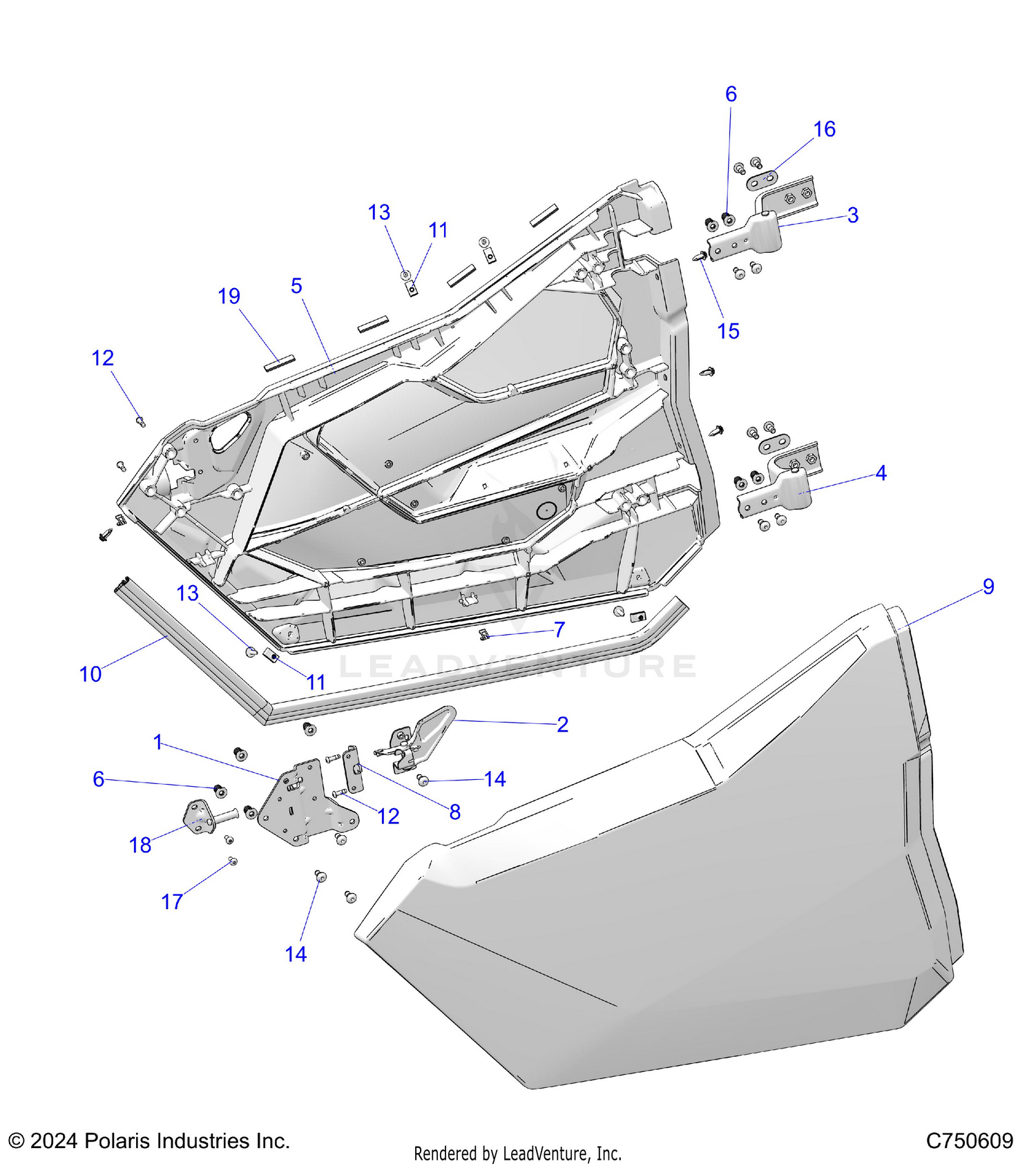

Body, Doors, Front - Z25x4e92a4/b4 (c750609) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-BRKT,DOOR,LATCH,MOUNT,LH
1028866
|
$54.99 | ||
|
Unavailable |
|||
|
#1
WELD-BRKT,DOOR,LATCH,MOUNT,RH
1028867
|
$54.99 | ||
|
Unavailable |
|||
|
#2
ASM-ACTUATOR,LATCH,LH
2637402
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-ACTUATOR,LATCH,RH
2637403
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-HINGE,FRONT,UPPER,MP
2639401
|
$59.99 | ||
|
Unavailable |
|||
|
#4
ASM-HINGE,FRONT,LOWER,MP
2639402
|
$49.99 | ||
|
Unavailable |
|||
|
#5
ASM-DOOR,INNER,FRONT,MP,LH
2639614
|
$214.99 | ||
|
Unavailable |
|||
|
#5
ASM-DOOR,INNER,FRONT,MP,RH
2639615
|
|||
|
Unavailable |
|||
|
#6
INSERT-M8X1.25,THREADED
7548153
|
$2.99 | ||
|
Unavailable |
|||
|
#6
INSERT-M8X1.25,THREADED
7548170
|
$2.99 | ||
|
Unavailable |
|||
|
#7
CLIP-TINNERMAN,D98640-051M
7670136
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ASM-LATCH,DOOR,LH
2639731
|
$34.99 | ||
|
Unavailable |
|||
|
#8
ASM-LATCH,DOOR,RH
2639732
|
$34.99 | ||
|
Unavailable |
|||
|
#9
DOOR-SKIN,FRT,LH,MP,MIC,STMGR
5466489-927
|
$429.99 | ||
|
Unavailable |
|||
|
#9
DOOR-SKIN,FRT,RH,MP,MIC,STMGR
5466490-927
|
$429.99 | ||
|
Unavailable |
|||
|
#10
SEAL-BULB,FRONT,DOOR,LH,MP
5526553
|
$54.99 | ||
|
Unavailable |
|||
|
#10
SEAL-BULB,FRONT,DOOR,RH,MP
5526554
|
$54.99 | ||
|
Unavailable |
|||
|
#11
CLIP-U SPEED NUT
7081305
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-M6X1.0X20,PH/TX-OLIVE D
7518616
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
7519997
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE-HINGE,ADJUSTMENT
5274547
|
$10.99 | ||
|
Unavailable |
|||
|
#17
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WELD-STRIKER
1026523
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUAL LOCK-12.7MMX50.8MM
8360250
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
