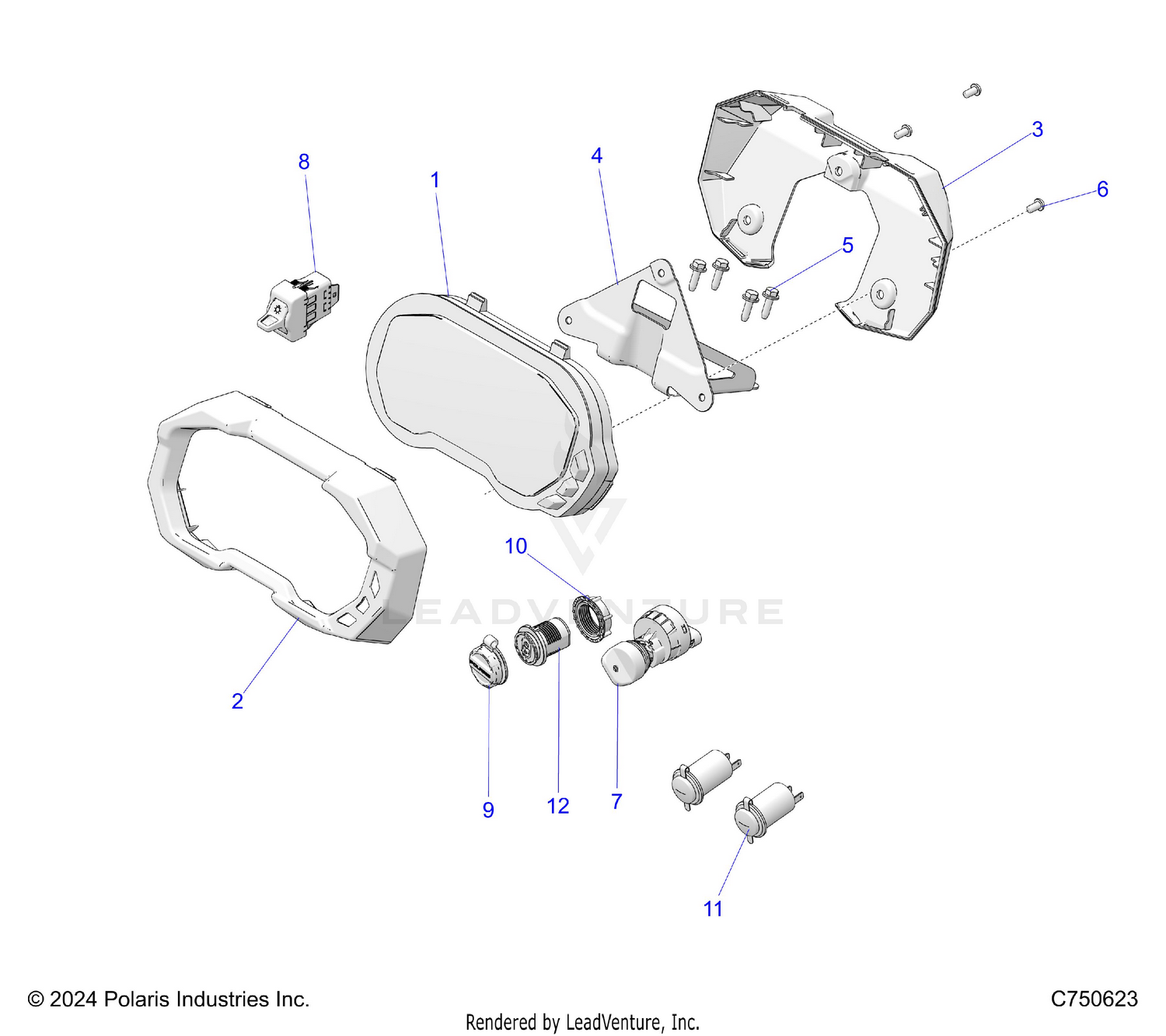

Electrical, Dash Instruments, Controls, & Lighting - Z25x4e92a4/b4 (c750623) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-C4,250K
3286995
|
$529.99 | ||
|
Unavailable |
|||
|
#2
PANEL-DASH,BEZEL,C4,BLK
5459971-070
|
$10.99 | ||
|
Unavailable |
|||
|
#3
BEZEL-GAUGE,REAR
5455957
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT-MOUNT,C4 GAUGE
5266496
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SWITCH-KEY,4 POSITION,SEALED
4016135
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH-KEY,4 POSITION,SEALED
4083545
|
|||
|
Unavailable |
|||
|
#8
SWITCH-HEADLIGHT
4081621
|
$74.99 | ||
|
Unavailable |
|||
|
#9
CAP-CHARGE PORT
5417215
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-CHARGE PORT
5456622
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
RECEPTACLE-POD MNT,12 VOLT
4012393
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ASM-CHARGE PORT,BASE
2415295
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG-HARNESS CHARGE PORT
2415198
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
